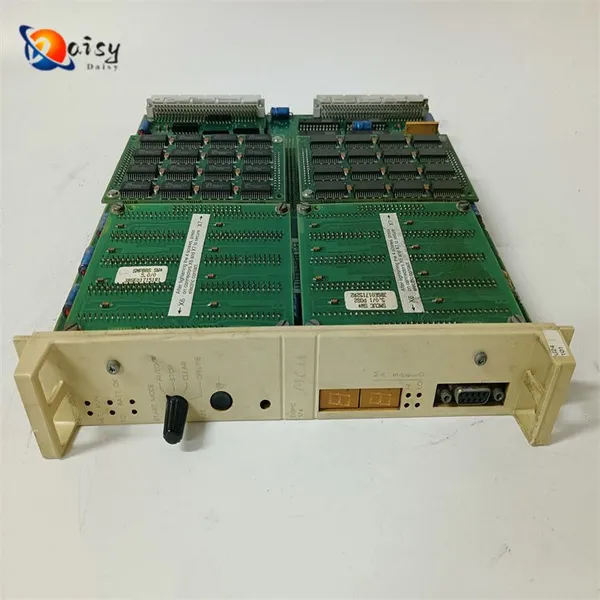

ABB 70EA01B-ES HESG447307R1 | Analog Input Module photo-2
Negotiable MOQ: 1 Acre (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO9001
Installation:
Other
Protection:
Other
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification ISO9001
Installation Other
Protection Other
Housing Other
ABB 70EA01B-ES HESG447307R1 is a power electronic module manufactured by ABB, primarily used for industrial automation and power system control. The following is a detailed explanation of its main technical parameters:

Basic Specifications

  1. Model

  • Main model: 70EA01B-ES

  • Material number: HESG447307R1

  • Product Type

    • Excitation Controller module for generator excitation system control.

    Electrical Parameters

    1. Input Power

    • Voltage: 24V DC (allowable fluctuation range ±20%)

    • Current: Maximum 5mA

  • Output Specifications

    • Voltage: 24V DC

    • Current: Maximum 5A

  • Control Interfaces

    • Supports multiple communication protocols: Modbus RTU/TCP, Profibus DP, Ethernet IP, etc.

    • Provides analog input/output interfaces (e.g., 4-20mA, 0-10V)

    • Supports digital input/output (DI/DO) for status monitoring and control signal transmission.

    Performance Parameters

    1. Control Accuracy

    • Voltage regulation accuracy: ±0.1%

    • Response time: ≤100ms (typical value)

  • Protection Functions

    • Overcurrent Protection

    • Overvoltage Protection

    • Undervoltage Protection

    • Thermal Protection

    • Short Circuit Protection

  • Operating Environment

    • Temperature range: -25°C to +70°C

    • Humidity range: 5% to 95% (non-condensing)

    • Protection level: IP65 (dustproof and waterproof)

    Mechanical Parameters

    1. Physical Dimensions

    • Length: 100mm

    • Width: 80mm

    • Height: 50mm

  • Weight

    • Approximately 500g

  • Housing Material

    • Aluminum Alloy, with good heat dissipation and anti-interference capabilities.

    Application Scenarios

    • Industrial generator excitation control

    • Power system automation

    • Renewable energy generation (e.g., wind and hydropower)

    • Power equipment control in harsh environments such as ships and mines

    Product Tags: ABB 70EA01B , ES HESG447307R1 , Analog Input Module
