ABB UNIGEARZS1 Medium Voltage Air Insulated Switchgear Cabinet

ABB UNIGEARZS1 Medium Voltage Air Insulated Switchgear Cabinet thumbnail-1
ABB UNIGEARZS1 Medium Voltage Air Insulated Switchgear Cabinet thumbnail-2
ABB UNIGEARZS1 Medium Voltage Air Insulated Switchgear Cabinet thumbnail-3
ABB UNIGEARZS1 Medium Voltage Air Insulated Switchgear Cabinet photo-1

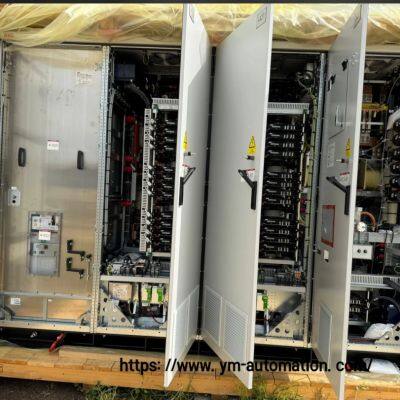

ABB UNIGEARZS1 Medium Voltage Air Insulated Switchgear Cabinet photo-2
ABB UNIGEARZS1 Medium Voltage Air Insulated Switchgear Cabinet photo-3
Negotiable MOQ: 1 Carton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO9001
Installation:
Other
Protection:
Other
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification ISO9001
Installation Other
Protection Other
Housing UPR
Here are the parameters of UNIGEAR ZS1, a medium-voltage air-insulated switchgear from ABB:

1. Rated Voltage

  • 12kV, 17.5kV, 24kV

2. Insulation Level

  • For 12kV: 42/75kV (power frequency withstand voltage/impulse withstand voltage)

3. Rated Main Busbar Current (at 40℃)

  • Up to 4000A

4. Rated Branch Busbar Current (at 40℃)

  • Options: 630A, 1250A, 1600A, 2000A, 2500A

5. Rated Short-Circuit Breaking Current

  • 31.5kA, 40kA, etc.

6. Arcing Fault Withstand Current

  • 31.5kA, 40kA (1s)

7. Normal Service Environmental Conditions

  • Maximum ambient temperature: +40℃

  • Minimum ambient temperature: -15℃

  • Maximum daily average relative humidity: 95%

  • Maximum monthly average relative humidity: 90%

  • Maximum altitude: 1000m

  • Maximum seismic intensity: 8 degrees

8. Protection Class

  • Enclosure protection class: IP4X

  • Internal protection class: IP2X

9. Basic Cabinet Dimensions

  • Height (H): 2200mm

  • Width (W): 500mm, 650mm, 800mm, 1000mm (multiple options)

  • Depth (D): 1310mm, 1620mm, 1810mm (different specifications)

Additional Notes

UNIGEAR ZS1 has different configurations and versions, with specific parameters varying based on actual requirements and application scenarios. For example:=

  • Marine - use UNIGEAR ZS1 switchgear:

    • Ambient temperature range: 0℃ - 45℃

    • Enclosure protection class: Typically IP42

    • Switchgear height: 2500mm (2530mm with pressure relief channels and chimneys)


Product Tags: ABB UNIGEARZS1 , Medium Voltage Air , Insulated Switchgear Cabinet
