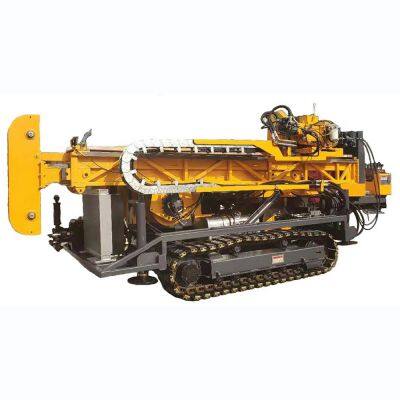

Help CenterFull Hydraulic Core Drilling Rig CR-15
Related Products
-
Multifunction Drilling Rig for Coalbed Methane MTD-65NegotiableMOQ: 1 Set -
Horizontal Directional Drilling Rig S1200NegotiableMOQ: 1 Set
-
Mud Pump BW-320NegotiableMOQ: 1 Set
-
Lightweight Core Drilling Rig, Exploration Sampling Drilling Rig, Small Field Exploration Backpack Drilling RigUS$ 1500 - 1500MOQ: 1 Dozen
-
Portable Core Drilling Rig for Sale GXY-2TUS$ 0.0001 - 0.0001MOQ: 1 Set
Main Technical Parameters of CR-15
Diesel Engine |
Model |
WP6G240E330 (EU Stage IIIA) |
Cummins 6CTA8.3-C240 |
Power/Rated RPM |
176 kW/ 2200rpm |
179KW/2200rpm |
|
Drilling Capacity |
BQ |
2050 m |
|
NQ |
1650 m |
||
HQ |
1350 m |
||
PQ |
950 m |
||
Power head |
Rotation Motor |
Two-speed Hydraulic Motor |
|
Rotation speed RPM |
Three speed change Speed range: 0-1250 RPM |
||
Laterally moving distance of power head |
600 MM |
||
Hydraulic Chuck (PQ) |
Normally closed hydraulically opening, Maximum clamping holding force is 243000 N |
||
Max. Torque |
6200 N·m |
||
Through hole Diameter |
121 mm |
||
Max. Lifting capacity of Spindle |
235 kN |
||
Max. Feeding capacity |
80 kN |
||
Main winch |
Hoisting Speed (single wire) |
0-65 m/min(bare drum) |
|
Hoisting force (single wire) |
120 kN |
||
Steel Wire Diameter |
20-22 mm |
||
Steel Wire Length |
45 m |
||
Wireline winch |
Hoisting Force (single wire) |
15 kN(3372 lbf) (bare drum) |
|
Steel Wire Diameter |
6-8 mm |
||
Steel Wire Length |
2200 m |
||
Mast |
Mast Height |
9.5 m |
|
Drilling Angle |
45º - 90º |
||
Feeding Stroke |
3700 mm |
||
Slippage Stroke |
1000 mm |
||
Lifting force |
25 ton |
||
Thrust force |
9 ton |
||
3m or 6m(9.84feet or 19.68feet) |
|||
Mud pump |
Output volume |
250 L/min |
|
Discharge pressure |
8.0 Mpa |
||
Foot Clamp |
Clamping Scope |
55.5-118 mm through hole Ф165mm |
|
Others |
Weight |
10.50 ton |
|
Transport Dimensions (LxWxH ) |
5880×2240×2480mm |
||
Chassis type |
Steel Crawler |
||
About us
We are a professional supplier of core drilling rigs in China.
We supply spindle type core drilling rigs and all hydraulic core drilling rigs with the drilling capacity from 100 meters to 4200meters, mud pumps and drilling equipment can be supplied as well.
Service
Shipping time depends on the destination.
After we ship the goods, we will email you the shipping information, as well as tracking details.
The goods will be delivered by the most reasonable way for delivery.
Warranty and After-sales services:
1. All of our drilling rigs are provided warranty period and after-sales services, pls contact us for details.
2. We offer life-long technical support to our drilling equipment, please contact us freely if you have any question to our drilling equipment you received, we will tell you how to solve the problem by email or phone.
Feedback:
1. Therefore, your feedback is extremely important to us, please leave good feedback to us if you get satisfied with our goods and service
2. We care about our valued customers, and will always try to help you
