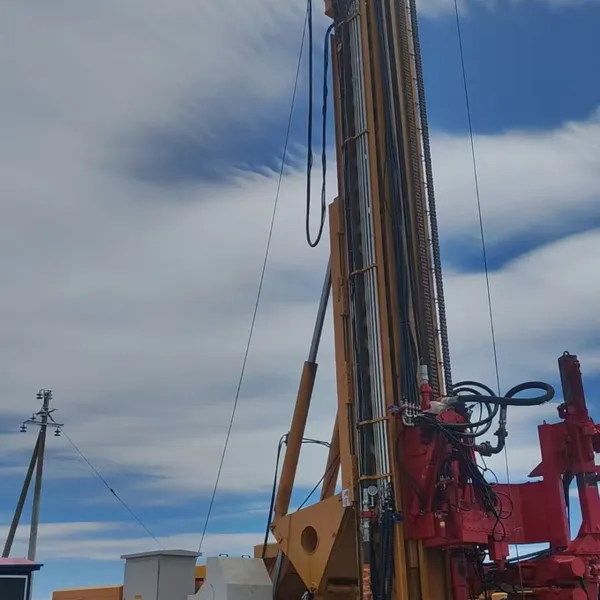

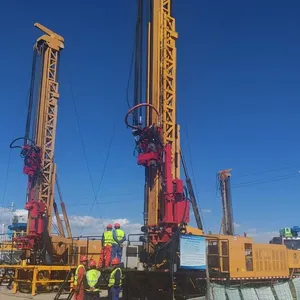

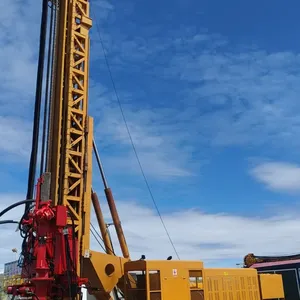

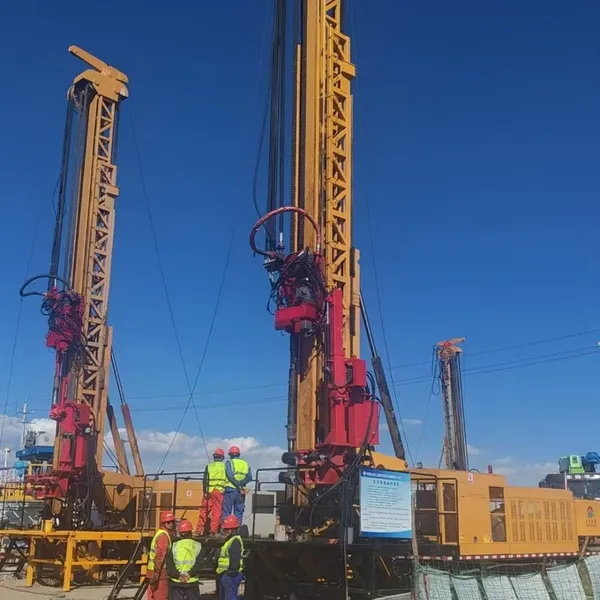

The MTD-65 multifunctional drilling rig adopts full hydraulic drive, top driving power head, telescopic mast, and self-propelled crawler. It is an efficient drilling rig mainly used for coalbed methane drilling. This drilling rig can be constructed using various methods such as air hammer impact drilling, gas reverse circulation drilling, and high-pressure mud drilling. Satisfied diverse construction needs for various geological conditions.
Main Technical Features:
The drilling rig meets various construction techniques and drilling methods, mainly including the following:
(1) Horizontal branch well drilling method for coalbed methane.
(2) Air down the hole hammer drilling method.
(3) High pressure mud drilling method.
(4) Gas reverse circulation drilling method.
Main Technical Parameters
Power |
290-310KW |
290-310KW/2100rpm×1 WEICHAI power |
Drilling Capacity |
φ89 mm×9.6m |
2500 m |
φ114.3mm×9.6m |
1800 m |
|
φ127mm×9.6m |
1200 m |
|
Power Head Capacity |
Rotation speed range of spindle |
0- 70,0 - 100 rpm± 0-130,0 - 190 rpm± 0-240,0 - 360 rpm± |
Maximum rotation torque of spindle |
22000N.m（0-70rpm） |
|
Maximum reverse rotation screw-off torque of spindle |
30000 N.m |
|
Spindle through Hole Diameter |
φ60 mm |
|
Power head tilting angle |
0°~80° |
|
Power head feeding stroke |
14 m |
|
Maximum lifting force of power head |
650 KN |
|
Maximum lifting speed of power head |
22 m/min |
|
Maximum feeding force of power head |
200 KN |
|
Maximum feeding speed of power head |
55 m/min
|
|
|
Telescopic mast with double-travel mechanism |
Maximum lifting speed |
0-22 m/min |
Adjustable angle |
0°- 90° |
|
Drilling angle |
30°- 90° |
|
Stroke of upper mast |
7000 mm |
|
Fully extended length of upper mast |
19 m |
|
Shackle clamp device (Optional) |
Maximum screw-off torque |
60000 N.m |
Maximum screw-on Torque |
30000 N.m |
|
Maximum opening hole diameter of anchor Plate |
φ500 mm |
|
Crane (Optional) |
Maximum lifting force (Single rope, empty drum) |
32-50 KN |
Wire rope diameter |
φ10-14 mm |
|
Rope capacity |
120 m |
|
Chassis |
Steel crawler chassis + walking reducer |
FAST:0 - 2 Km/h SLOW:0 - 1 Km/h |
Operator's cabin (Optional) |
Petroleum standard driller's cabin, Drilling instruments and well site monitoring system |
Height 2.5 m The area is over 20 m2 |
Others |
Working dimensions |
9500×3200×19500 mm |
Transportation Dimensions |
13500×3150×3350 mm |
|
Total Weight |
38000 kg |
