Home > Metallurgy, Mineral & Energy > Aluminum > Aluminum Sheet > 3003 2-Bar Aluminum Checker Plate - Corrosion-Resistant & Anti-Slip Tread Sheet

3003 2-Bar Aluminum Checker Plate - Corrosion-Resistant & Anti-Slip Tread Sheet

3003 2-Bar Aluminum Checker Plate - Corrosion-Resistant & Anti-Slip Tread Sheet thumbnail-1
3003 2-Bar Aluminum Checker Plate - Corrosion-Resistant & Anti-Slip Tread Sheet thumbnail-2
3003 2-Bar Aluminum Checker Plate - Corrosion-Resistant & Anti-Slip Tread Sheet thumbnail-3
3003 2-Bar Aluminum Checker Plate - Corrosion-Resistant & Anti-Slip Tread Sheet photo-1
3003 2-Bar Aluminum Checker Plate - Corrosion-Resistant & Anti-Slip Tread Sheet photo-2
3003 2-Bar Aluminum Checker Plate - Corrosion-Resistant & Anti-Slip Tread Sheet photo-3
Negotiable MOQ: 1 Metric Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO9001
Grade:
3000 Series
Color:
Other, As required
Contact Supplier Request Quote Chat Now
Henan TMR Aluminum Industry Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification ISO9001
Grade 3000 Series
Color Other, As required
Technique Other, Rolling, embossing
Application Other, Marine, Industrial, Architectural
Surface Treatment Other, Mill Finish, Anodizing, PE/PVDF, Polished/Brushed, Embossed
Alloy Alloy
Temper O - H112
Transport Package Wooden pallet
Specification Width: 10-2300mm; Thickness: 0.4-8mm
Trademark TMR
Origin China

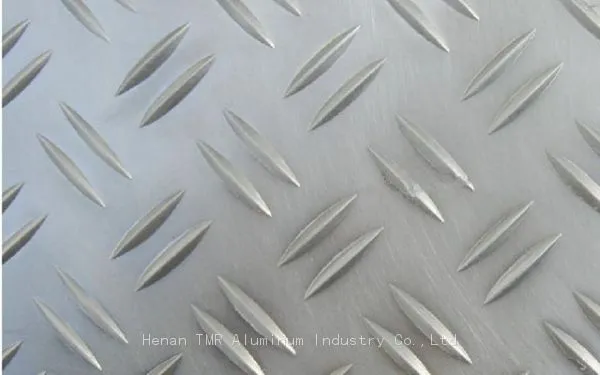

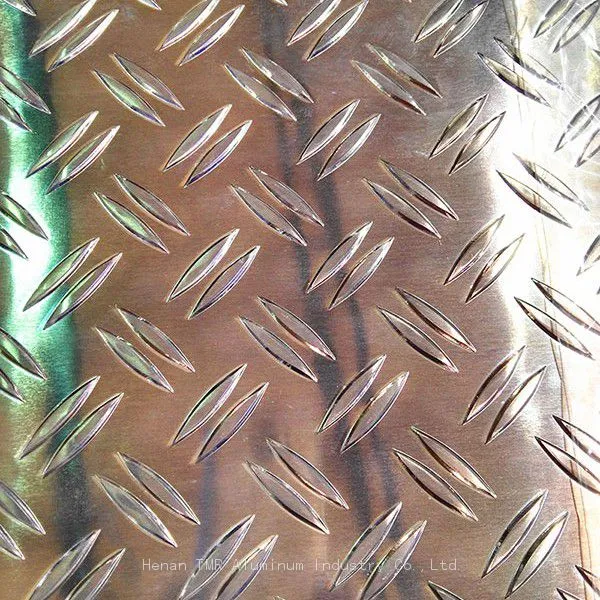

Product Description: 3003 2-Bar Aluminum Checker Plate

3003 2-Bar Aluminum Checker Plate is a manganese-alloyed aluminum sheet (1.0–1.5% Mn) featuring a 2-bar embossed pattern for superior anti-slip performance. Ideal for marine, architectural, and industrial applications, it combines lightweight durability, corrosion resistance, and formability .

3003 2 bar Aluminium checker plate 1Key Features

  • Material: 3003 aluminum alloy (enhanced strength vs. pure aluminum) .

  • Surface: 2-bar embossed pattern (height: 0.5–1.2mm) for slip resistance .

  • Temper: H14, H22, H24 (H24 most common for industrial flooring) .

  • Certifications: ISO 9001, ASTM B209, EN 485 .

Technical Parameters
Parameter Specification
Width 10–2300mm (customizable)
Thickness 0.4–8mm (excl. pattern height)
Pattern Height 0.5–1.2mm (varies with thickness)
Tensile Strength 110–200 MPa (H24 temper)
Elongation ≥12% (H24)
3003 2 bar Aluminium checker plate 2Surface Treatments

  • Mill Finish: Standard untreated surface (economical for industrial use) .

  • Anodized: Enhanced corrosion resistance + color options (e.g., silver, black) .

  • PE/PVDF Coated: UV/chemical-resistant for outdoor/marine use .

  • Polished: Decorative finish for architectural cladding .

Alloy Composition (3003)
Element Content (%)
Al 98.7
Mn 1.0–1.5
Cu 0.05–0.2
Fe ≤0.7
Si ≤0.6
Zn ≤0.1
3003 2 bar Aluminium checker plate 3Applications

  • Marine: Dock flooring, ship decks (saltwater-resistant) .

  • Architectural: Wall cladding, facades (polished for aesthetics) .

  • Industrial: Walkways, ramps, machinery flooring (H24 temper for durability) .

Product Tags: Marine-Grade 3003 2-Bar Tread Plate for Dock & Ship Decks , Architectural 2-Bar Checkered Plate for Modern Facades & Wall Cladding , Heavy-Duty 3003 Checker Plate for Industrial Walkways & Ramps
