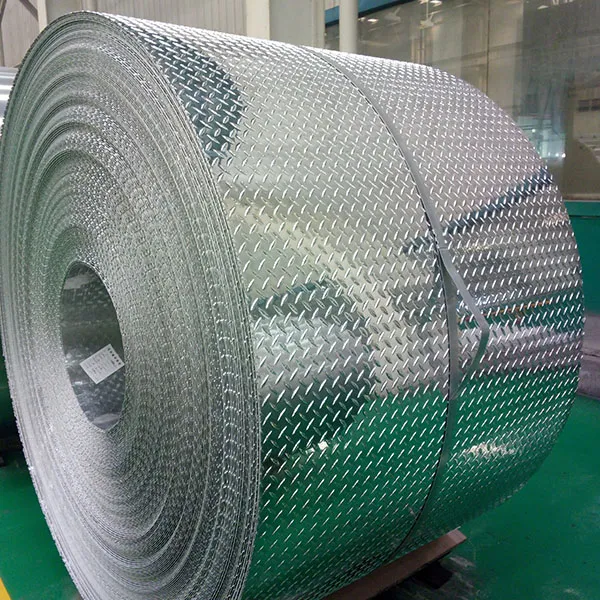

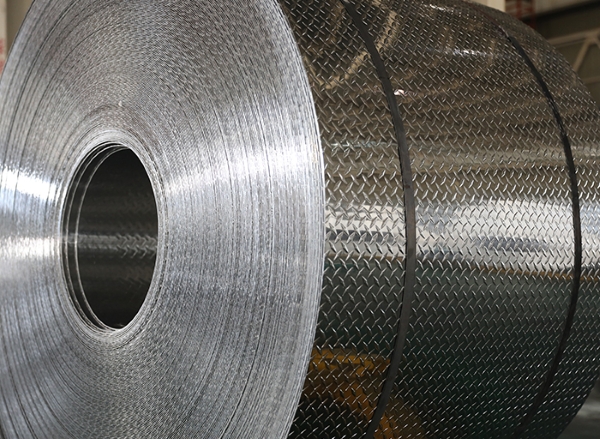

1050 Aluminum Diamond Plate is a pure aluminum alloy (99.5% Al) featuring an embossed diamond tread pattern for superior anti-slip performance. Its lightweight, corrosion-resistant, and recyclable properties make it ideal for marine, architectural, and industrial applications.
Material: 1050 pure aluminum (99.5% Al, excellent formability & weldability).

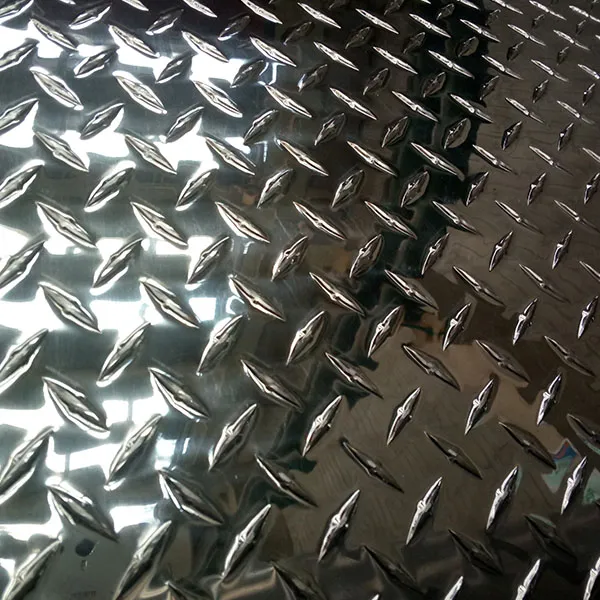

Surface: Diamond/checker pattern (1-bar or 5-bar) for slip resistance.
Temper: O, H12, H14, H16, H18, H24 (H24 most common for industrial flooring).
Certifications: ISO 9001, ASTM B209, EN 485.
Technical Parameters| Parameter | Specification |
|---|---|
| Width | 10–2300mm (customizable) |
| Thickness | 0.4–8mm (excl. pattern height) |
| Pattern Height | 0.5–1.5mm (varies with thickness) |
| Tensile Strength | 70–110 MPa (H24 temper) |
| Elongation | ≥12% (H24) |
Mill Finish: Standard untreated surface (economical for industrial use).
Anodized: Enhances corrosion resistance & allows color options.
PE/PVDF Coated: UV/chemical-resistant for outdoor/marine use.
Polished/Brushed: Decorative finish for architectural cladding.
| Element | Content (%) |
|---|---|
| Al | ≥99.5 |
| Fe | ≤0.40 |
| Si | ≤0.25 |
| Cu | ≤0.05 |
| Others | ≤0.15 |
Marine: Dock flooring, ship decks (anti-slip & saltwater-resistant).
Architectural: Wall cladding, facades (PE-coated for aesthetics).
Industrial: Walkways, ramps, machinery flooring (H24 temper for durability).
