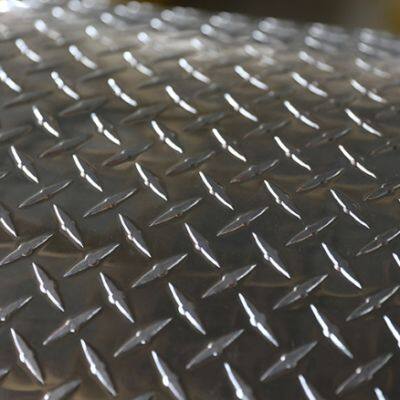

3003 Decorative Aluminum Diamond Plate for Luxury Interior Wall Cladding & Architectural Ceilings – Anti-Fingerprint Brushed Finish (H14, 1-4mm)

3003 Decorative Aluminum Diamond Plate for Luxury Interior Wall Cladding & Architectural Ceilings – Anti-Fingerprint Brushed Finish (H14, 1-4mm) thumbnail-1
3003 Decorative Aluminum Diamond Plate for Luxury Interior Wall Cladding & Architectural Ceilings – Anti-Fingerprint Brushed Finish (H14, 1-4mm) thumbnail-2
3003 Decorative Aluminum Diamond Plate for Luxury Interior Wall Cladding & Architectural Ceilings – Anti-Fingerprint Brushed Finish (H14, 1-4mm) thumbnail-3
3003 Decorative Aluminum Diamond Plate for Luxury Interior Wall Cladding & Architectural Ceilings – Anti-Fingerprint Brushed Finish (H14, 1-4mm) photo-1
3003 Decorative Aluminum Diamond Plate for Luxury Interior Wall Cladding & Architectural Ceilings – Anti-Fingerprint Brushed Finish (H14, 1-4mm) photo-2
3003 Decorative Aluminum Diamond Plate for Luxury Interior Wall Cladding & Architectural Ceilings – Anti-Fingerprint Brushed Finish (H14, 1-4mm) photo-3
Negotiable MOQ: 1 Metric Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO9001
Grade:
3000 Series
Color:
Other, As required
Contact Supplier Request Quote Chat Now
Henan TMR Aluminum Industry Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification ISO9001
Grade 3000 Series
Color Other, As required
Technique Other, Rolling, embossing
Application Other, Luxury Interiors, Marine & Transport, Commercial Infrastructure
Surface Treatment Other, Brushed + Anti-Fingerprint (AF), Anodizing, PVDF Coating, Embossed Pattern
Alloy Alloy
Temper O - H112
Transport Package Wooden pallet
Specification Width: 10-2300mm; Thickness: 0.4-8mm
Trademark TMR
Origin China
3003 Decorative Aluminum Diamond Plate - Technical Specifications & Applications Product Overview

The 3003 Aluminum Diamond Plate is a premium-grade, corrosion-resistant aluminum sheet with an embossed diamond pattern, optimized for luxury interior design, architectural cladding, and high-end commercial applications. With its 1.2% manganese content, it offers superior formability, strength, and aesthetic appeal compared to pure aluminum alloys (e.g., 1050/1100). The anti-fingerprint brushed finish ensures a sleek, low-maintenance surface ideal for modern interiors.

3003 Aluminum Diamond Plate 3Key Features & Competitive Advantages

✔ Anti-Fingerprint Brushed Finish – Oleophobic coating resists smudges (Ra ≤ 0.8μm)
✔ H14 Temper – Balanced strength (145-175 MPa) and bendability for curved designs
✔ Static-Dissipative Option – Surface resistance 10^6-10^9Ω for server rooms (IEEE STD 299 compliant)
✔ Salt-Spray Resistant – 1,500+ hours ASTM B117 testing for marine/port use
✔ Custom Sizing – Width: 10-2300mm | Thickness: 0.4-8mm (±0.05mm tolerance)

Technical Specifications (2025 Standards)
Parameter Specification Test Standard
Alloy 3003 (Al + 1.2% Mn, Cu≤0.2%, Fe≤0.7%) ASTM B209 / EN 485
Temper H14 (Cold Rolled + Partial Annealing) ASTM B221
Thickness Range 0.4-8mm (±0.05mm) ISO 2768
Width Range 10-2300mm (custom slitting available) EN 485-2
Diamond Pattern 5-bar, 1.2mm height ISO 9001
Tensile Strength 145-175 MPa ASTM E8
Surface Treatment Brushed + AF coating, anodized, or PVDF AAMA 2605 (PVDF)
Certifications ISO 9001, GREENGUARD Gold, EN 13501-1 Third-party reports available
3003 Aluminum Diamond Plate 2Primary Applications 1. Luxury Interiors

  • Wall Cladding: Brushed finish for high-end retail/hospitality (e.g., boutique hotels)

  • Acoustic Ceilings: Perforated panels with 0.6-1.2 NRC sound absorption

2. Commercial Infrastructure

  • Server Room Flooring: Static-dissipative variant (IEEE STD 299 compliant)

  • Hospital Partitions: Antimicrobial PVDF coating (ISO 22196 certified)

3. Marine & Transport

  • Port Machinery Guards: Salt-spray resistant (1,500+ hours ASTM B117)

  • E-Mobility Battery Enclosures: Lightweight (2.71 g/cm³) vs. steel

3003 Aluminum Diamond Plate 1Why Choose 3003 Over Competing Alloys?
Property 3003 1050 6061
Strength 145-175 MPa (H14) 100-120 MPa (H14) 290-320 MPa (T6)
Formability ★★★★★ (O temper) ★★★★★ ★★☆☆☆
Corrosion Resistance Excellent (Mn-enhanced) Good Excellent
Cost (2025 LME) $3,100/ton $2,900/ton $3,400/ton
2025 Compliance & Sustainability

  • EU: REACH

  • US: UL 94 V-0 fire rating for commercial interiors

  • Carbon Footprint: 5.5 kg CO2/kg (30% lower than steel)


Product Tags: Museum-grade aluminum tread plate for art gallery walls , Antimicrobial checker plate for hospital interior partitions , Sound-absorbing diamond plate for high-end restaurant ceilings
