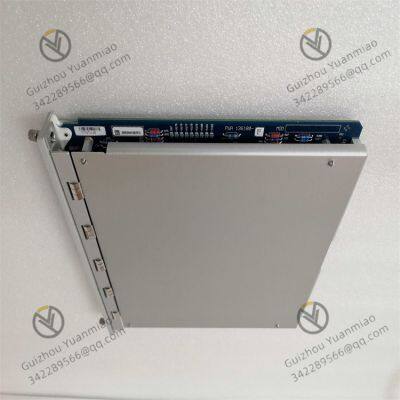

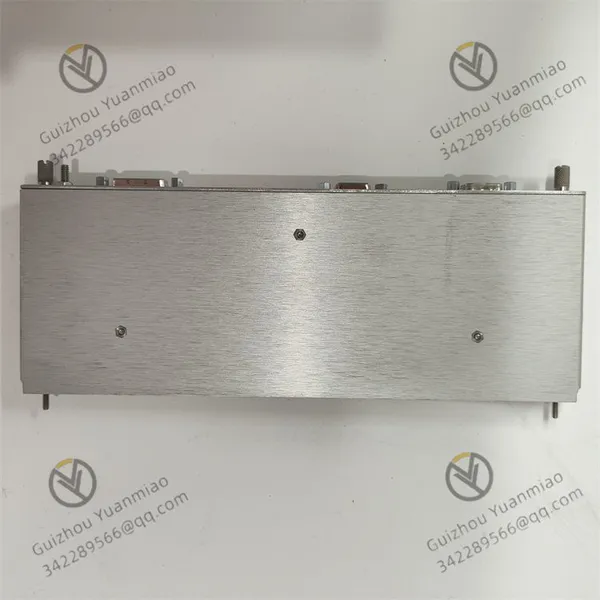

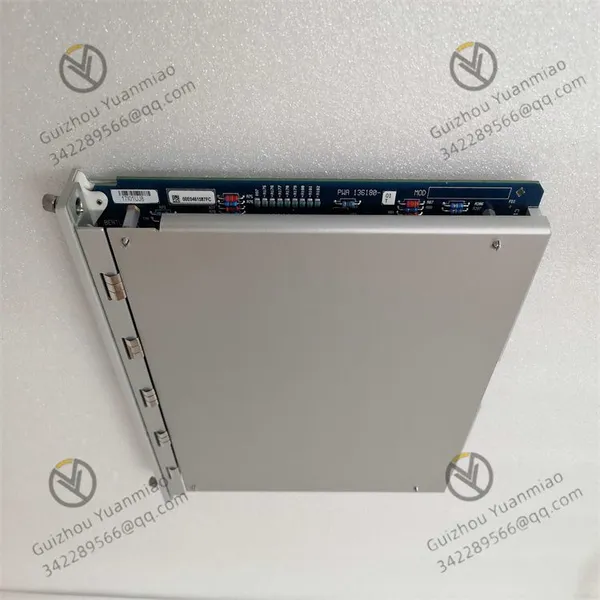

Bently Nevada 3500/95 display device monitor
I. Upgraded Features and Technical Highlights
Enhanced display and interaction system
High-definition visual interface: Standard equipped with a 10.4-inch color TFT touch screen (resolution 1024×768),
supporting multi-touch, capable of simultaneously displaying more than 8 groups of real-time parameter curves, and
supporting gesture zooming and dragging to switch pages.
3D Trend and spectrum Analysis: Built-in FFT spectrum calculation function, generating vibration spectrum diagrams
(such as waterfall diagrams, Campbell diagrams) in real time to assist in analyzing equipment failures (such as
resonance, abnormal gear meshing);
Custom interface configuration: Through the 3500 configuration software, personalized monitoring screens can be
designed, supporting the superimposition of data tags on the 3D model of the device to visually present the
mechanical status.
Redundancy and fault-tolerant design
Power and communication redundancy: Supports dual AC/DC power input (100-240VAC or 24VDC), with built-in
automatic switching circuit; The Ethernet interface supports ring network redundancy (such as PRP/HSR) to ensure that
data is not lost when communication is interrupted.
Hardware self-check and fault isolation: Real-time monitoring of CPU, memory, and I/O interface status. When an
anomaly is detected, it automatically switches to the standby channel and highlights the location of the faulty module
on the interface.
Advanced Alarm and Event Management
Hierarchical alarm strategy: Supports 4-level alarm thresholds (early warning, alert, danger, shutdown), and each
channel can independently configure alarm delay time and reset logic.
Event Sequence Recording (SOE) : Equipped with a high-precision clock (error ≤1ms), it records the timestamps of
events such as alarms, operations, and parameter changes, and supports the traceability of abnormal equipment
history.
Ii. Installation and Environmental Adaptability
Installation method:
19-inch standard rack mounting (adapter required);
Embedded installation of the on-site control cabinet panel (protection grade IP65);
When installing the remote cabinet, it supports up to 100 meters of cables (shielded twisted pair cables must be used).
Environmental parameters:
Operating temperature: -40℃ to +70℃ (wide temperature type)
Anti-vibration: 5-200Hz, 2g acceleration (conforming to IEC 60068-2-6 standard);
Impact resistance: 50g acceleration (11ms duration).
Iii. Comparative Advantages over the 3500/94 module
Display system: 1024×768 pixel touch screen, supporting gesture interaction
Data processing capability: Supports 64-channel data synchronous processing and trend analysis
Redundant design: Dual power supply, dual Ethernet redundancy, and optional I/O channel redundancy
Advanced features: 3D spectrum, Campbell's plot, device health prediction model
Applicable scenarios: large-scale critical equipment, factory-wide integrated monitoring, nuclear power and other
high-security-level scenarios
Iv. Application Cases
Monitoring of 1 million kilowatt steam turbine generator sets
In the steam turbine generator of a nuclear power plant, 3500/95 displays 32 parameters in real time, such as the
vibration, expansion difference, and axial displacement of the high-pressure cylinder/low-pressure cylinder. It visually
presents the thermal expansion trend of the rotor during the start-up and shutdown process through a 3D trend chart,
and combines AI algorithms to predict the remaining service life of bearing wear.
Intelligent monitoring of LNG compressor clusters
In the liquefied natural gas plant, multiple 3500/95s form a redundant monitoring network. Through ring network
communication, the vibration spectrum, temperature, rotational speed and other data of 12 compressors are uploaded
to the cloud platform to achieve the health ranking and predictive maintenance of the cluster equipment.
Protection of the drive motor for petrochemical cracking furnaces
For the drive motor of the cracking furnace in high-temperature and high-dust environments, 3500/95 utilizes a
wide-temperature design and anti-interference capability to monitor the vibration and temperature of the motor
bearings in real time. When an abnormality is detected, it will cut off the fuel supply through relay output linkage to
prevent equipment damage and safety accidents.
V. Key Technical Parameters
Processor and Storage: Based on a 2.0GHz Celeron processor and equipped with a 40GB hard drive, it can meet the
requirements of data storage and processing.
Operating system: At least support the Windows XP operating system to ensure software compatibility and system
stability.
Input and output interfaces: It is equipped with 4 USB 2.0/1.1 ports for convenient connection to external devices; One
9-pin D-type RS-232 interface for serial communication; One 10/100 Base-T Ethernet port with an RJ45 interface,
which can be connected to a local area network; One 25-pin D-type interface, which can be used to connect other
related devices.
Communication interface: It can be directly connected to the framework interface module through the RS-232 or
RS-422 serial port. When using the RS-422 protocol, an adapter (BN part number 02230411) needs to be equipped.
Display screen It offers a variety of display specifications to choose from, including a 10-inch VGA (800×600) color TFT
flat panel display, a 15-inch XGA (1024×768) color TFT flat panel display, and a 17-inch SXGA (1280×1024) color TFT
flat panel display. Display data in graphic and text formats.
Power supply requirements: AC power input, voltage range 90-250VAC, frequency 50/60Hz.
Installation method and communication distance: It is a panel-mounted type. When using the appropriate cable
options and RS-422 communication protocol, it can be installed at a position up to 4000 feet away from the 3500
frame.
The lifespan of the bulb: The lifespan of the display screen bulb is approximately 50,000 hours, which has a relatively
long service life, reducing maintenance costs and frequency.
Vi. Maintenance and Diagnostic Tools
Built-in diagnostic function
Health dashboard: The power, communication and I/O status are displayed through red, green and yellow indicator lights, and the interface shows the failure rate percentage of each module in real time.
Waveform playback: Supports the storage and playback of vibration waveform data within the last 72 hours, facilitating the analysis of transient faults (such as start-up shock and surge).
Remote maintenance plan
Remotely access the 3500/95 management interface via VPN to achieve firmware upgrade and parameter adjustment;
Support linkage with Bentley Asset Condition Monitor (ACM) software to automatically generate equipment maintenance work orders.
Summary
The 3500/95 display device monitor represents the high-end level of the 3500 system in the field of display and
control. Through a high-definition interactive interface, redundant design and intelligent analysis functions, it
upgrades the mechanical protection system from "passive alarm" to "active prediction". Its application in the
monitoring of key equipment not only enhances the operation and maintenance efficiency of industrial sites, but also
provides core component support for the intelligent transformation of process industries through data-driven decision
support.
