BENTLY 3500/15 106M1079-01 Universal AC Power Module in 3500 Series Mechanical Protection System

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
BENTLY 3500/15 106M1079-01 Universal AC Power Module in 3500 Series Mechanical Protection System thumbnail-1
BENTLY 3500/15 106M1079-01 Universal AC Power Module in 3500 Series Mechanical Protection System thumbnail-2
BENTLY 3500/15 106M1079-01 Universal AC Power Module in 3500 Series Mechanical Protection System thumbnail-3
BENTLY 3500/15 106M1079-01 Universal AC Power Module in 3500 Series Mechanical Protection System thumbnail-4
BENTLY 3500/15 106M1079-01 Universal AC Power Module in 3500 Series Mechanical Protection System photo-1

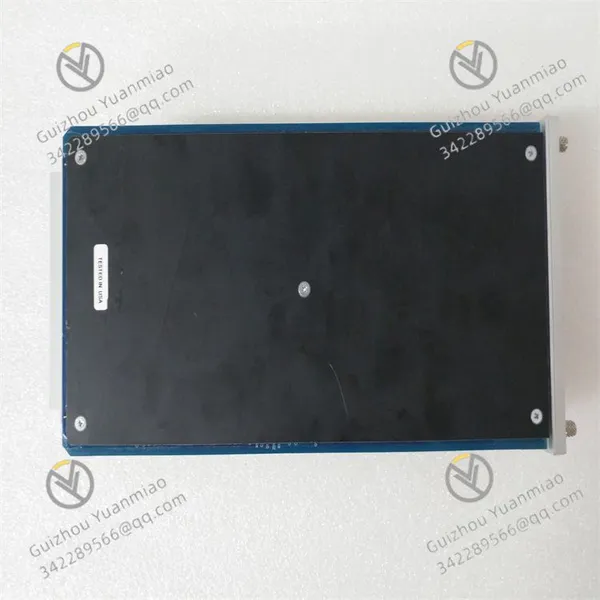

BENTLY 3500/15 106M1079-01 Universal AC Power Module in 3500 Series Mechanical Protection System photo-2
BENTLY 3500/15 106M1079-01 Universal AC Power Module in 3500 Series Mechanical Protection System photo-3

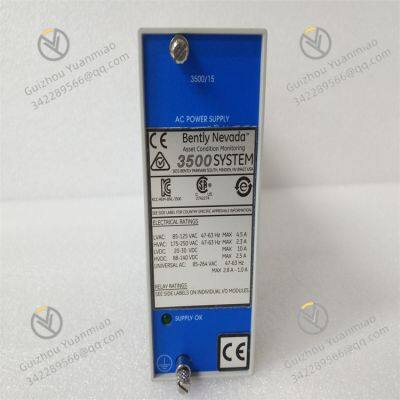

BENTLY 3500/15 106M1079-01 Universal AC Power Module in 3500 Series Mechanical Protection System photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




Bently 3500/15 106M1079-01 is a universal AC power supply module in the 3500 series mechanical protection system. The following is the relevant content from its user manual:
Basic Information

  • Brand: Bently Nevada.

  • Model: 3500-15 106M1079-01.

  • Dimensions: 100mm × 100mm × 40mm.

  • Weight: 0.5kg.

Technical Parameters

  • Input Voltage: 85 to 264VAC.

  • Output Voltage: 20 to 30VDC.

  • Output Current: 2.5A.

  • Efficiency: 90%.

  • Overload Protection: Equipped with overvoltage protection, undervoltage protection, and short-circuit protection functions.

  • Certifications: Certified by ATEX/IECEx/CSA (Class 1, Zone 2).

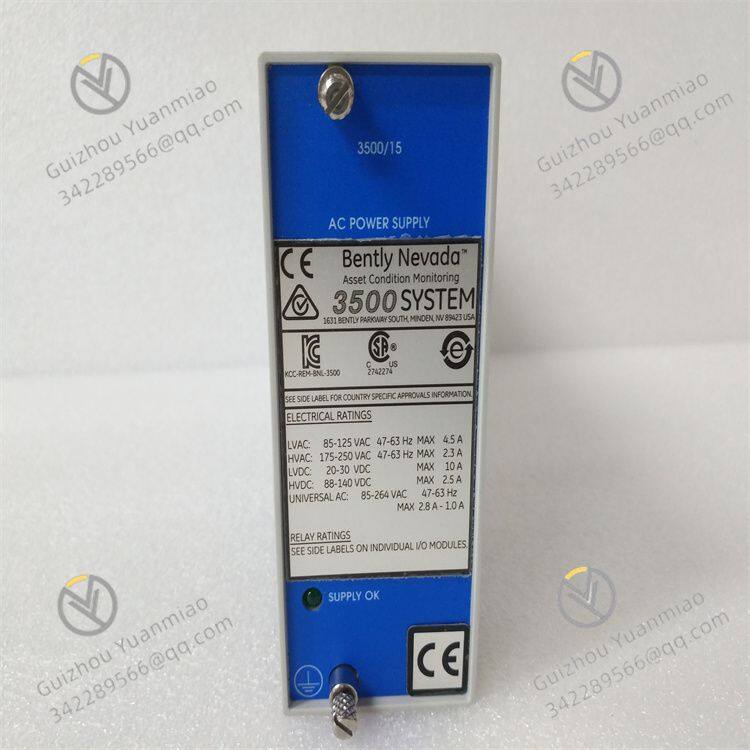

3500-15 106M1079-01 (4)



    Functional Features

    • Strong Compatibility: Compatible with the 3500 rack system, capable of converting input voltage to a level suitable for other 3500 modules.

    • Modular Design: It is a half-height module and must be installed in the specially designed slot on the left side of the frame. The 3500 frame can be equipped with one or two power supplies (any combination of AC or DC), and either power supply can supply power to the entire frame. If two power supplies are installed, the lower one serves as the main power supply, and the upper one as the backup power supply.

    Installation and Maintenance

    • Installation Method: Insert the module into the designated slot on the left side of the 3500 frame. If two power modules are installed, ensure the power types match and follow the above main/backup power rules for installation.

    • Fuse Replacement: If the fuse needs to be replaced, use a fuse with model 01720025 (applicable to AC power input modules).

    • Front Panel Components: The power module may be equipped with a blank front panel with model 131150 - 01.

    • Rear Connector Protection: The rear input connector of the power module may be equipped with a protective cover with model 128085 - 01, which can protect the connector from dust and other debris.

    • Screw Specifications: The screws used to fix the power input cover have specifications of 04310251.

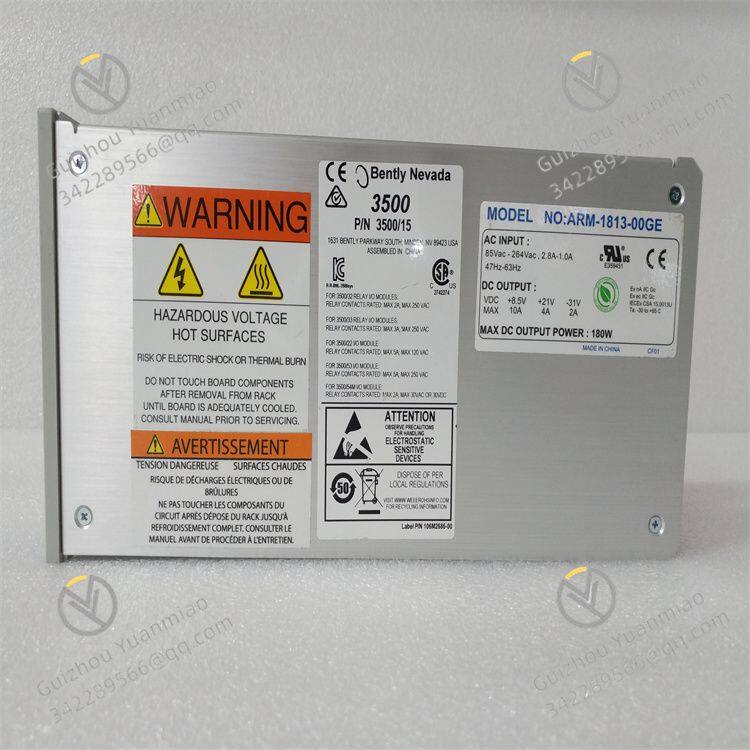

3500-15 106M1079-01 (3)
