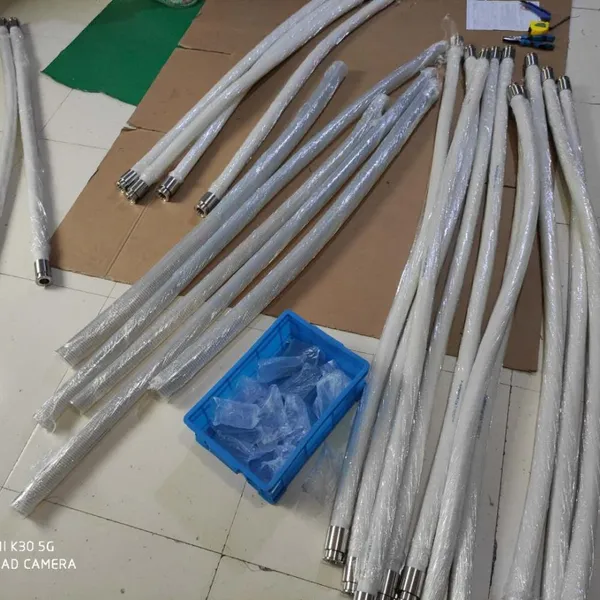

Pharmaceutical Silicone Tube Quick Installation Chuck, High-temperature Resistant Platinum Sulfide Silicone Steel Wire Tube

Pharmaceutical Silicone Tube Quick Installation Chuck, High-temperature Resistant Platinum Sulfide Silicone Steel Wire Tube

Platinum vulcanized steel wire silicone hose:

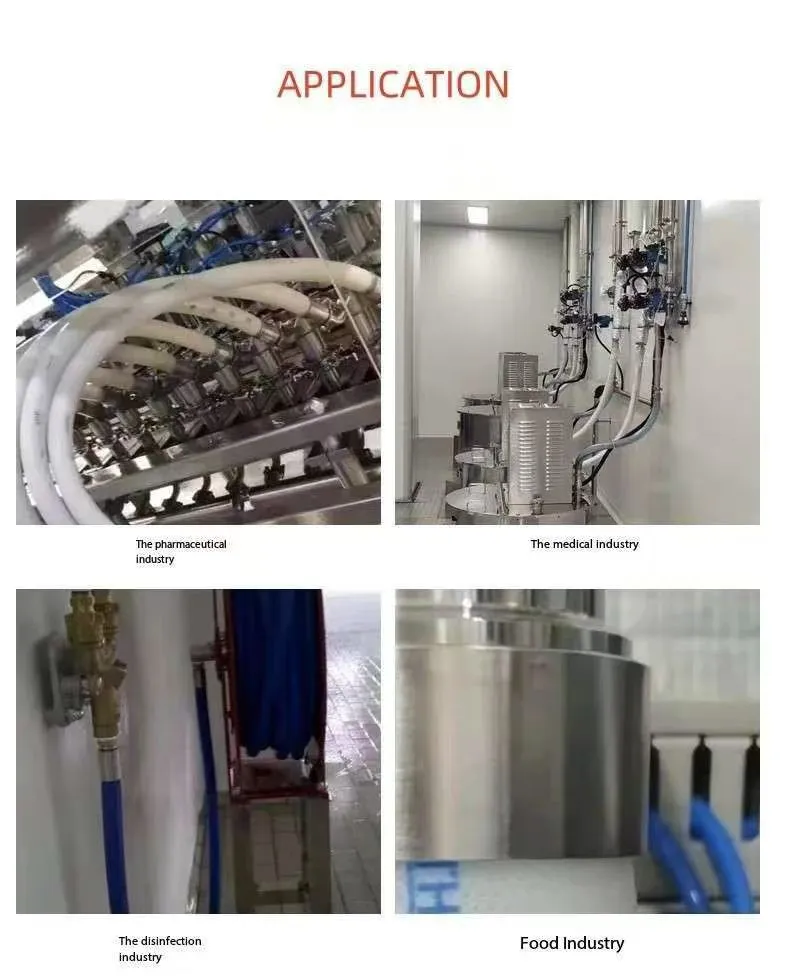

Application: High cleanliness industries such as food, beverages, drinking water, cosmetics, pharmaceuticals, etc

Construction: Type SQ is manufactured from High purity platinum cured Silicone with single stainless steel helix and 4 layers of polyester reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Translucent (Coloured covers available)
Smooth inner and outer surface to resist material adhesion
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Note: If it is required to use high-temperature steam above 121 ℃ for a long time, it can be customized.
Length: Standard length is 4m, 6m or 10m.
 PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Transparent steel wire silicone tube TSO：

Application: High cleanliness industries such as food, beverages, drinking water, cosmetics, pharmaceuticals, etc

Construction: Type TSO is manufactured from High purity platinum cured Silicone with stainless steel helix reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Transparent
Smooth inner and outer surface to resist material adhesion
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Length: Standard length is 4 or 6 meters.
PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Platinum vulcanized mesh silicone tube:

Application: High cleanliness industries such as food, beverages, drinking water, cosmetics, pharmaceuticals, etc

Construction: Type PF is manufactured from High purity platinum cured Silicone with polyester fiber reinforcement.Temp. Range: -60°C and 200°C.

Colour: Translucent (Coloured covers available)

Length: Standard maximum length is 50 meters, for a longer length, please contact us.

 PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Platinum vulcanized 4-layer mesh silicone tube:

Construction: Type SP is manufactured from High purity platinum cured Silicone with 4 layer polyester reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Translucent (Coloured covers available)
Applications: For transporting liquids at medium pressure where a closed bending radius is not required. It is not recommended for vacuum. Suitable for CIP and SIP cleaning.
Length: Standard length is 4 or 6 meters.
*PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
