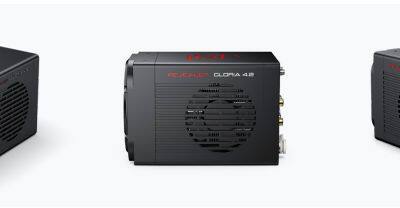

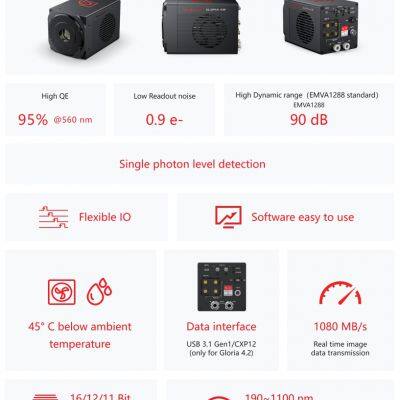

Revealer Gloria series sCMOs cameras are desiqned with Gpixel’s leading CMOS image sensor, combinedwith backside illumination technology and deep cooling sealing process for QE of up to 95% and extreme lownoise, suitable for life sciences, quantum physics, astronomical observation and semiconductor inspection andothers. lt’s compact design is suitable for integration into the SlM and other optical inspection systems.
SKUs: Gloria 4.2
Sensor type andmodel: sCMOS GpixeI GSENSE2020BSI
Resolution: 2048 (H)x 2048 (V)
Pixel size: 6.5 μm x 6.5 μm
Effective area: 13.3 mm x 13.3 mm
Full well capacity: 45 000 e-
Readout noise: 1.2 e- @ Low Noise Mode
Peak QE: 95 % @ 560 nm
Dynamic range: 90 dB
DSNU: 0.2 e-
PRNU:
Cooling: TEC, Air, Liquid, 45 °C below ambient temperature
Dark Current: Air: 0.5 e-/p/s @-10 °℃(typical); Liquid: 0.3 e-/p/s @-20 °℃ (typical)
Shutter: Rolling, Global reset
Bit depth: 11 bit & 12 bit & 16 bit
Frame rate: USB : 61 fps @ 11 bit, 43 fps @ 12 bit46 fps @ 16 bit; CXP:135 fps @ 11 bit, 43 fps @ 12 bit,74 fps @ 16 bit
Readout modes: Full format/Binning(2x2,4x4)/ROI
Exposure times: 5 us~ 10 s
Data interface: USB 3.1 Gen1, CoaXPress 2.0(CXP-12)
Timestamp accuracy: 1 μs
Trigger interface: SMA, TTL/ 3.3 V level signal
Optical interface: C-mount
Power supply: AC 100 ~ 240 V, 50 Hz/ 60 Hz,1 A
Power consumption: 50 W
Size: 84x84x125 mm
Weight: 1300g
Operating Environment: Temp0~40°C，RH10~80 %
Storage Environment: Temp0~40°C，RH ≤90 %
SDK: C，C#，C++，Python
Software: RPC，Micro-manger，LabviewMatlab, Epics, ASCOM
