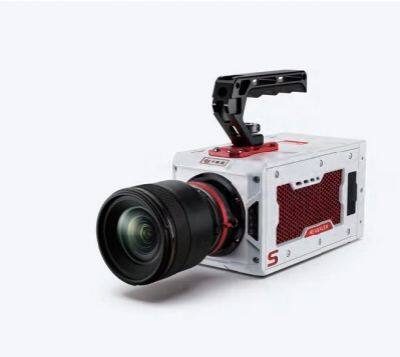

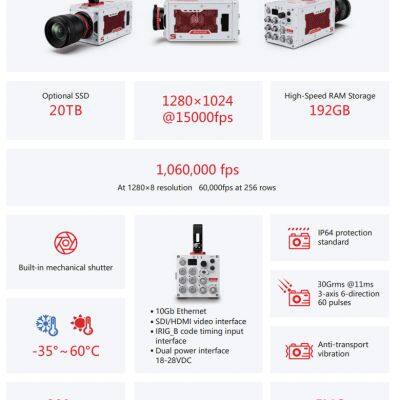

S1315 M/C High Speed Camera

With higher bandwidth CMOS sensor, Large memory S series can achieve high-speed video recording, real-time acquisition.

Resolution: 1280x1024

Bit Depth: 10Bit

Frame Rate:

@1280*1024 15,000fps

@1280x8 1,060,000fps

RAM Storage: 192GB

1TB/2TB/ 10TB/20TB(optional)

USB 3.0

Mini. Exposure Time: 100ns

Shutter: Global Shutter

Support ROI

Support uto Exposure

Support IRIG-B

Size: 110x110x205mm

(without lens)

Weight: ≤3800g

• Support ROI acquisition window setting, support

resolution, frame rate linkage adjustment

• Support auto exposure, EDR secondary exposure

• Supports internal and external synchronization

• Support rising edge, falling edge, low level, high level

and other external signal triggering

• Supports automatic triggering of image changes with a

10x10 pixel area

• Standard shutter release cable to control shooting and

saving, one-touch recording function

• With automatic white balance, dark field correction,

intelligent denoising, Gamma correction, color

optimization module

• SDI video output supports real-time screen preview and

slow playback in the export preview state (select

settings)

• Supports PIV cross-frame exposure for non-contact

measurement of PIV, PTV, etc.
