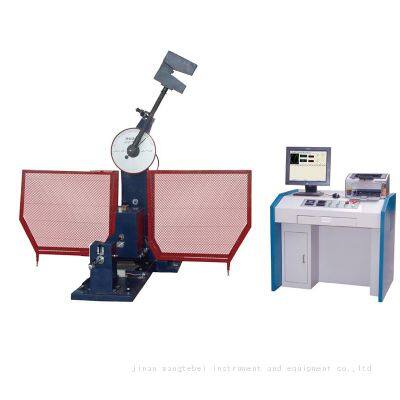

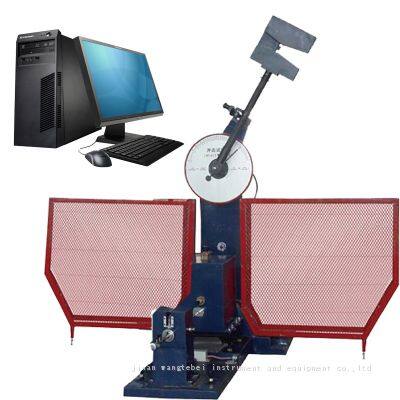

Energy Absorption Test for Metals Charpy Impact Testing Machine for Steel and Aluminum

1.test purpose

The  impact tester is to measure and determine anti-impact properties of metal materials in dynamic load.

2. test method

GB/T3808-2018 verification of pendulum type impact testing machines

ISO 148-2:2008 metallic materials-charpy pendulum impact test-part 2:verification of testing machines

GB/T229-2007 metallic materials-charpy pendulum impact test method

ISO 148-1:2006 metallic materials-charpy pendulum impact test-part 1:test method

3.features

3.1 single support column structure, cantilever hanging pendulum, U-type pendulum body

3.2 impact blade fixed by screws, easy and convenient for changing

3.3 simple supported beam support for samples

3.4 safe pin and protecting cover equipped with the machine

3.5 semi-automatic control, electrical control for pendulum rising, place pendulum, impact and re-place pendulum. Pendulum will be auto rising and placed after one test, very suitable for continuous testing in lab, metallurgy and mechanical manufacturing.

4. technical specification
