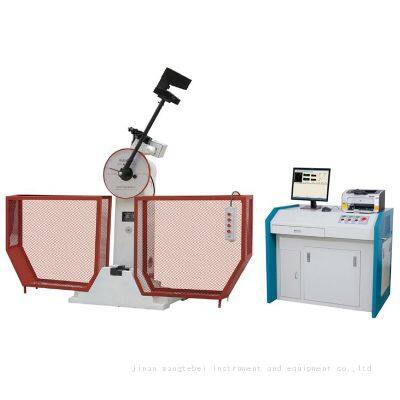

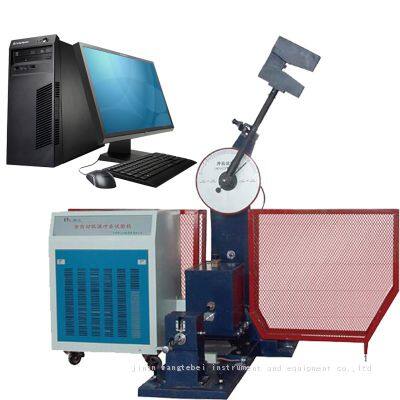

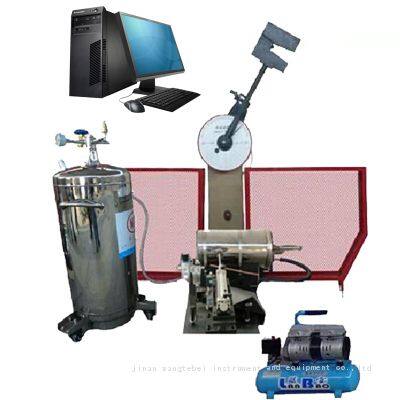

GB/T 229 impact test equipment metal impact test standard compliance machine impact test machine with ASTM calibration
- 10 Set / Sets per Month
- qingdao, shanghai, tianjin
- T/T
- 10 days
You May Like
-
digital display metal impact tester touchscreen impact testing machine automatic specimen feeding impact tester
-
dual-column impact testing machine impact tester with cooling chamber energy display impact tester
-
pendulum impact tester with encoder analog metal impact tester impact test equipment for construction steel
-
aerospace alloy impact strength tester copper and brass impact test machine automotive metal component impact tester
-
railway steel impact resistance tester impact tester for metal sheet and rod heavy-duty impact tester for forged metal
-
metal impact tester wholesale OEM metal impact testing machine cost-effective impact tester for metal labs
Product Details
Type | Impact Testing Machine | Warranty | 1 year | |
Weight | 500-1000Kg | Power Source | AC380V | |
Accuracy Grade | 0.5 | Load Way | Mechanical Load | |
Control | Computer Control | Loading Method | Static Load | |
Display | Digital | Transport Package | export package | |
Specification | 300J,150J, 500J, 250J | Origin | China |
Product Description
1.test purpose
The impact tester is to measure and determine anti-impact properties of metal materials in dynamic load.
2. test method
GB/T3808-2018 verification of pendulum type impact testing machines
ISO 148-2:2008 metallic materials-charpy pendulum impact test-part 2:verification of testing machines
GB/T229-2007 metallic materials-charpy pendulum impact test method
ISO 148-1:2006 metallic materials-charpy pendulum impact test-part 1:test method
3.features
3.1 single support column structure, cantilever hanging pendulum, U-type pendulum body
3.2 impact blade fixed by screws, easy and convenient for changing
3.3 simple supported beam support for samples
3.4 safe pin and protecting cover equipped with the machine
3.5 semi-automatic control, electrical control for pendulum rising, place pendulum, impact and re-place pendulum. Pendulum will be auto rising and placed after one test, very suitable for continuous testing in lab, metallurgy and mechanical manufacturing.
4. technical specification
No. | Item | Spec. |
1 | Impact energy | 500J,250J |
2 | Impact speed | 5.2m/s |
3 | Pendulum rising angle | 150° |
4 | Accuracy of angle | 0.1° |
5 | Span of sample supports | 40mm |
6 | Support jaw fillet | R1.0-1.5mm |
7 | Impact blade fillet | R2.0-2.5mm, R8mm |
8 | Distance between pendulum center and impact center | 750mm |
9 | Standard test sample | 10x10x55mm,10x7.5x55mm,10x5x55mm |
10 | Voltage and power | 3 phase 4 wire,50Hz,380V,180W |
11 | Dimension | 2100x650x1900mm |
12 | Weight | 450kg |
No. | Item | Spec. |
1 | Impact energy | 150J,300J |
2 | Impact speed | 5.2m/s |
3 | Pendulum rising angle | 150° |
4 | Accuracy of angle | 0.1° |
5 | Span of sample supports | 40mm |
6 | Support jaw fillet | R1.0-1.5mm |
7 | Impact blade fillet | R2.0-2.5mm, R8mm |
8 | Distance between pendulum center and impact center | 750mm |
9 | Standard test sample | 10x10x55mm,10x7.5x55mm,10x5x55mm |
10 | Voltage and power | 3 phase 4 wire,50Hz,380V,180W |
11 | Dimension | 2100x650x1900mm |
12 | Weight | 450kg |
