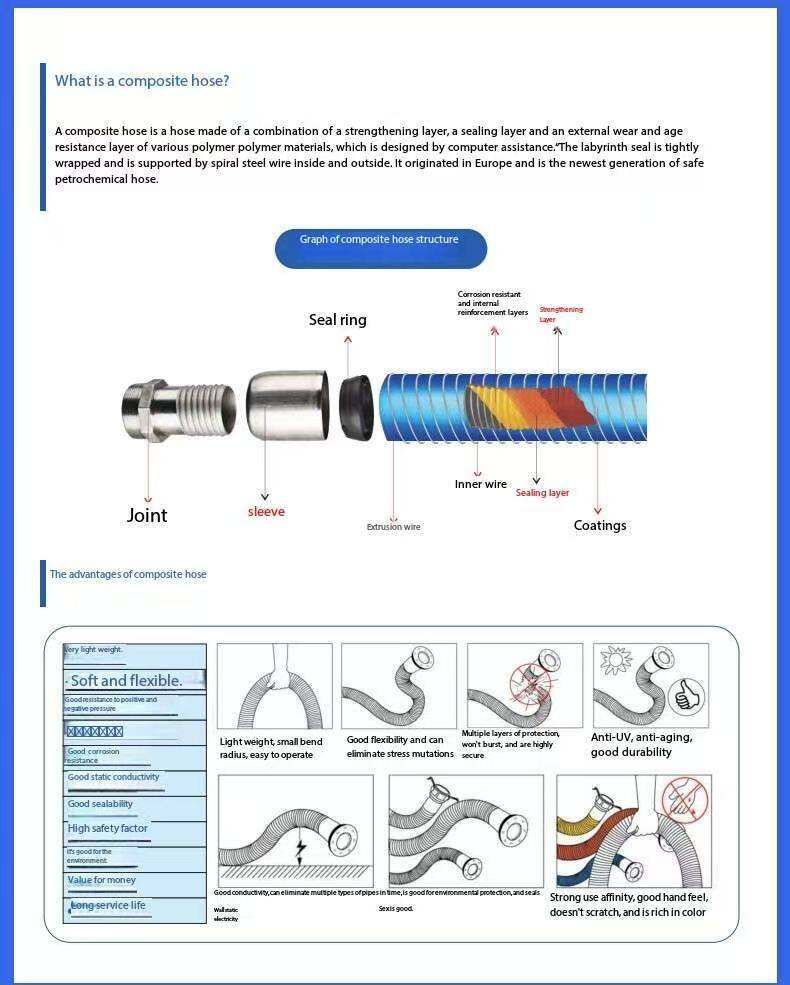

Composite Hose Structure:
Inner tube: Polypropylene/PTFE
①Inner steel wire: hot dip galvanized steel wire/stainless steel wire
②Outer steel wire: hot dip galvanized steel wire/stainless steel wire
③Barrier layer
④Reinforce layer
⑤Anti-aging layer
Advantages of Composite Hose
First, the hose is light in weight. While according to the test, it is 40% lighter than the rubber hose and 60% othat of metal hose with the same diameter and length. Therefore, it is easy to transport and install. While this can help you save much cost.
Second, the hose has a structure with excellent sealing performance. Thus it remains tearing and leakage resistant even in the most harsh environment. For example, the usage in marine.
Third, It is highly flexible to fit any working conditions. It remains flexible even in cold weather.
Fourth, both of the steel wire and inner layer have reliable static elimination property. Thus it can make the oil delivery safe and flexible.

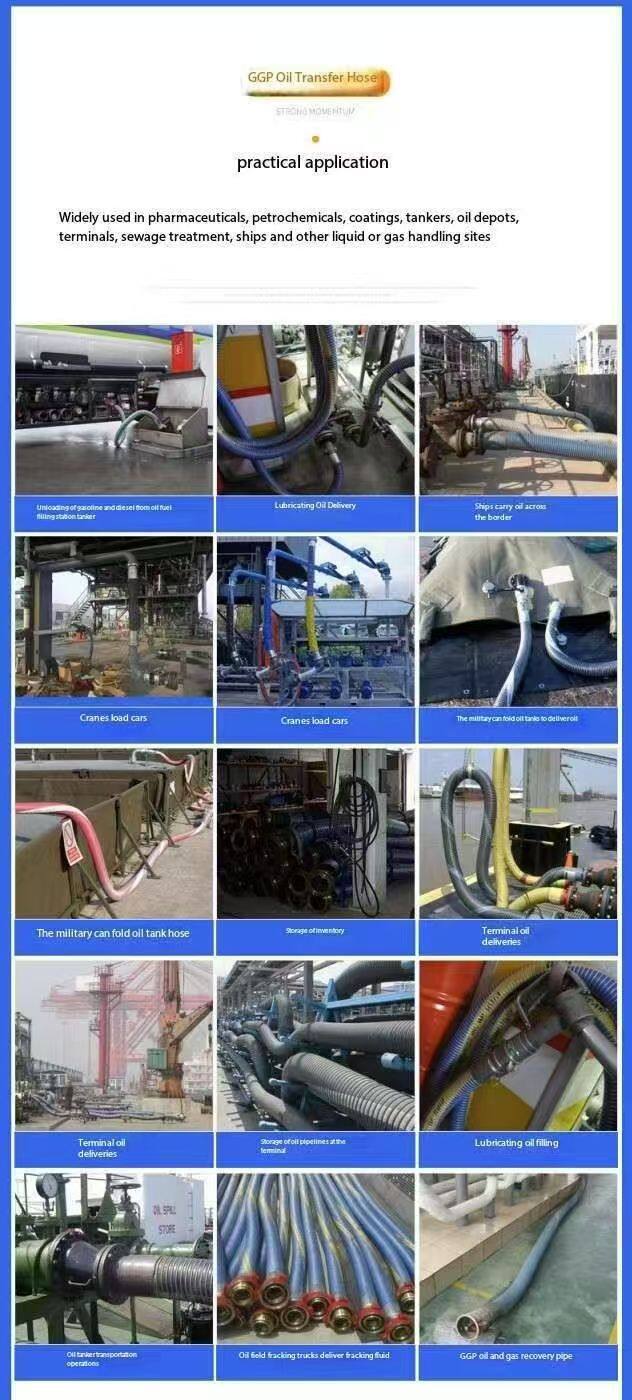

Last, it has excellent oil and chemical resistance. Thus it is widely used in various fields such as marine, chemical factory, power plant, oil exploitation,
Because of the great properties and advantages, composite flexible hose has replaced the traditional rubber hose and metal hose in many fields. These include dock, oil tanker, petrochemical product storage, chemical factory, etc.
Code |
ID |
Bend radius |
Working pressure |
Burst pressure |
Max length |
|
in. |
mm |
mm |
bar |
bar |
m |
|
GGP025 |
1" |
25 |
100 |
17 |
51 |
40 |
GGP038 |
1-1/2" |
38 |
112 |
17 |
51 |
40 |
GGP051 |
2" |
51 |
150 |
17 |
51 |
40 |
GGP065 |
2-1/2" |
65 |
190 |
17 |
51 |
40 |
GGP076 |
3" |
76 |
225 |
17 |
51 |
40 |
GGP102 |
4" |
102 |
350 |
17 |
51 |
40 |
GGP152 |
6" |
152 |
600 |
17 |
51 |
20 |
GGP203 |
8" |
203 |
850 |
17 |
51 |
20 |
GGP253 |
10” |
253 |
1150 |
17 |
51 |
20 |
Note: A hose with a pressure of 10 bar can be provided. | ||||||
