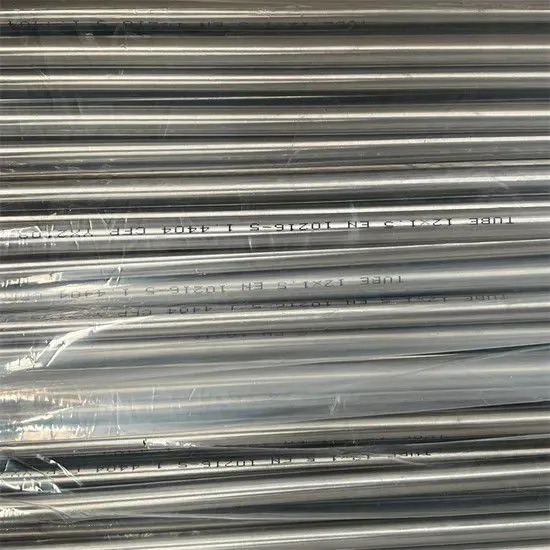

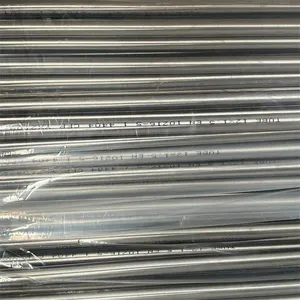

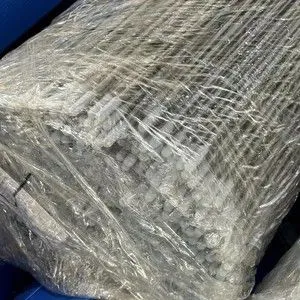

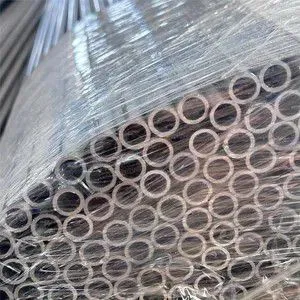

ASME SA249 Welded Austenitic Tubes for Boilers, Superheaters, Heat Exchangers and Condensers
US$ 300 - 4000
MOQ: 1 Ton
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Tianjin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI/TIANJIN/XIAMEN
Delivery Detail:
25 days
Related Products
-
ASTM A249 Tube Manufacturer in China,ASTM A249 Stainless Tubes SupplierUS$ 100 - 300MOQ: 1 Ton -
ASTM A249 / A249M Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser TubesUS$ 100 - 300MOQ: 1 Ton
-
ASTM A312/ASTM General Purpose Ferritic/Austenitic Stainless Steel Seamless and Welded Steel Tube for Boilers Superheaters HeatUS$ 800 - 1100MOQ: 1 Ton
-
ASTM A249 ASME SA249 TP304 TP304L TP304H TP316L TP316Ti TP321 TP321H TP309S TP310S TP347H Welded Tubes PipeUS$ 750MOQ: 1 Ton
-
ASTM A249 TP304 Stainless Steel TubesUS$ 300 - 4000MOQ: 1 Ton
Model NO.
A249 stainless steel pipe
Certification
ISO, RoHS, IBR, AISI, ASTM, GB, EN, DIN, JIS
Shape
Round
Technique
Hot Rolled
Surface Treatment
Pickling
out Diameter
20-508mm
Thickness
1-50mm
Length
6m
Commodity
A249 Stainless Steel Tube
Transport Package
Export Standard Packing
Specification
42*2
Origin
China
SA 249 TP 316 Boiler Tube Dimensions
| OD inches | ID inches | D/t Ratio | Tubing Cross Sectional Area (in2) | Ave. Wall inches | Internal Area (in2) |
|---|---|---|---|---|---|
| 0.250 | 0.210 | 12.50 | 0.0145 | 0.020 | 0.0346 |
| 0.250 | 0.194 | 8.93 | 0.0195 | 0.028 | 0.0296 |
| 0.500 | 0.460 | 25.00 | 0.0302 | 0.020 | 0.1662 |
| 0.500 | 0.444 | 17.86 | 0.0415 | 0.028 | 0.1548 |
| 0.875 | 0.835 | 43.75 | 0.0537 | 0.020 | 0.5476 |
| 1.500 | 1.430 | 42.86 | 0.1611 | 0.035 | 1.6061 |
| 1.500 | 1.402 | 30.61 | 0.2234 | 0.049 | 1.5438 |
| 1.500 | 1.370 | 23.08 | 0.2930 | 0.065 | 1.4741 |
| 1.750 | 1.680 | 50.00 | 0.1886 | 0.035 | 2.2167 |
| 1.000 | 0.930 | 28.57 | 0.1061 | 0.035 | 0.6793 |
| 1.250 | 1.180 | 35.71 | 0.1336 | 0.035 | 1.0936 |
| 0.375 | 0.335 | 18.75 | 0.0223 | 0.020 | 0.0881 |
| 0.375 | 0.319 | 13.39 | 0.0305 | 0.028 | 0.0799 |
| 1.750 | 1.902 | 40.82 | 0.3003 | 0.049 | 2.8413 |
| 0.500 | 0.334 | 6.02 | 0.1087 | 0.083 | 0.0876 |
| 0.625 | 0.569 | 22.32 | 0.0525 | 0.028 | 0.2543 |
| 0.750 | 0.694 | 26.79 | 0.0635 | 0.028 | 0.3783 |
| 0.750 | 0.680 | 21.43 | 0.0786 | 0.035 | 0.3632 |
| 2.000 | 1.930 | 57.14 | 0.2161 | 0.035 | 2.9255 |
| 2.000 | 1.902 | 40.82 | 0.3003 | 0.049 | 2.8413 |
| 0.875 | 0.819 | 31.25 | 0.0745 | 0.028 | 0.5268 |
| 1.000 | 0.944 | 35.71 | 0.0855 | 0.028 | 0.6999 |
| 0.625 | 0.585 | 31.25 | 0.0380 | 0.020 | 0.2688 |
| 1.250 | 1.152 | 25.51 | 0.1849 | 0.049 | 1.0423 |
ASTM A249 Grade 316 Exchanger Tube Weight Chart
| Dimensions | Wall | Weight per |
|---|---|---|
| (mm) | (mm) | metre (kg) |
| 40 x40 | 3.00 | 3.75 |
| 50 x50 | 1.50 | 2.32 |
| 50 x50 | 2.00 | 3.08 |
| 50 x50 | 3.00 | 4.65 |
| 60 x60 | 2.00 | 3.71 |
| 20 x 20 | 2.00 | 1.19 |
| 25 x 25 | 1.20 | 0.92 |
| 25 x 25 | 1.50 | 1.14 |
| 80 x80 | 2.00 | 4.98 |
| 80 x80 | 3.00 | 7.53 |
| 15 x 15 | 1.20 | 0.53 |
| 15 x 15 | 1.50 | 0.65 |
| 30 x 30 | 1.20 | 1.10 |
| 30 x 30 | 1.50 | 1.37 |
| 30 x 30 | 2.00 | 1.84 |
| 25 x 25 | 2.00 | 1.49 |
| 25 x 25 | 3.00 | 2.20 |
| 100 x 100 | 2.00 | 6.40 |
| 60 x60 | 3.00 | 5.49 |
| 70 x70 | 3.00 | 6.53 |
| 30 x 30 | 3.00 | 2.72 |
| 40 x40 | 1.20 | 1.49 |
| 40 x40 | 1.50 | 1.85 |
| 12.7 x 12.7 | 1.20 | 0.44 |
| 12.7 x 12.7 | 1.50 | 0.55 |
| 40 x40 | 2.00 | 2.45 |
| 20 x 20 | 1.20 | 0.71 |
| 20 x 20 | 1.50 | 0.88 |
| 100 x 100 | 3.00 | 9.53 |
Offer SA 249 TP 316 Superheater and Condenser Tube Furnished With Heat Treated Condition
| Heat Treatment Process | Typical Temperature Range |
|---|---|
| Solution Annealing | 1,000°C to 1,100°C (1,832°F to 2,012°F) |
| Stress Relieving | 600°C to 750°C (1,112°F to 1,382°F) |
| Normalizing | 950°C to 1,100°C (1,742°F to 2,012°F) |
| Tempering (Post-Welding) | 500°C to 700°C (932°F to 1,292°F) |
Most Common Types of ASTM A249 TP316 Tubes
Buy ASTM A249 GR 316 ERW Tube Online With Nominal Wall Thickness and Heavily Cold Worked
| NPS | Wall Thickness | |
|---|---|---|
| + | – | |
| ≥ 20, seamless, t/D≤ 5% | 22.5 | 12.5 |
| ≥ 20, seamless, t/D> 5% | 15.0 | 12.5 |
| 3~18, t/D> 5% | 15.0 | 12.5 |
| ≥ 20, welded | 17.5 | 12.5 |
| 1/8-2 1 /2 | 20.0 | 12.5 |
| 3~18, t/D≤ 5% | 22.5 | 12.5 |
How is the corrosion resistance of ASTM A249 TP316 tubes tested?
What is the maximum allowable stress for ASTM A249 TP316 Tubes at high temperatures?
| Temperature (°F) | Maximum Allowable Stress (MPa) | Maximum Allowable Stress (psi) |
|---|---|---|
| 100°F (38°C) | 207 MPa | 30,000 psi |
| 200°F (93°C) | 200 MPa | 29,000 psi |
| 300°F (149°C) | 193 MPa | 28,000 psi |
| 400°F (204°C) | 186 MPa | 27,000 psi |
| 500°F (260°C) | 179 MPa | 26,000 psi |
| 600°F (316°C) | 169 MPa | 24,500 psi |
| 700°F (371°C) | 158 MPa | 23,000 psi |
| 800°F (427°C) | 148 MPa | 21,500 psi |
| 900°F (482°C) | 138 MPa | 20,000 psi |
| 1000°F (538°C) | 128 MPa | 18,500 psi |
| 1100°F (593°C) | 117 MPa | 17,000 psi |
| 1200°F (649°C) | 103 MPa | 15,000 psi |
| 1300°F (704°C) | 90 MPa | 13,000 psi |
| 1400°F (760°C) | 83 MPa | 12,000 psi |
| 1500°F (816°C) | 76 MPa | 11,000 psi |
SA 249 316 SS Welded Austenitic Steel Tubes Testings
Tensile Test
Flattening Test
Flaring Test
Hydrostatic Test
Visual Inspection
Edging Test
Chemical Composition Test
Hardness Test
Impact Test
Weld Integrity Test
ASTM A249 TP316 Tube Equivalent
| Grade | UNS | JIS | WNR. / DIN | AFNOR |
|---|---|---|---|---|
| TP 316 | S31600 | SUS 316 | 1.4401 / 1.4436 | Z7CND17‐11‐02 |
SA 249 TP 316 Superheater Tube Chemical Composition
Mechanical Properties of ASTM A249 GR 316 ERW Tube
| Material | Yield Strength | Tensile Strength | Heat | Temperure | Elongation %, Min |
|---|---|---|---|---|---|
| Ksi (MPa), Min. | Ksi (MPa), Min. | Treatment | Min.º F(º C) | ||
| TP316 | 25(170) | 70(485) | Solution | 1900 (1040) | 35 |
ASTM A249 TP 316 Boiler Tube Physical Properties
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Thermal Conductivity (W/m.K) | Electrical Resistivity (n.m) | Mean Coefficient of Thermal Expansion (m/m/0C) | Elastic Modulus (GPa) | |||
|---|---|---|---|---|---|---|---|---|---|
| at 1000C | at 5000C | 0-1000C | 0-3150C | 0-5380C | |||||
| 316 | 8000 | 500 | 16.2 | 21.5 | 720 | 17.2 | 17.8 | 18.4 | 193 |
What is the recommended filler material for welding ASTM A249 TP316 Tubes?
| Welding Process | Filler Material | Filler Material Specification |
|---|---|---|
| TIG (GTAW) | ER316 | AWS A5.9 / ASME SFA-5.9 |
| MIG (GMAW) | ER316 | AWS A5.9 / ASME SFA-5.9 |
| Stick (SMAW) | E316-16 | AWS A5.4 / ASME SFA-5.4 |
| Submerged Arc (SAW) | SA 316 | AWS A5.9 |
ASTM A249 TP316 Tube Delivery Time As Per Location
| Cost Variations 5 % extra | |
|---|---|
| Export to | Delivery Time |
| South Africa | 25-30 |
| Uk | 30 |
| Bahrain | 9 |
| Singapore | 8 |
| UAE | 5 days |
| Qatar | 7 |
| Kuwait | 10 |
| Netherlands | 19-20 |
| Germany | 15-50 |
| Oman | 5 |
| France | 30 |
| Saudi Arabia | 7 |
| Malaysia | 10 |
| Belgium | 6-9 |
