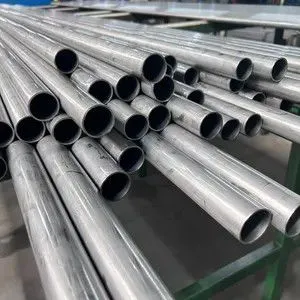

ASTM A249 Tube Manufacturer in China,ASTM A249 Stainless Tubes Supplier
US$ 100 - 300
MOQ: 1 Ton
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Tianjin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI/TIANJIN/XIAMEN
Delivery Detail:
25 days
Related Products
-
ASTM A249 / A249M Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser TubesUS$ 100 - 300MOQ: 1 Ton -
ASTM A312/ASTM General Purpose Ferritic/Austenitic Stainless Steel Seamless and Welded Steel Tube for Boilers Superheaters HeatUS$ 800 - 1100MOQ: 1 Ton
-
ASTM A249 ASME SA249 TP304 TP304L TP304H TP316L TP316Ti TP321 TP321H TP309S TP310S TP347H Welded Tubes PipeUS$ 750MOQ: 1 Ton
-
ASTM A249 TP304 Stainless Steel TubesUS$ 300 - 4000MOQ: 1 Ton
-
Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes ASTM A213/A335US$ 800 - 1100MOQ: 1 Ton
Model NO.
A249 stainless steel pipe
Certification
ISO, RoHS, IBR, AISI, ASTM, GB, EN, DIN, JIS
Shape
Round
Technique
Hot Rolled
Surface Treatment
Pickling
out Diameter
20-508mm
Thickness
1-50mm
Length
6m
Commodity
A249 Stainless Steel Tube
Transport Package
Export Standard Packing
Specification
42*2
Trademark
Wenzhou
Origin
China
HS Code
7304113000
Production Capacity
50000 Tons/Month
ASTM A249 Specifications
Tolerances of ASTM A249 Heat Exchanger Tube
Chemical Composition Of ASTM A249 Stainless Steel Welded Tubes
ASTM A249 Mechanical Properties
ASTM A249 Equivalent

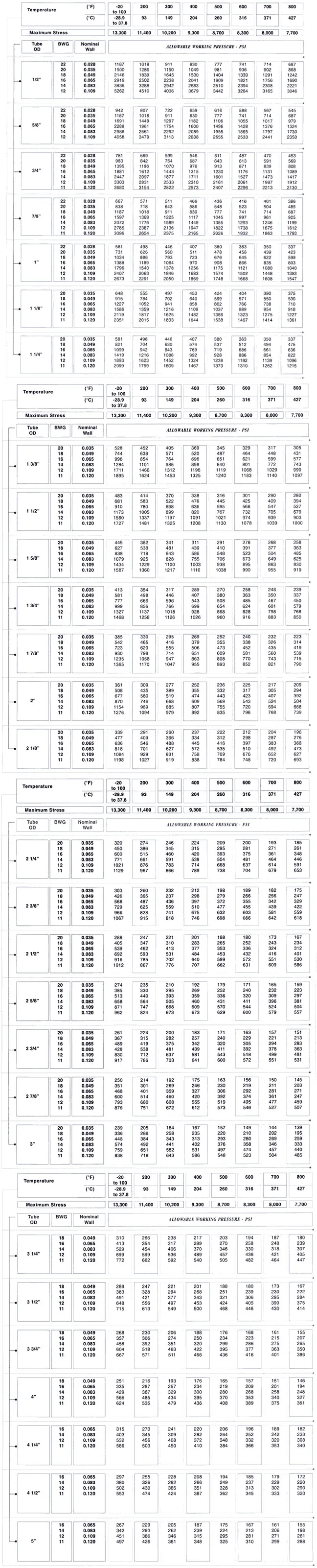

Welded Tube Pressure Rating For ASTM A249
Type: Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
Grades: TP304, TP304L, TP304H
Size: 1/8” NB to 5” NB, 1/4” OD to 5” OD sizes stainless steel seamless tubes also available
Length: Up to 6 meters, custom cut lengths
Thickness: 1mm to 13mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Finish: No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Pipes
Delivery Condition: Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived
ASTM A249 Tubing Sizes| NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
|---|---|---|---|---|---|
1/8″ |
|
|
|
|
|
1/4″ |
|
|
|
|
|
3/8″ |
|
|
|
|
|
1/2″ |
|
|
|
|
|
3/4″ |
|
|
|
|
|
1″ |
|
|
|
|
|
1 1/4″ |
|
|
|
|
|
1 1/2″ |
|
|
|
|
|
2″ |
|
|
|
|
|
2 1/2″ |
|
|
|
|
|
3″ |
|
|
|
|
|
4″ |
|
|
|
|
|
5″ |
|
|
|
|
|
6″ |
|
|
|
|
| Specification | Size OD Range Inches | Tolerances | |||
|---|---|---|---|---|---|
| O.D. | Wall | ||||
| Plus | Minus | Plus | Minus | ||
| ASTM-A-249 | Under 1.000 | .004" | .004" | 10% | l0% |
| ASME-SA-249 | 1.000 to 1.500 | .006" | .006" | 10% | 10% |
| Welded & Cold Worked | 1.501 to 1.999 | .008" | .008" | l0% | 10% |
| Heat Exchanger Tube | 2.000 to 2.499 | .010" | .010" | 10% | 10% |
| Average Wall | 2.500 to 2.999 | .012" | .012" | 10% | 10% |
| (see Note 1) | 3.000 to 4.000 | .015" | .015" | 10% | 10% |
| 4.001 to 5.000 | .015" | .025" | 10% | 10% | |
| ASTM-A-213 | Under 1.000 | .004" | .004" | 20% | 0% |
| ASME-SA-213 | 1.000 to 1.500 | .006" | .005" | 20% | 0% |
| Cold Finished Seamless | 1.501 to 1.999 | .008" | .008" | 22% | 0% |
| Heat Exchanger Tube | 2.000 to 2.499 | .010" | .010" | 22% | 0% |
| Minimum Wall | 2.500 to 2.999 | .012" | .012" | 22% | 0% |
| (see Note 2 & 3) | 3.000 to 4.000 | .015" | .015" | 22% | 0% |
| 4.001 to 5.000 | .015" | .025" | 22% | 0% | |
Notes (1) Also available in minimum wall + 18/-0%. (2) Also available in average wall ± 10% (3) Also available hot finished, see specification for tolerances. | |||||
| Grade | UNS No. | EN No. | C | Cr | Ni | Mo | Others |
| 304 | S30400 | 1.4301 | 0.08 | 18.00 – 20.00 | 8.00 – 12.00 | – | – |
| 304L | S30403 | 1.4307 | 0.035 | 18.00 – 20.00 | 8.00 – 12.00 | – | – |
| 310S | S31008 | 1.4845 | 0.08 | 24.00 – 26.00 | 19.00 – 22.00 | – | – |
| 316 | S31620 | 1.4401 | 0.08 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | – |
| 316L | S31603 | 1.4404 | 0.035 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | – |
| 316H | S31603 | – | 0.04 – 0.10 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | – |
| 316Ti | S31635 | 1.4571 | 0.08 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | Ti:5X(C+N) – 0.70 |
| 317L | S31703 | 1.4438 | 0.035 | 18.00 – 20.00 | 11.00 – 15.00 | 3.00 – 4.00 | – |
| 321 | S32100 | 1.4541 | 0.08 | 17.00 – 19.00 | 9.00 – 12.00 | – | Ti:5X(C+N) – 0.70 |
| 347 | S34700 | 1.4550 | 0.08 | 16.00 – 18.00 | 10.00 – 14.00 | – | – |
| 347H | S34709 | 1.4551 | 0.04 – 0.10 | 17.00 – 20.00 | 9.00 – 13.00 | – | – |
| Material | Heat treatment | Temperure F (C) Min. | Hardness | |
| Brinell | Rockwell | |||
| TP304 | Solution | 1900 (1040) | 192HBW/200HV | 90HRB |
| TP304L | Solution | 1900 (1040) | 192HBW/200HV | 90HRB |
| TP316 | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| TP316L | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| TP321 | Solution | 1900(1040) F | 192HBW/200HV | 90HRB |
| TP347 | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
|
EN-standard Steel no. k.h.s DIN |
EN-standard Steel name |
SAE grade | UNS |
| 1.4006 | X12Cr13 | 410 | S41000 |
| 1.4310 | X10CrNi18-8 | 301 | S30100 |
| 1.4318 | X2CrNiN18-7 | 301LN | |
| 1.4307 | X2CrNi18-9 | 304L | S3043 |
| 1.4306 | X2CrNi19-11 | 304L | S30403 |
| 1.4311 | X2CrNiN18-10 | 304LN | S30453 |
| 1.4301 | X5CrNi18-10 | 304 | S30400 |
| 1.4948 | X6CrNi18-11 | 304H | S30409 |
| 1.4303 | X5CrNi18-12 | 305 | S30500 |
| X5CrNi30-9 | 312 | ||
| 1.4841 | X22CrNi2520 | 310 | S31000 |
| 1.4845 | X 5 CrNi 2520 | 310S | S31008 |
| 1.4541 | X6CrNiTi18-10 | 321 | S32100 |
| 1.4878 | X12CrNiTi18-9 | 321H | S32109 |
| 1.4404 | X2CrNiMo17-12-2 | 316L | S31603 |
| 1.4401 | X5CrNiMo17-12-2 | 316 | S31600 |
| 1.4406 | X2CrNiMoN17-12-2 | 316LN | S31653 |
| 1.4432 | X2CrNiMo17-12-3 | 316L | S31603 |
| 1.4435 | X2CrNiMo18-14-3 | 316L | S31603 |
| 1.4436 | X3CrNiMo17-13-3 | 316 | S31600 |
| 1.4571 | X6CrNiMoTi17-12-2 | 316Ti | S31635 |
| 1.4429 | X2CrNiMoN17-13-3 | 316LN | S31653 |
| 1.4438 | X2CrNiMo18-15-4 | 317L | S31703 |
