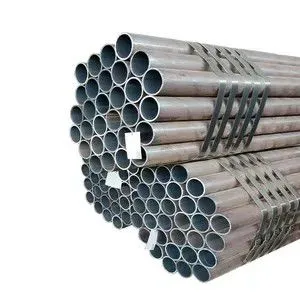

Help Center26mm 35mm 50mm 90mm 168mm 219mm Od Size DN 1717 ASTM A213 A53 A213 API Spec 5CT API Spec 5L Psl1 Steel Seamless Pipe
Related Products
-
ASTM A213 ASME SA213 T5 Seamless Alloy-Steel Tubes Used in Industrial Heat Exchangers in Petrochemical EngineeringUS$ 800 - 1100MOQ: 1 Ton -
ASMESA213 Seamless Ferritic and Austenitic Alloy Steel Pipes for Boilers, Superheaters and Heat ExchangersUS$ 800 - 1100MOQ: 1 Ton
-
ASME SA 249 TP 304 Welded Stainless Steel Tube Manufacturer, Supplier, Exporter in ChinaUS$ 750MOQ: 1 Ton
-
ASTM A249/ASME SA249 TP304/304L Stainless Steel Welded TubeUS$ 750MOQ: 1 Ton
-
Aviation Standard Superalloy AMS 5565 55304 316 Uns38815 Uns S32750 Austenitic Stainless Steel Tube Tp321h Cold Drawn Hastelloy Stainless Steel PipeUS$ 800 - 1100MOQ: 1 Ton
Steel Boiler Pipe is a type of seamless steel pipe that is specifically designed to withstand high pressure and temperatures in boiler and heat exchanger applications. It is made from high-quality carbon steel or alloy steel and is often used in power plants, refineries, and other industrial settings. Steel Boiler Pipe is available in various grades and sizes, and can be customized to meet the specific needs of different applications. With its superior strength, durability, and resistance to corrosion, Steel Boiler Pipe is a reliable and cost-effective solution for demanding industrial environments.
ASTM A213 seamless pipes tubes Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes This specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes. Grades containing the letter H in their designation have requirements different from those of similar grades not containing the letter H. These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements. The tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified. Grade TP347HFG shall be cold finished. Heat treatment shall be done separately and in addition to heating for hot forming. The ferritic alloy and ferritic stainless steels shall be reheated. On the other hand, austenitic stainless steel tubes shall be furnished in the heat-treated condition. Alternatively, immediately after hot forming, while the temperature of the tubes is not less than the minimum solution temperature, tubes may be individually quenched in water or rapidly cooled by other means. Tension test, hardness test, flattening test, and flaring test shall be done to each tube. Also, each tube shall be subjected to the nondestructive electric test or hydrostatic test.
ASTM A192 / A192M is the standard applicable to seamless carbon steel boiler tubes for high-pressure service
ASTM A192 seamless steel tube sizes and thicknesses usually furnished to this specification are 1⁄2 in. to 7 in. [12.7 to 177.8 mm] outside diameter and 0.085 to 1.000 in. [2.2 to 25.4 mm], inclusive, in minimum wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.
ASTM A192 seamless steel tubes mechanical property requirements do not apply to tubing smaller than 1⁄8 in. [3.2 mm] inside diameter or 0.015 in. [0.4 mm] thickness.
| Product Name | High Pressure boiler tube Galvanized Seamless Steel Tube for Boiler steam pipe |
| Material | Mo Steel, Cr-Mo Steel, Cr- Mo-W Steel |
| industry | Baosteel |

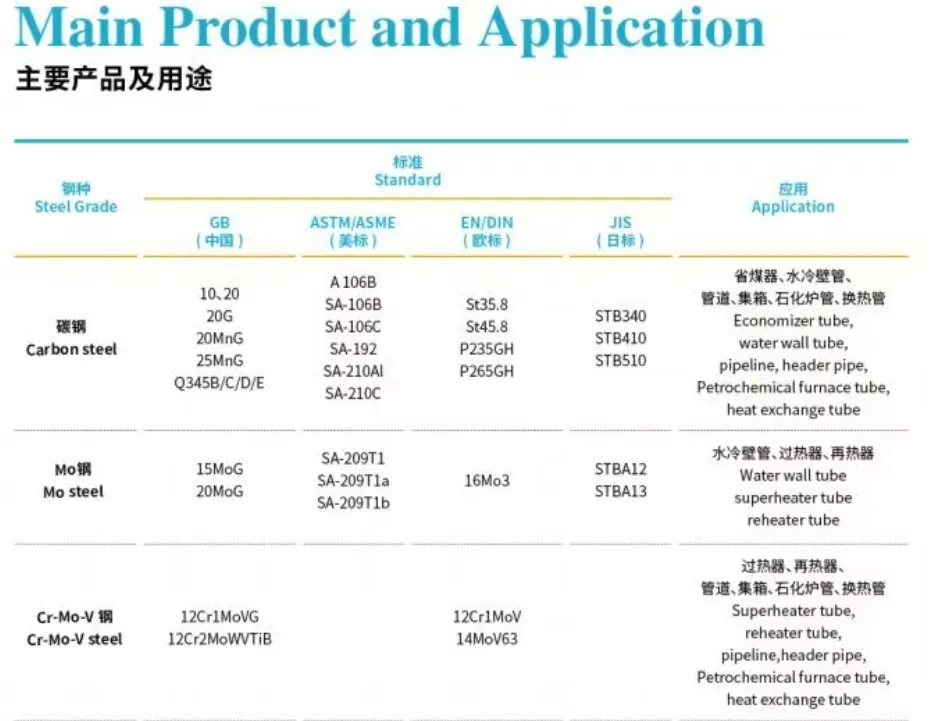

| Standard | ASME SA-106, ASME SA-192M. ASME SA-209M. ASME SA-210M.ASTM A 106M. ASTE A192M.EN 10216-2. DIN 17175, JIS G 3456. JIS G 3461. JIS G 3462 |
| Grade | SA-106B, SA-192. SA-210A1, SA-106C, SA-210C. SA-209T1. SA-213 T11. |
| Uses | For manufacture wall panel, economizer, reheater,superheater and steam pipeline of boilers |
| Steel Grade: | 106B,210A1,210C,P9,P11,T1,T11,T2,T5,T12,T22,T23,T91,T92,P235GH,13CrMo4-5,15Mo3,10CrMo9-10, ST35.8,ST45.8,STB340,STBA 12-2,API5L,5CT 304,304L,309S,310S,316,316L,317,317L,321,347,347H,304N,316L, 316N,201,202,S32205,S31803 |
| Standard: | ASME/ASTM SA/A53/513/106/209/210/213/335/178/179/519 ASME/ASTM SA/A213,A312,A269,A778,A789, DIN 17456, DIN17457,DIN 17459,DIN17175,EN10216,BS3605,BS3059 JIS G3458,JISG3459,JIS G3461,JIS G3462,JIS G3463 |
| Specification: | Outdiameter 10~508mm |
| Wt: | 1.0-30mm,or according to customer's special request |
| Length: | 2-20meters,or according to customer's special request |
| Package: | Export Standard Package |
| Typies of tube: | Boiler tube,precision tube,mechanical tubing,cylinder tube,line pipes,etc |
| Mill MTC: | Supplied before shipment |
| Inspection: | The Third Party inspection can be accepted,SGS,BV,TUV |
| Mount port: | Any port in China |
| Trade Term: | FOB,CIF,CFR,EXW,etc. |
| Price Term: | TT or LC at sight |
| Our services: | We can customized according to customer's requriement or drawing ,packaging according to customers' request |
| ASTM A179/(ASME SA179) | |
| Seamless Cold Drawn Low Carbon Steel Heat Exchanger And Conderser Tubes | |
| Application: |
For tubular heat exchangers,condensers,and similar heat transfer apparatus. |
| Size(mm): | O.D.:6.0~114.0 W.T.:1~15 L:max 12000 |

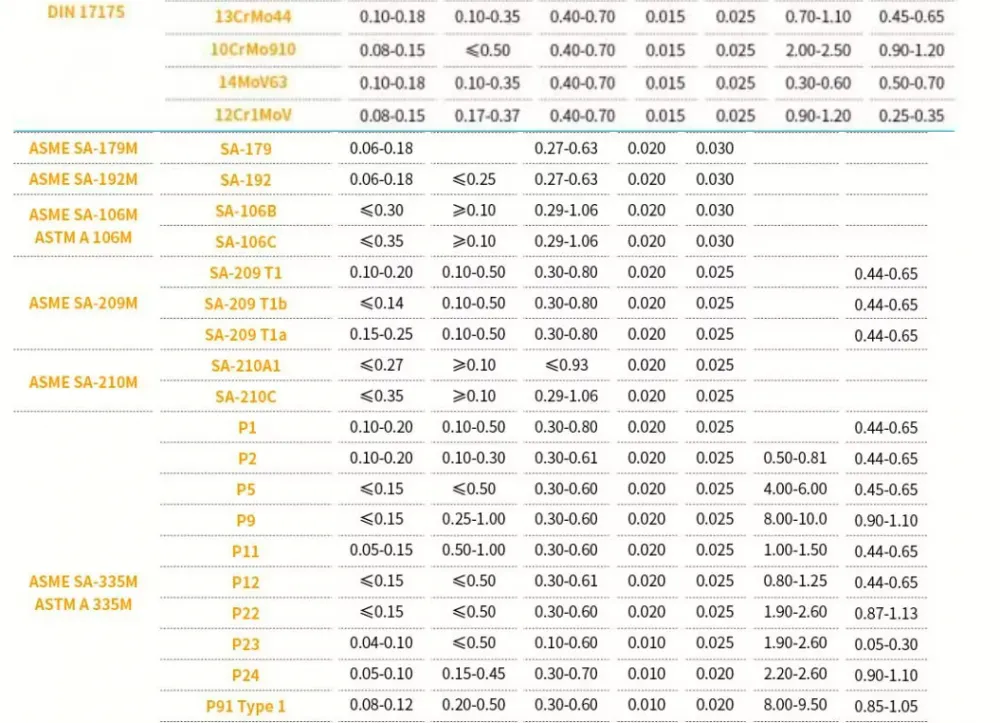

| Chemical Composition | C | Mn | P≤ | S≤ | Si≤ |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
| OD In (mm) | + | - | WT In(mm) | + | - |
| 0.10 | 0.10 | ≤1.1/2(38.1) | 20% | 0 | |
| 1~1.1/2(25.4~38.1) | 0.15 | 0.15 | >1.1/2(38.1) | 22% | 0 |
| >1.1/2~~50.8) | 0.20 | 0.20 | |||
| 2~~63.5) | 0.25 | 0.25 | |||
| 2.1/2~~76.2) | 0.30 | 0.30 | |||
| 3~4(76.2~101.6) | 0.38 | 0.38 | |||
| >4~7.1/2(101.6~190.5) | 0.38 | 0.64 | |||
| >7.1/2~9(190.5~228.6) | 0.38 |
1.14 |
|
ASTM A192/A192M-02 | |
| Seamless Carbon Steel Bolier Tubes for High-Pressure | |
| Application: |
For seamless carbon steel bolier and superheater tubes for high-pressure service |
| Size(mm): | O.D.:6.0~114.0 W.T.:1~15 L:max 12000 |
|
Chemical Composition |
C | Mn | P≤ | S≤ | Si≤ |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
| OD In (mm) | + | - | WT In(mm) | + | - |
| 0.10 | 0.10 | ≤1.1/2(38.1) | 20% | 0 | |
| 1~1.1/2(25.4~38.1) | 0.15 | 0.15 | >1.1/2(38.1) | 22% | 0 |
| >1.1/2~~50.8) | 0.20 | 0.20 | |||
| 2~~63.5) | 0.25 | 0.25 | |||
| 2.1/2~~76.2) | 0.30 | 0.30 | |||
| 3~4(76.2~101.6) | 0.38 | 0.38 | |||
| >4~7.1/2(101.6~190.5) | 0.38 | 0.64 | |||
| >7.1/2~9(190.5~228.6) | 0.38 | 1.14 |

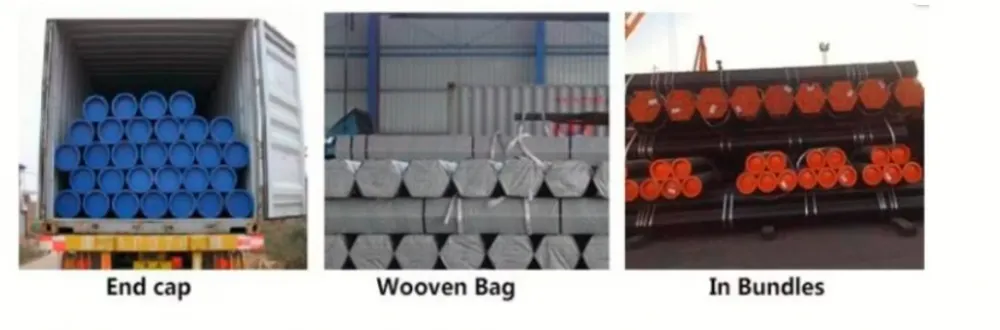

1) Packaging: 3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve or as customers' requirements.
2) Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
3) Trade terms: FOB/CIF/CFR/EXW
4) Shipping port: Tianjin/Qingdao
5) Shipment: A: Length: ≤6m, loaded in 20GP Container. B: Length: ≤12m, loaded in 40GP Container.
Remark: Size of 20GP Container (inside :5898*2352*2393mm); Size of 40GP Container (inside:12032*2352*2393mm); Size of 40HQ Container (inside:12032*2352*2698mm).
6) Delivery time: Normal size: 7-15days send from warehouse directly. Special size:15-25days.
