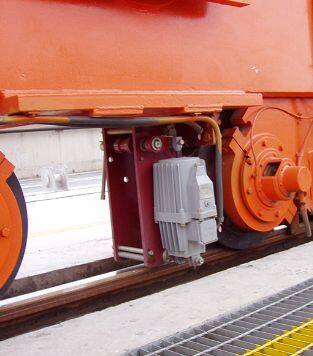

YXZ Series Electric Hydraulic Windproof Iron Wedge for Port Crane

Electric hydraulic windproof iron wedge

YXZ series electric hydraulic windproof iron wedges are mainly used for windproof and auxiliary windproof braking of outdoor large and medium-sized cranes and port loading and unloading machinery in working and non working states.

MAIN FEATURE

1. Equipped with a release limit switch for signal display or interlock protection.

2. The main swing hinge points are equipped with self-lubricating bearings, which have high transmission efficiency, sensitive and reliable action, and long service life.

3. It has a manual release function and is easy to maintain.

4. Matching Ed with reset spring pusher, excellent action performance, good sealing performance, and high protection level of the shell; And it has a spring reset function to prevent the wedge block from resetting in a timely manner due to the insensitive action of the pusher after power failure.

5. Anti corrosion design, wedge block treated with special technology, high friction coefficient.

BASIC PARAMETER

YXZ series electric hydraulic windproof iron wedge:

Product model: YXZ-250/80、YXZ-350/80、YXZ-400/80、YXZ-440/80、YXZ-500/80、YXZ-550/80、YXZ-600/80、YXZ-630/80、YXZ-700/80、YXZ-710/80、YXZ-800/80

Brake wheel diameter (mm): 250, 350, 400, 440, 500, 550, 600, 630, 700, 710, 800
