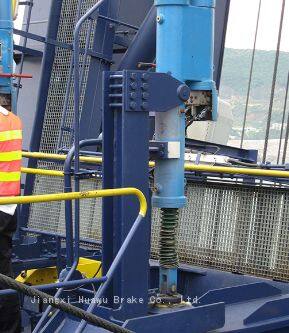

Electro-Hydraulic Pushers

DYT series Electro-hydraulic pusher is hydraulic drive device which integrates electricity,mechanism and hydraulics.It is widely used as drive and control device for various valves, penstock,pendulum and steering mechanism in metallurgical, building,chemical,port handling machinery and cranes.It is a deal solution for replacing the traditional power-driven pusher,oil cylinder (driven by hydraulic power unit) and air cylinder (driven and controlled by air pump unit).

DYT□1 Series electro-hydraulic pushers：

Pull/thrust (10N）：400/630、500/800、630/1000、800/1250、1250/2000
Max.stroke (mm)：620、900、1000、1250、1400

DYT□2 Series electro-hydraulic pushers：

Pull/thrust (10N）：800/1000、1250/1600、2000/2500、3200/4200、5000/6500、7500/10000
Max.stroke (mm)：400、550、800、1000、1400、1800

DYT□3 Series electro-hydraulic pushers：

Pull/thrust (10N）：1250/1600、2000/2500、3200/4000、5000/6500、8000/10000、11500/15000
Max.stroke (mm)：550、800、1000、1400、1800、2200
