3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1

3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1 thumbnail-1
3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1 thumbnail-2
3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1 thumbnail-3
3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1 thumbnail-4
3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1 thumbnail-5
3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1 photo-1

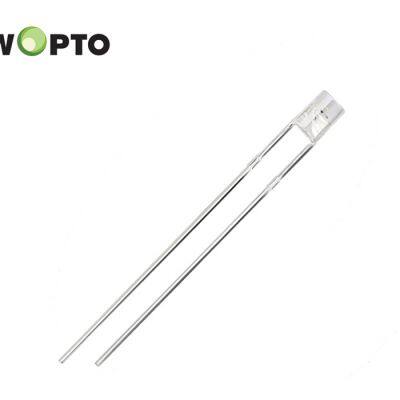

3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1 photo-2

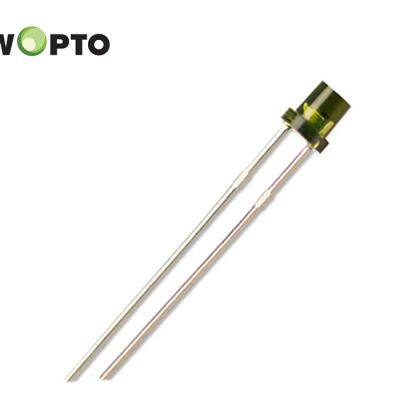

3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1 photo-3

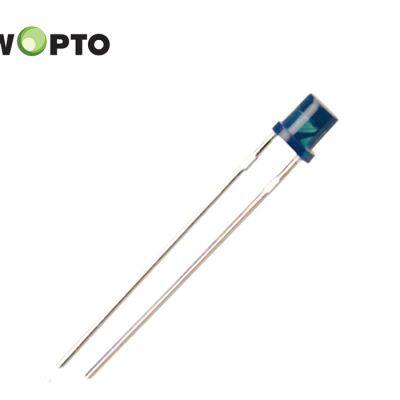

3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1 photo-4

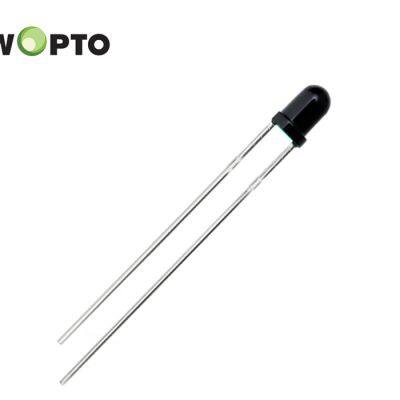

3mm Light Sensor, Phototransistor, Photodiode, Photo Sensor XYC-PT3A850AC-A1 photo-5
Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Newopto
Model Number:
XYC-PT3A850AC-A1
Output:
Other, photo sensor
Contact Supplier Request Quote Chat Now
Huizhou Newopto Electronic Products Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Huizhou
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Newopto
Model Number XYC-PT3A850AC-A1
Output Other, photo sensor
9. NEWOPTO Light Sensor - DIP 3mm Light Sensor

Model Number Collold Color Dimensions Operating voltage
(Typ.)		 Power dissipation Peak wavelength
(Typ.)		 Spectral
Response		 Light Current (typ)
μA		 Infrared Receiving Current Dark Current (Max) Rise Time
/Fall time

mm Vcc PC λp λ IL(1)
VCC=5V Ev=10Lux		 IL(2)
VCC=5V Ev=30Lux		 IL(3)
VCC=5V Ev=100Lux		 IIR
IL(4)		 Id Tr/Tf

XYC-PT3E550AC-IC clear 3*4.05*3.85 5V
(Min 1V
Max 10V)		 70mW 550nm  400-700nm Min. 7
Typ. 13
Max. 20		 Min.21
Typ. 42
Max. 60		 Min. 70
Typ. 130
Max. 200		 / 0.8μA 4.5ms/4.5ms

XYC-PT3E550BC-I5 dark blue 3*4.05*3.85 5V
(Min 1.5V
Max 5.5V)		 70mW 550nm  400-700nm Min. 1.0
Typ. 1.8
Max. 3.0		 Min. 3.0
Typ. 5.6
Max. 9.0		 Min. 10
Typ. 18
Max. 30		 Max 0.1μA 0.8μA 4.5ms/4.5ms

XYC-PT3E550BC-I6 dark blue 3*4.05*3.85 5V
(Min 1.5V
Max 5.5V)		 70mW 550nm  400-700nm Min. 2.0
Typ. 3.5
Max. 6.0		 Min. 6.0
Typ. 10.5
Max. 18		 Min. 20
Typ. 35
Max. 60		 Max 0.3μA
 0.4μA 4.5ms/4.5ms

XYC-PT3E550BC-I8 dark blue 3*4.05*3.85 5V
(Min 1V
Max 5V)		 70mW 550nm  400-700nm Min. 1.4
Typ. 2.5
Max. 4.2		 Min. 4.2
Typ. 7.5
Max. 12.6		 Min. 14
Typ. 25
Max. 42		 Max 0.5μA 0.4μA 4.5ms/4.5ms

XYC-PT3E550BC-IC dark blue 3*4.05*3.85 5V
(Min 1V
Max 10V)		 70mW 550nm  400-700nm Min. 2.0
Typ. 3.5
Max. 6.0		 Min. 6.0
Typ. 10.5
Max. 18		 Min. 20
Typ. 35
Max. 60		 Max 0.3μA 0.8μA 4.5ms/4.5ms

XYC-PT3E550BC-I9 dark blue 3*4.05*3.85 5V
(Min 1V
Max 10V)		 70mW 550nm  400-700nm Min. 2.0
Typ. 4.0
Max. 6.0		 Min. 6.0
Typ. 12
Max. 18		 Min. 20
Typ. 40
Max. 60		 Max 0.3μA
 0.3μA 4.5ms/4.5ms

XYC-PT3P520GC-I6 dark green 3*3.95*4.1 5V
(Min 1V
Max 10V)		 70mW 520nm  400-700nm Min. 1.5
Typ. 2.8
Max. 4.5		 Min. 4.5
Typ. 8.4
Max. 13.5		 Min. 15
Typ. 28
Max. 45		 Max 0.3μA 0.4μA 4.5ms/4.5ms

XYC-PT3P520GC-IC dark green 3*3.95*4.1 5V
(Min 1V
Max 10V)		 70mW 520nm  400-700nm Min. 1.5
Typ. 2.8
Max. 4.5		 Min. 4.5
Typ. 8.4
Max. 13.5		 Min. 15
Typ. 28
Max. 45		 Max 0.3μA 0.8μA 4.5ms/4.5ms

Model Number Collold Color Dimensions Collector-emitter Breakdown Voltage Emitter-Collector Breakdown Voltage Power dissipation Peak wavelength
(Typ.)		 Spectral
Response		 Collector- Emitter saturation voltage Light Current (typ)
(μA)		 Infrared Receiving Current
(μA)		 Dark Current
(μA)		 Opening Time
/Closing Time
mm VCEO VECO PC λp λ Vce
(sat)		 IL(1)
VCC=5V Ev=10Lux		 IL(2)
VCC=5V Ev=30Lux		 IL(3)
VCC=5V Ev=100Lux		 IL(4) ICEO Tr/Tf
XYC-PT3E560BC-A6 dark blue 3*4.05*3.85 60V 7V 70mW 560nm 400-700nm Max. 1V Min. 3
Typ. 6.5
Max. 9.5		 Min. 9
Typ. 19.5
Max. 28.5		 Min. 30
Typ. 65
Max. 95		 Max. 0.3 Typ. 6μA 40us /60us
XYC-PT3E560BC-A9 dark blue 3*4.05*3.85 60V 7V 70mW 560nm 400-700nm Max. 1V Min. 5
Typ. 9
Max. 15		 Min. 15
Typ. 19.5
Max. 45		 Min. 50
Typ. 65
Max. 150		 Max. 0.3 Typ. 15μA 40us /60us
Model Number Collold Color Dimensions Collector-emitter Breakdown Voltage Emitter-Collector Breakdown Voltage Power dissipation Peak wavelength
(Typ.)		 Spectral
Response		 Collector- Emitter saturation voltage Light Current (typ)
(μA)		 Dark Current
(μA)		 Opening Time Closing Time
mm VCEO VECO PC λp λ Vce
(sat)		 IL(1)
VCC=5V Ev=10Lux		 IL(2)
VCC=5V Ev=30Lux		 IL(3)
VCC=5V Ev=100Lux		 ICEO Tr Tf
XYC-PT3A850AC-A1 clear 3*3.85*5.3 30V 3V 70mW 850nm  400-1100nm Max. 0.2V
 Min. 30
Typ. 50
Max. 90		 Min. 90
Typ. 150
Max. 270		 Min.300
Typ. 500
Max. 900		 Max. 0.1μA
@VCE=5V
Ev=0Lux		 15us
15us
XYC-PT3A850AC-A2 clear 3*3.85*5.3 30V 6V 70mW 850nm  400-1100nm Max. 0.4V
 Min. 15
Typ. 30
Max. 45		 Min. 45
Typ. 90
Max. 135		 Min. 150
Typ. 300
Max. 450		 Max. 0.1μA
@VCE=5V
Ev=0Lux		 15us
15us
XYC-PT3A850AC-A4 clear 3*3.85*5.3 30V 3V 70mW 850nm  400-1100nm Max. 0.4V
 Min. 15
Typ. 30
Max. 45		 Min. 45
Typ. 90
Max. 135		 Min. 150
Typ. 300
Max. 450		 Max. 0.1μA
@VCE=5V
Ev=0Lux		 15us
15us
XYC-PT3A850AC-C4 clear 3*3.85*5.3 70V 5V 70mW 850nm  400-1100nm Max. 0.4V
 Min. 20
Typ. 35
Max. 60		 Min. 60
Typ. 81
Max. 180		 Min. 200
Typ. 270
Max. 600		 Max. 0.1μA
@VCE=5V
Ev=0Lux		 15us
15us
XYC-PT3E850AC-A1 clear 3*4.05*3.85 30V 3V 70mW 850nm 400-1100nm Max. 0.4V
 Min. 3
Typ. 5
Max. 7.5		 Min. 9
Typ. 15
Max. 22.5		 Min. 30
Typ. 50
Max. 75		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3E850AC-A2 clear 3*4.05*3.85 30V 6V 70mW 850nm 400-1100nm Max. 0.4V
 Min. 1.5
Typ. 3
Max. 4.5		 Min. 4.5
Typ. 9
Max. 13.5		 Min. 15
Typ. 30
Max. 45		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3E850AC-B1 clear 3*4.05*3.85 30V 6V 70mW 850nm 400-1100nm Max. 0.4V
 Min. 3
Typ. 5
Max. 7.5		 Min. 9
Typ. 15
Max. 22.5		 Min. 30
Typ. 50
Max. 75		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3E850AC-C4 clear 3*4.05*3.85 70V 5V 70mW 850nm 400-1100nm Max. 0.2V
 Min. 1.6
Typ. 3.0
Max. 4.8		 Min. 4.8
Typ. 9
Max. 14.4		 Min. 16
Typ. 30
Max. 48		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3E850AC-L1 clear 3*4.05*3.85 30V 3V 70mW 850nm 400-1100nm Max. 0.4V
 Min. 3
Typ. 5
Max. 7.5		 Min. 9
Typ. 15
Max. 22.5		 Min. 30
Typ. 50
Max. 75		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3E850DC-A2 dark 3*4.05*3.85 30V 6V 70mW 850nm 400-1100nm Max. 0.4V
 Min. 0.2
Typ. 0.3
Max. 0.4
@VCE=5V Ee=1mW/cm2		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3E940FC-A1 dark 3*4.05*3.85 30V 3V 70mW 940nm 860-1100nm Max. 0.4V
 Min. 0.4
Typ. 0.6
Max. 0.8
@VCE=5V Ee=1mW/cm2		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3E940FC-A2 dark 3*4.05*3.85 30V 6V 70mW 940nm 860-1100nm Max. 0.4V
 Min. 0.2
Typ. 0.3
Max. 0.4
@VCE=5V Ee=1mW/cm2		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3HB940FC-A1 black 3*3*5.1 30V 6V 70mW 940nm 860-1100nm Max. 0.4V
 Min. 0.8
Typ. 1.4
Max. 2.0
@VCE=5V Ee=1mW/cm2		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3J850AC-A1 clear 3*3*3.8 30V 3V 70mW 850nm 400-1100nm Max. 0.4V
 Min. 4
Typ. 7
Max. 10		 Min. 12
Typ. 21
Max. 30		 Min. 40
Typ. 70
Max. 100		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3P850AC-C4 clear 3*3.95*4.1 70V 5V 70mW 850nm 400-1100nm Max. 0.2V
 Min. 1.5
Typ. 3
Max. 4.5		 Min. 4.5
Typ. 9
Max. 13.5		 Min. 15
Typ. 30
Max. 45		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
XYC-PT3R850AC-A1 clear 3*3*4.7 30V 3V 70mW 850nm 400-1100nm Max. 0.4V
 Min. 4
Typ. 7
Max. 10		 Min. 12
Typ. 21
Max. 30		 Min. 40
Typ. 70
Max. 100		 Max 0.1μA
@VCE=5V Ev=0Lux		 15us
15us
