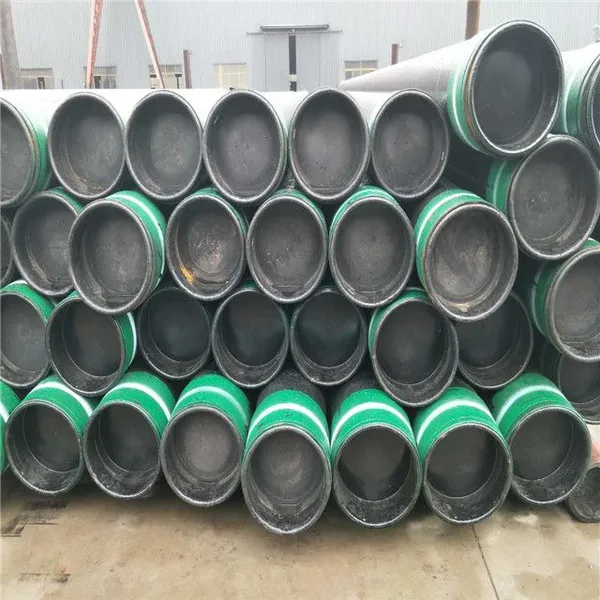

‌High-Strength 7" (177.8mm) Seamless Casing API-5CT – 10.36mm Wall‌

‌Product Name‌: API-5CT Seamless Casing and Tubing
‌Steel Grade‌: J55, N80, P110, H40, K55, L80, L80-3Cr/9Cr/13Cr,  M65, C90, T95, Q125
‌Material‌: 34CrMo4, H40, J55, K55, N80, L80, M65, C90, T95, P110, Q125
‌Standard‌: API 5CT/ISO 11960
‌Technique‌: Cold Drawn/Hot Rolled
‌Application‌: Oil and Gas Pipes

‌Outer Diameter Ranges‌:

• ‌Tubing‌: 48.26mm~114.3mm (1.05 inches~4 1/2 inches)

• ‌Casing‌: 114.3mm~762mm (4 1/2 inches~30 inches)
  ‌Wall Thickness‌: 2.87mm~30mm (compliant with API 5CT standards)
  ‌Length Ranges‌:

• ‌Tubing‌:

• R1: 6.10m~7.32m

• R2: 8.53m~9.75m

• R3: 11.58m~12.80m

• ‌Casing‌:

• R1: 4.88m~7.62m

• R2: 7.62m~10.36m

• R3: 10.36m~14.63m
  ‌End-Finish Types‌:

• ‌Tubing‌: P, I, N, U

• ‌Casing‌: P, S, B, L

‌Product Features‌:

1. ‌Material Optimization‌:

• Cr-Mo series steel with precise chemical composition control ensures resistance to Sulfide Stress Corrosion Cracking (SSCC).

• Quenching and tempering heat treatment forms a uniform and fine sorbite structure, achieving high hardness and tempering stability.

2. ‌Heat Treatment Process‌:

• Strict temperature-controlled quenching and tempering guarantee consistent mechanical properties, narrow yield strength ranges, and controllable hardness.

3. ‌Sulfide Corrosion Resistance‌:

• Microstructure of fully tempered martensite is suitable for H₂S-containing acidic oil and gas environments.

• Passes NACE standard tests, maintaining excellent SSC resistance even under 85%~90% SMYS (Specified Minimum Yield Strength).

‌Inspection Standards‌:

• ‌Non-destructive Testing‌:

• Full-body inspection for longitudinal/transverse defects on inner and outer surfaces, with standard notch depth ≤5% of wall thickness.

• Compliant with API 5CT standards, ensuring freedom from cracks, pores, and other defects.

‌Packaging & Delivery‌:

• ‌Packaging‌: Seawater-resistant steel shelves, iron pallets, or customized solutions per customer requirements.

• ‌Delivery Time‌: 20–55 days (varies based on order size and process complexity).

• ‌Minimum Order Quantity (MOQ)‌: 20 tons.

‌Application Scenarios‌:

• ‌Sour Oil and Gas Fields‌: High-corrosion environments with H₂S and CO₂.

• ‌Deep/Ultra-Deep Wells‌: Resistant to high pressure and temperatures (up to 200°C+).

• ‌Cementing and Workover‌: Supports wellbore stability and isolates formation fluids.

‌Certification & Surface Treatment‌:

• ‌Certification‌: API pipe certification.

• ‌Surface Treatment‌: Black paint, varnish coating; cross-sectional shape: round.

• ‌Origin‌: China.

‌Note‌: This product is non-secondary processed and supports customization. Contact the supplier for technical agreements.
