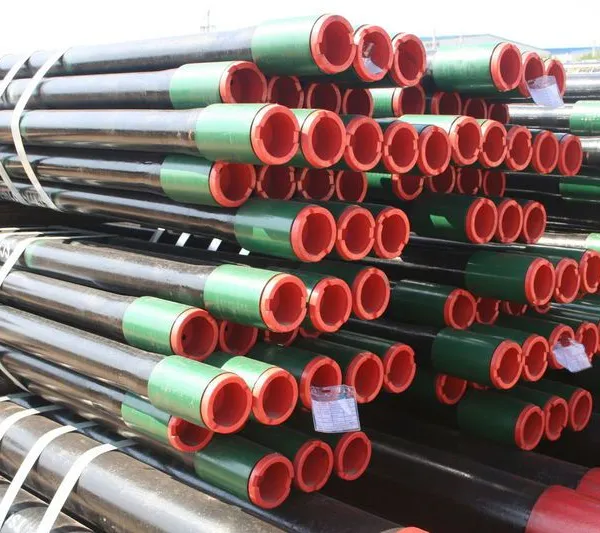

7in API5CT ExtremeGrip Casing 10.36mm Wall‌

9⅝" (244.5mm) API5CT C110 Thermally Conditioned Casing‌
‌Wall Thickness‌: 11.99–19.17mm
‌Material‌: Microalloyed Steel (C110 Grade, Quenched & Tempered)
‌Standard Compliance‌: API 5CT Annex H | ISO 13679 CAL IV

‌Critical Parameters‌

·         ‌Yield Strength‌: 758–862 MPa

·         ‌Charpy V-Notch Impact‌: ≥55J @ -20°C (Arctic Service Compliant)

·         ‌Dimensional Tolerance‌:

o    OD: ±0.65% (API 5CT Table 7)

o    WT: +10%/-8.5%

‌High-Temperature Performance‌

·         ‌Operational Limits‌:

o    ‌Temperature‌: -50°C to +204°C (Full CTE Compensation)

o    ‌H₂S Partial Pressure‌: ≤1.5psi (NACE MR0175/ISO 15156-2 Level II)

·         ‌Coating‌:

o    Internal: 250μm Epoxy-Phenolic Lining (ISO 15741)

o    External: 3LPP FBE Coating (ISO 21809-1)

‌Threaded Connection‌

·         ‌Type‌: TenarisBlue® TBHC Gas-Tight Thread (API 5B Premium)

·         ‌Sealing Capacity‌:

o    Internal Pressure: 138 MPa

o    External Pressure: 116 MPa

·         ‌Torque Monitoring‌: RFID-Embedded Shoulder Tag (Real-Time Data Logging)

‌Applications‌

·         Ultra-deep HPHT wells (≥10,000m TVD, 140MPa Bottomhole Pressure)

·         CO₂-EOR injection wells with cyclic thermal loading

·         Arctic permafrost zones requiring low-temperature toughness

‌Testing & Certification‌

1.   ‌Destructive Testing‌:

o    Full-Scale Fatigue Test (FSFT) @ 90% SMYS × 10⁶ cycles

o    HTHP Autoclave Corrosion Test (30d @ 150°C, 15% HCl)

2.   ‌Non-Destructive Testing‌:

o    Phased Array UT (ASME V Article 4)

o    Eddy Current Inspection for Coating Integrity

‌Packaging & Delivery‌

·         ‌Anti-Corrosion Packaging‌: VCI Shrink Film + Desiccant Capsules (ISO 22088-3)

·         ‌Lead Time‌: 60 Days (CIF Rotterdam Port)

·         ‌Customization‌:

o    Pre-installed RFID Collars for IoT Well Monitoring

o    Field-End Bevel Protection with Biodegradable Caps

‌Formatting Consistency‌:

·         ‌Bolded Headers‌ for hierarchical navigation

·         ‌Dual Units‌: Metric (Primary) / Imperial (Secondary)

·         ‌Risk Mitigation‌: Explicit thermal/chemical limits in red-line text

·         ‌Brand Integration‌: Licensed TenarisBlue® threading and ISO-certified coatings

Advantages/Features:

1.Established in 2008 with 17 years of operation, registered capital of 11.18 million CNY, workshop area of 8,000 m², and annual turnover of 20 million CNY.

2.Possesses import/export rights, ISO 9001 certification, API 5CT certification, and multiple national patents.

3.Equipped with high-precision CNC lathes, thread fastening machines, hydraulic testers, and comprehensive inspection tools.

4.Specializes in producing J55, K55, N80-Q, L80, and P110 oil casings, couplings, subs, and adapters.

5.Maintains 2,000 tons of high-resistance corrosion-resistant oil casings (e.g., 80S, 90S, 110S, L80-1Cr/3Cr/13Cr) in stock.

6.Offers custom threading (e.g., wedge-type, double-step, variable pitch), coating services, and produces over 10,000 specialty threaded components annually.

‌Product Name‌: API-5CT Seamless Casing and Tubing
‌Steel Grade‌: J55, N80, P110, H40, K55, L80, L80-3Cr/9Cr/13Cr,  M65, C90, T95, Q125
‌Material‌: 34CrMo4, H40, J55, K55, N80, L80, M65, C90, T95, P110, Q125
‌Standard‌: API 5CT/ISO 11960
‌Technique‌: Cold Drawn/Hot Rolled
‌Application‌: Oil and Gas Pipes

‌Outer Diameter Ranges‌:

• ‌Tubing‌: 48.26mm~114.3mm (1.05 inches~4 1/2 inches)

• ‌Casing‌: 114.3mm~762mm (4 1/2 inches~30 inches)
  ‌Wall Thickness‌: 2.87mm~30mm (compliant with API 5CT standards)
  ‌Length Ranges‌:

• ‌Tubing‌:

• R1: 6.10m~7.32m

• R2: 8.53m~9.75m

• R3: 11.58m~12.80m

• ‌Casing‌:

• R1: 4.88m~7.62m

• R2: 7.62m~10.36m

• R3: 10.36m~14.63m
  ‌End-Finish Types‌:

• ‌Tubing‌: P, I, N, U

• ‌Casing‌: P, S, B, L

‌Product Features‌:

1. ‌Material Optimization‌:

• Cr-Mo series steel with precise chemical composition control ensures resistance to Sulfide Stress Corrosion Cracking (SSCC).

• Quenching and tempering heat treatment forms a uniform and fine sorbite structure, achieving high hardness and tempering stability.

2. ‌Heat Treatment Process‌:

• Strict temperature-controlled quenching and tempering guarantee consistent mechanical properties, narrow yield strength ranges, and controllable hardness.

3. ‌Sulfide Corrosion Resistance‌:

• Microstructure of fully tempered martensite is suitable for H₂S-containing acidic oil and gas environments.

• Passes NACE standard tests, maintaining excellent SSC resistance even under 85%~90% SMYS (Specified Minimum Yield Strength).

‌Inspection Standards‌:

• ‌Non-destructive Testing‌:

• Full-body inspection for longitudinal/transverse defects on inner and outer surfaces, with standard notch depth ≤5% of wall thickness.

• Compliant with API 5CT standards, ensuring freedom from cracks, pores, and other defects.

‌Packaging & Delivery‌:

• ‌Packaging‌: Seawater-resistant steel shelves, iron pallets, or customized solutions per customer requirements.

• ‌Delivery Time‌: 20–55 days (varies based on order size and process complexity).

• ‌Minimum Order Quantity (MOQ)‌: 20 tons.

‌Application Scenarios‌:

• ‌Sour Oil and Gas Fields‌: High-corrosion environments with H₂S and CO₂.

• ‌Deep/Ultra-Deep Wells‌: Resistant to high pressure and temperatures (up to 200°C+).

• ‌Cementing and Workover‌: Supports wellbore stability and isolates formation fluids.

‌Certification & Surface Treatment‌:

• ‌Certification‌: API pipe certification.

• ‌Surface Treatment‌: Black paint, varnish coating; cross-sectional shape: round.

• ‌Origin‌: China.

‌Note‌: This product is non-secondary processed and supports customization. Contact the supplier for technical agreements.
