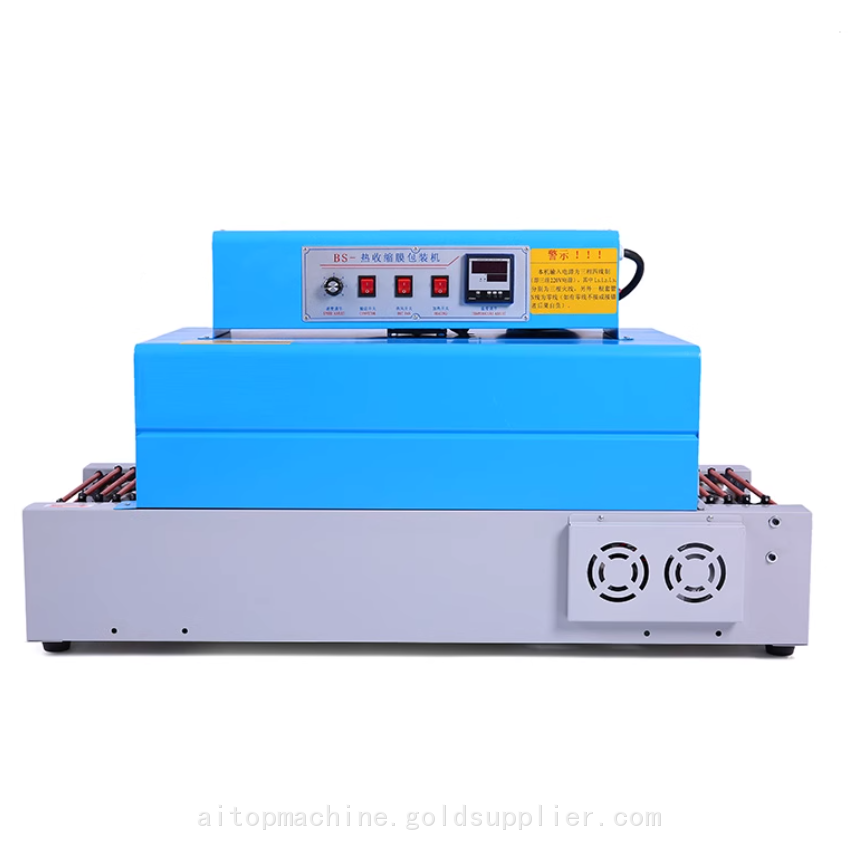

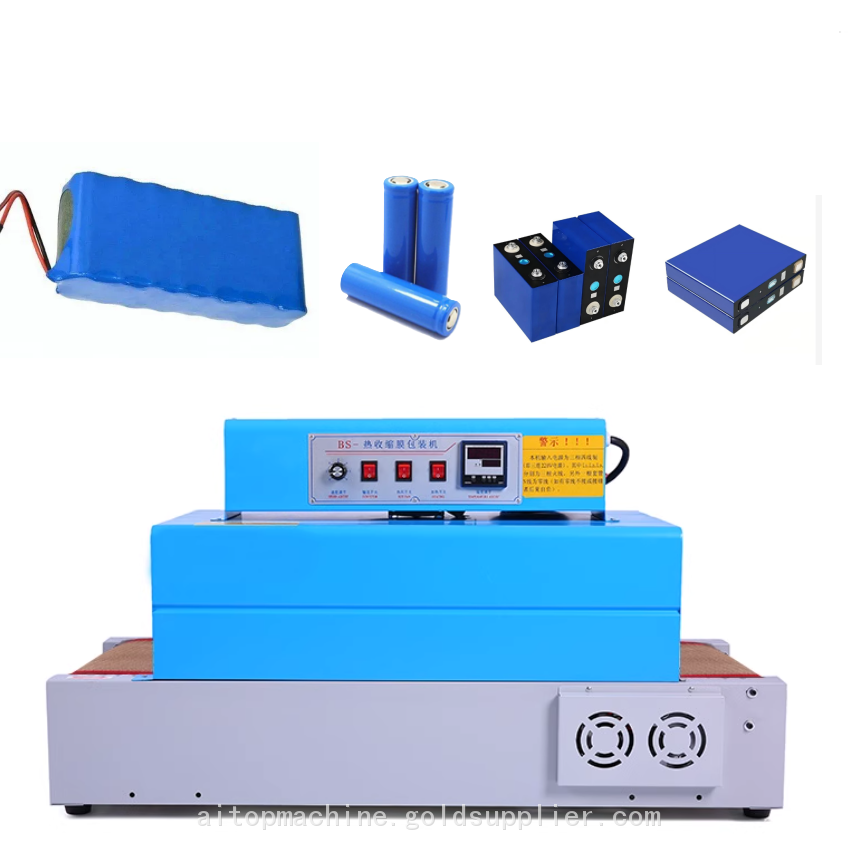

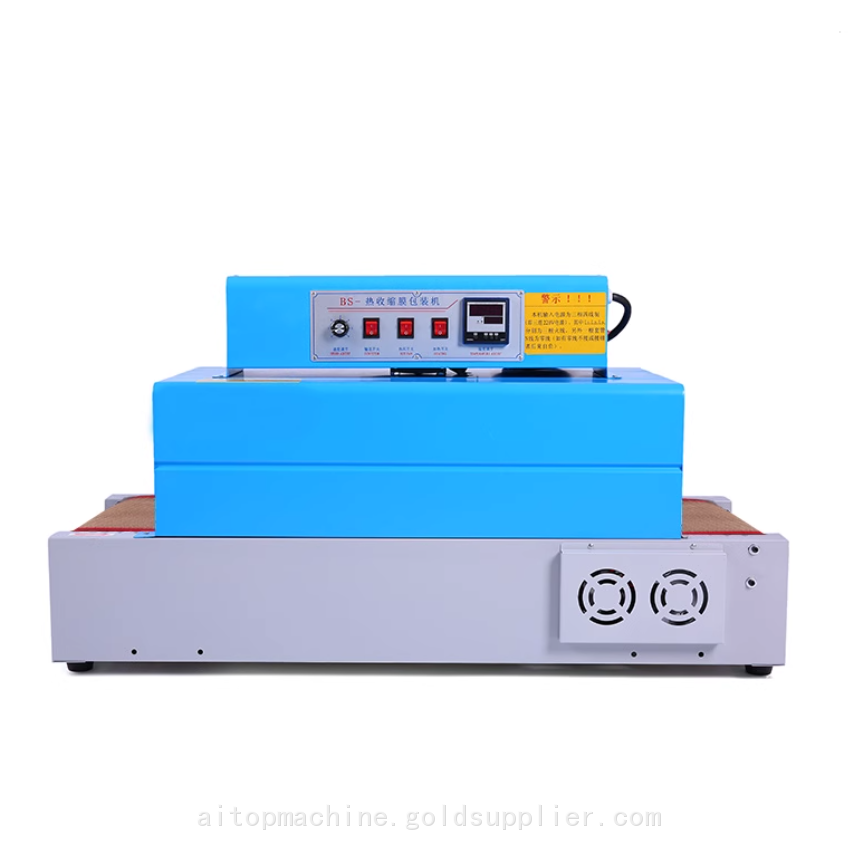

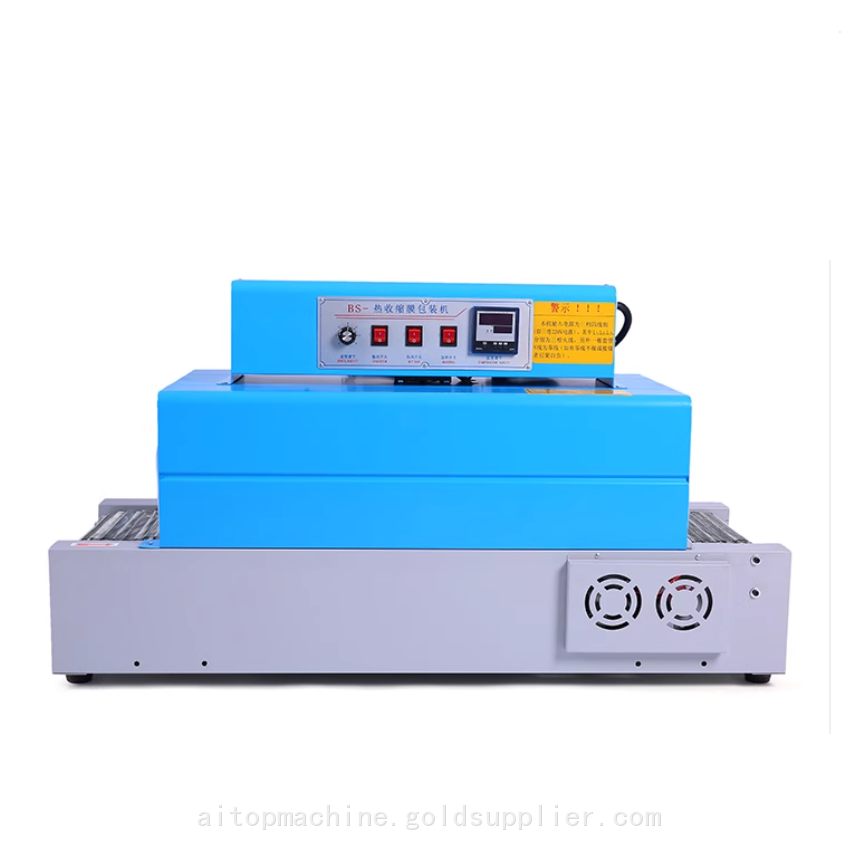

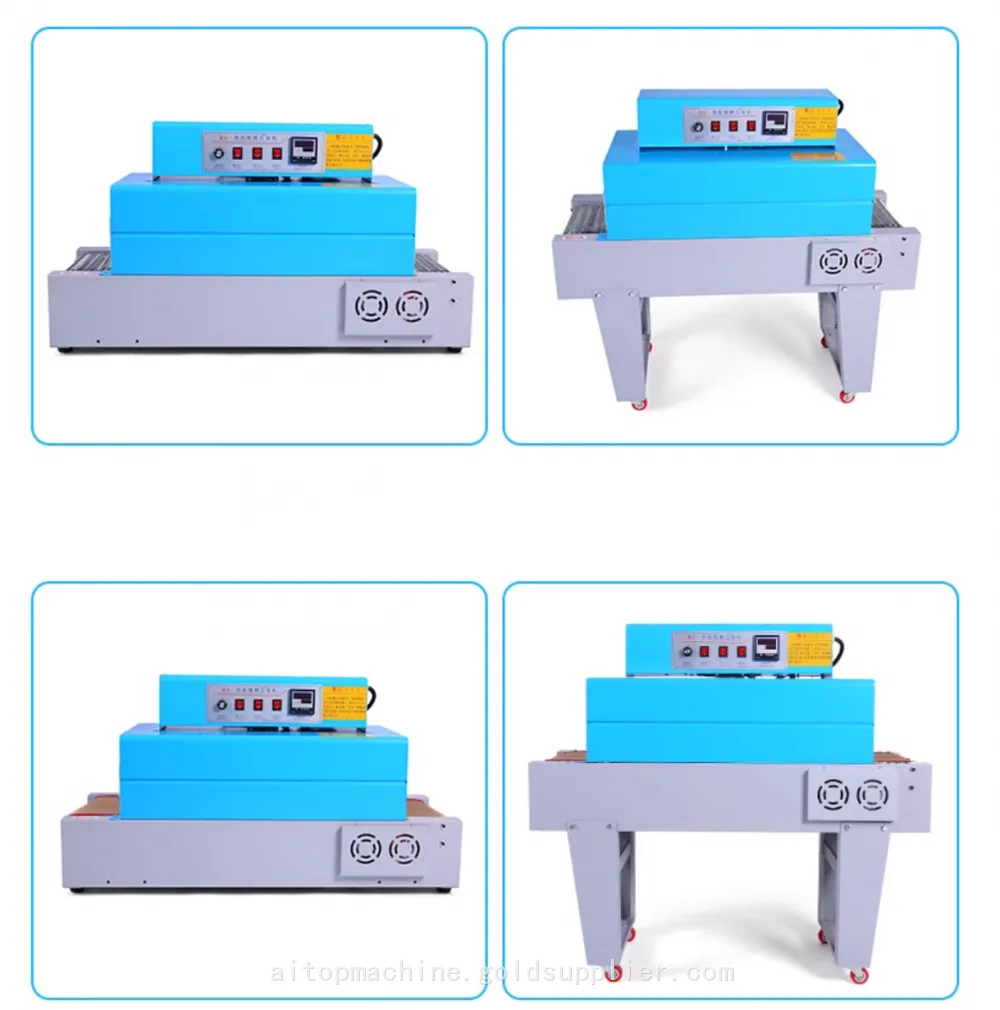

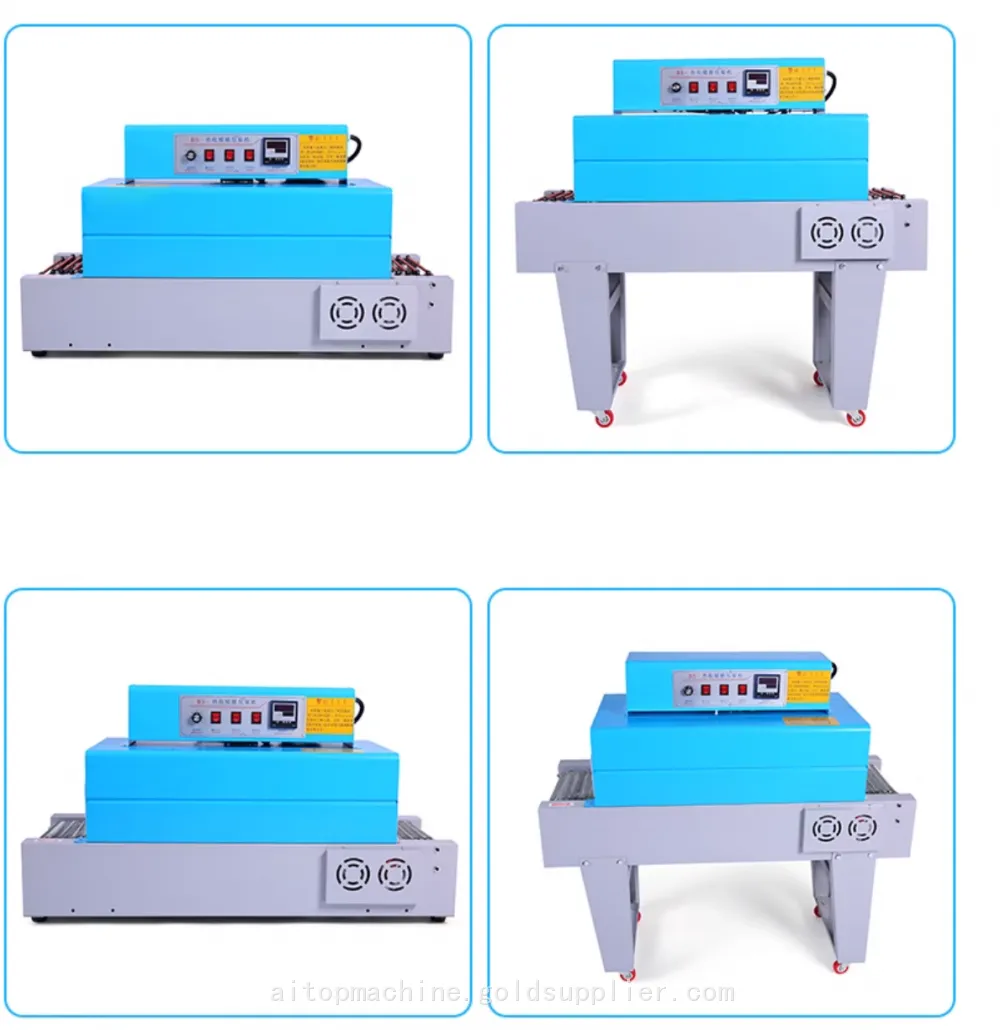

Help Center18650 21700 32650 26650 PVC Sealing Shrink Wrapping Machine for Single - Cell & Battery Pack PVC Shrinking
Related Products
-
Cylindrical 21700 32700 26650 18650 Battery EV BMS Tester 1-24 SeriesCNY 30000 - 50000MOQ: 1 Piece -
24s Pcb Cylindrical 21700 32700 26650 18650 Battery EV BMS Tester 1-32 SeriesCNY 35000 - 50000MOQ: 1 Piece
-
High Accuracy 18650 32650 Power Battery 1-24 Series Bms PCB Tester Testing MachineCNY 35000 - 40000MOQ: 1 Piece
-
High Accuracy 1-24 Series BMS PCB Board Testing Machine for Battery Pack AssemblyUS$ 30000 - 50000MOQ: 1 Piece
-
High Accuracy BMS PCB Board Testing Lithium Battery Pack 1-24 Series Pcb Protective Plate Bms TesterCNY 35000 - 40000MOQ: 1 Piece
Function Features:
model |
4525 |
6040 |
7020 |
source |
Three-phase four-wire 380V |
Three-phase four-wire 380V |
Three-phase four-wire 380V |
power |
7K W |
10K W |
12K W |
velocity |
From 0-10 m / min |
From 0-10 m / min |
From 0-10 m / min |
temperature |
At room temperature, -200 degrees The temperature was controlled in two groups |
At room temperature, -200 degrees The temperature was controlled in two groups |
At room temperature, -200 degrees The temperature was controlled in two groups |
Contraction furnace size |
1000*450*250mm (Long * width * height) |
1000 * 600 * 400mm (length * width * height) |
1000*700*200mm (Long * width * height) |
heating tube |
quartz tube |
quartz tube |
quartz tube |
materials used |
PVC, The POF to shrink the membrane |
PVC, The POF to shrink the membrane |
PVC, The POF to shrink the membrane |
outline dimension |
1500*610*1270mm |
1500*760*1400mm |
1500*860*1200mm |
weight |
About 150KG |
About 200 KG |
About 200 KG |
V. Notes:
1. Use an L-shaped packer to package or seal the bag to vent the exhaust.
2. It is suitable to put the product horizontally in the cylinder type or bag type packaging.
3. The conveying chain should be added weekly with high-temperature lubricating oil or advanced engine oil.
4. The shrink room and electric box must be kept dry, with no water to avoid leakage or burning machine.
5. Working for a long time, the mechanical shell temperature will rise, do not touch, to avoid scalding.
6. The ground wire must be connected, the mechanical shell has the grounding wire mark, and the power supply must have a good leakage protection switch to prevent electric shock accident.
7. Do not package inflammable, explosive and chemical raw materials.
8. Do not allow children and working visitors to approach the workplace, and the machinery should be turned off when not used.
Please use the switch switch to control the machine separately. Open the switch switch when the machine is not used.
Refer to the table below
Film name |
Thickness (wire) |
Heating time (seconds) |
Contraction chamber temperature |
PVC shrink films |
2-3 |
5-10 |
140-150 |
POF shrink films |
1.5-2.5 |
6-12 |
150-180 |
PE shrink films |
3-8 |
10-15 |
160-200 |
1. The conveyor speed can be adjusted according to the production speed and contraction temperature, and the conveyor speed and temperature can be adjusted accordingly.
2. After the packaging work, first close the temperature switch, and then let the conveying motor, the fan motor continue to run for 15 minutes, after the heat cooling, finally close the transmission motor, the fan and the switch and power switch.
Application:
|
|
|
|
|
|
|
|
Techinical Parameters:
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.

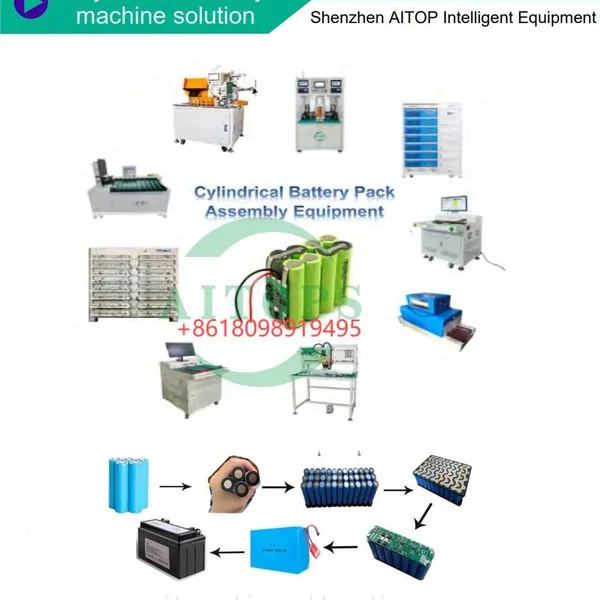

3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
