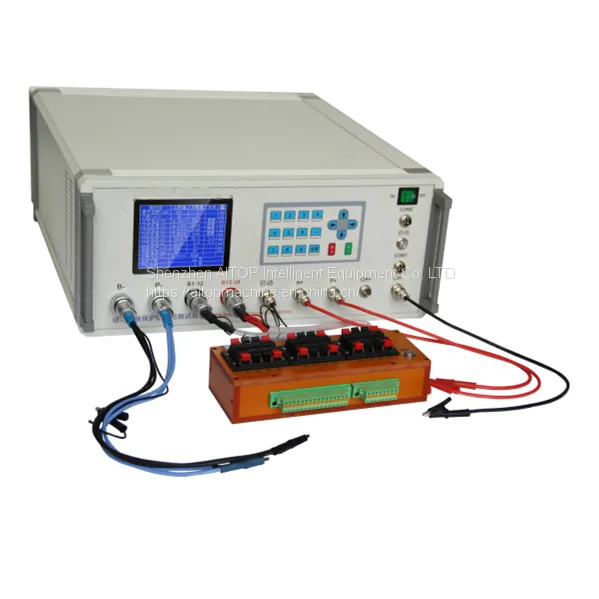

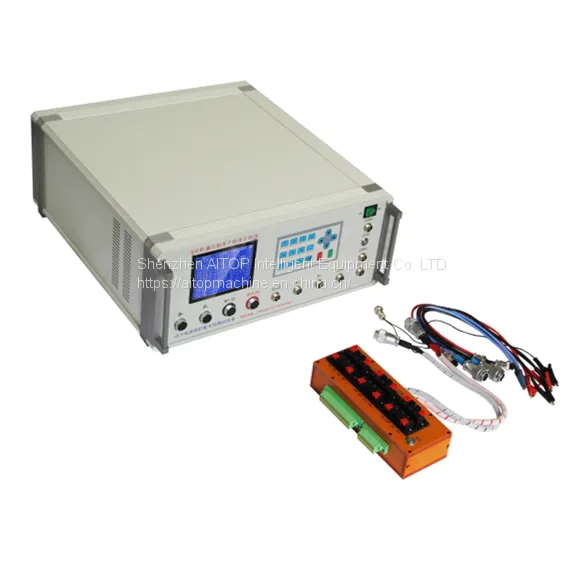

1-24 series BMS Tester with computer PCB TESTER

China bms tester High Precision BMS Tester Price,BMS Tester Manufacturers

Product Description

This machine is designed for test protecting voltage of over charge, recovery voltage of over charge, protecting voltage of over discharge, recovery voltage of over discharge, protecting current of over current, delayed performance of over current protecting total current self consumption 1~24 series power battery protection board tester



Application:
1-24S BMS testing system mainly faces the PCB board manufacturer and power battery pack manufacturer for detection of battery protecting board.

Features:
1, Short circuit protection test 2, Self consumption of each PCB board test
3, Equalizing current and balance voltage test
Operating environment:
Input power from 170-260V, Temperature from -10ºC-40ºC, humidity from 10%-90%, Maximum power 600W.

Basic configuration:
The current module: 60A, 120A two grades with 0.1A accuracy
The voltage module: 0-5V range with 5mV accuracy
Short circuit module: capture time and current of short circuit precisely by complete analog of battery pack

Detailed configuration:
Item Range Accuracy
Test rate of series 1-24 series optional
Over charge protecting voltage 0-5V ±5mV
Over discharge protecting voltage 0-5V ±5mV
Over charge recovery voltage 0-5V ±5mV
Over discharge recovery voltage 0-5V ±5mV
Over charge protecting current 0-50A ±0.1A
Over discharge protecting current 0-120A ±0.1A
Balanced turn-on voltage 0-5V ±5mV
Equilibrium real time current 0-1000MA ±1mA
Over current protection delay 0-8S ±1mS
Total self current consumption 0-10MA ±5uA
Single self current consumption 0-500uA ±1uA
Loop resistance 0-200mΩ ±1mΩ
Short circuit protecting
(more than 10 series) 0-9999u









Product Images:

Techinical Parameters:

WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.

we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.

Contact us :

Shenzhen AITOP Intelligent Equipment Co. LTD

 Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/

008618098989643/+8618820281861

Email:sales(@)

Packing and shipping

*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days

Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.

After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
