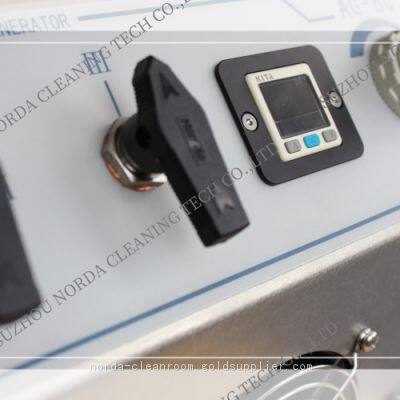

AG-60 PAO Aerosol generator
AG-60 aerosol generator is a small, light and rugged portable, self-contained Laskin-Nozzle aerosol generator. It can generate aerosol of 10ug/l to 100ug/l with airflow 50cfm/min to 2000cfm/min. Laskin-Nozzle aerosol generators is with rugged stainless steel structure, big filling port, independent spray-head and pressure control, and normative and clean joint output.
We believe whatever you want to have about our instrument, you will find the right one you want.
AG-60 aerosol generator has Laskin-nozzles. When with the pressure of 20 psig, it works and is diluted by the air of 200CFM,gas concentration approaching 100ug/l. Built-in control valve can make Laskin-Nozzles work to supply a wide range of aerosol concentrations.
Applications include workstations, negative-pressure filtration units, biological safety cabinets and ceiling modules, HEPA filter and more.

Application Environment
Clean Bench Clean Room HV Built-in AC System
ULPA Filter Operating Room HEPA Filter
Air flow range | 50 - 2,000cfm/min(1.4-56.6m3/min) built-in pump (one function) external compress air( optional function) |
Aerosol concentration | 100ug/l, flow of 472.5cfm/min |
10ug/l, flow of 4725cfm/min | |
Generator type | 2-6 Laskin Nozzles |
Aerosol type | PAO,DOP, polydispersed |
Compressed air
| Voltage source: build-in air compressor, no needing external air source |
Overall dim.(mm) | (37cm L* 26cm W *23cm H) |
Gas type | Varied diametric particle(cold) |
Weight | 15.5 KG |
Power supply | 220 VAC / 50H |
For more ,sales2@norda-china.com ; wechat: 86 18626296397 skype: lingx360
