AG-60 PAO Aerosol Generator
We believe whatever you want to have about our instrument, you will find the right one you want.

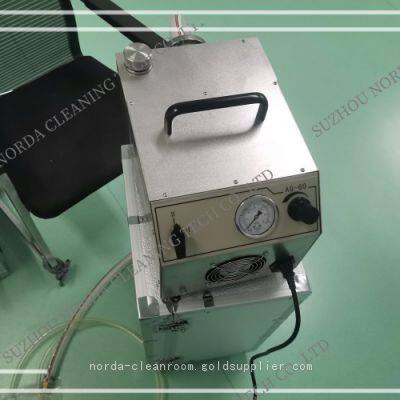

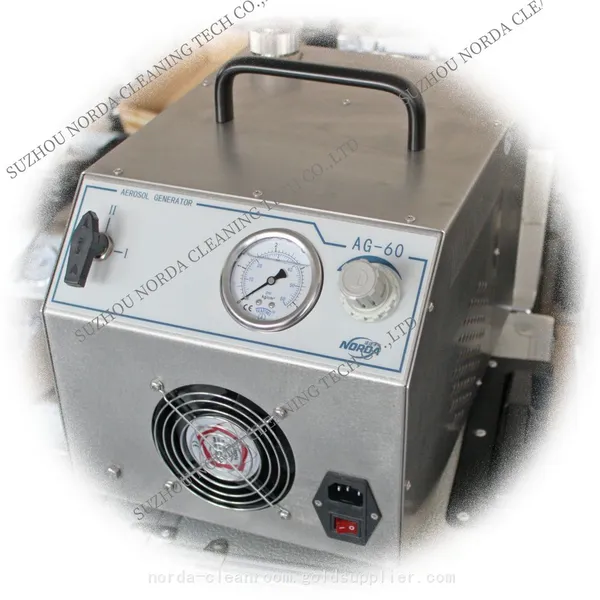

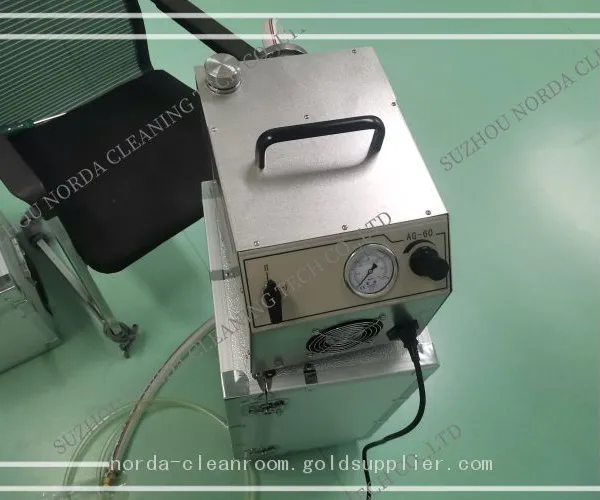

AG-60 pao generator is a small, light and rugged portable, self-contained Laskin-Nozzle aerosol generator. It can generate aerosol of 10ug/l to 100ug/l with airflow 50cfm/min to 2000cfm/min. Laskin-Nozzle aerosol generators is with rugged stainless steel structure, big filling port, independent spray-head and pressure control, and normative and clean joint output. AG-60 aerosol generator has Laskin-nozzles. When with the pressure of 20 psig, it works and is diluted by the air of 200CFM,gas concentration approaching 100ug/l. Built-in control valve can make Laskin-Nozzles work to supply a wide range of aerosol concentrations.
Applications include workstations, negative-pressure filtration units, biological safety cabinets and ceiling modules, HEPA filter and more.
Specification
Air flow range |
50 - 2,000cfm/min(1.4-56.6m3/min) built-in pump (one function) external compress air( optional function) |
Aerosol concentration |
100ug/l, flow of 472.5cfm/min |
10ug/l, flow of 4725cfm/min |
|
Generator type |
2-6 Laskin Nozzles |
Aerosol type |
PAO,DOP, polydispersed |
|
Compressed air
|
Voltage source: build-in air compressor, no needing external air source |
Overall dim.(mm) |
(37cm L* 26cm W *23cm H) |
Gas type |
Varied diametric particle(cold) |
Weight |
15.5 KG |
Power supply |
220 VAC / 50H |
Application Environment
Clean Bench Clean Room HV Built-in AC System
ULPA Filter Operating Room HEPA Filter
