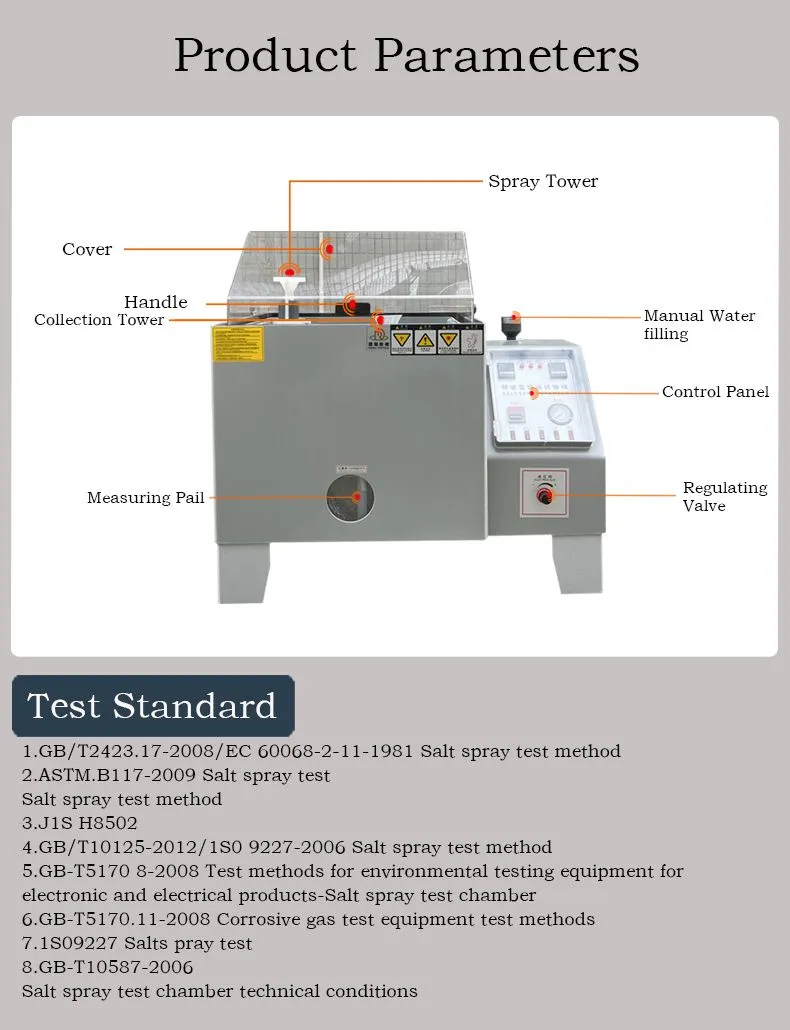

Model |
DR-H304-60 |
Internal Size (W*D*H) |
600*450*400mm |
External Size (W*D*H) |
1060*580*1050mm |

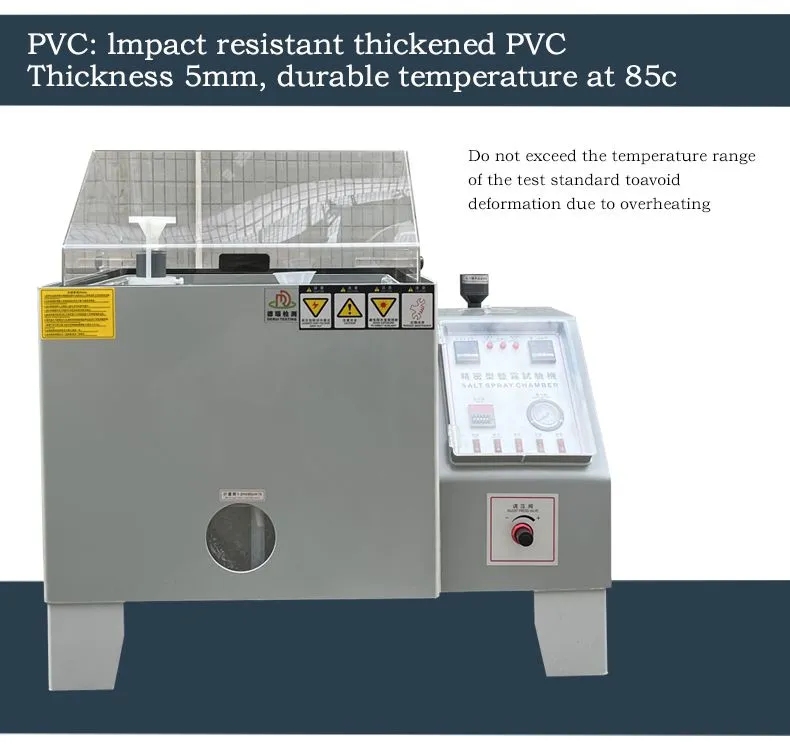

Chamber material |
P.V.C rigid plastic plate, thickness 8mm |
Sample tray |
Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined |
Temperature Range |
Room temperature ~ 55℃ |
Temperature Fluctuations |
≤±0.5℃ |
Temperature Uniformity |
≤±2℃ |
Temperature Precision |
±1℃ |
Spraying method |
Continuous and Periodic spray type |
Test Chamber Temperature |
Salt Spray Method (NSS ACSS)35±1℃ |
Saturated air Barrel Temperature |
Salt Spray Method (NSS ACSS)47±1℃ |
Brine Temperature |
35℃±1℃ |
Spray Quantity |
1.0~2.0 ml / 80cm2 / hr |
PH value |
Salt Spray Method (NSS ACSS6.5~7.2) |
Lab Volume |
108L |
Brine Tank Capacity |
25L |
Multiple Safety Protection Devices |
Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
Accessories |
Testing Salt/ Measuring tank/Nozzle Equipment x 1 set |
Air source |
1HP Air pump (provided by buyer) |
In the field of material testing, salt spray test chambers are important equipment for evaluating the corrosion resistance of materials. With its excellent corrosion resistance, lightweight and cost-effectiveness, the salt spray tester with PVC liner has become a popular choice for many laboratories and enterprises. The following content will introduce the unique advantages and application scenarios of salt spray tester made of PVC liner.
I. Why choose PVC liner material?
1. Excellent corrosion resistance
-Excellent corrosion resistance
Resistant to many chemicals: PVC material has excellent chemical resistance and can effectively resist the erosion of salt spray, acid and alkali chemicals. In the salt spray test, the brine solution is usually acidic or alkaline, but the PVC material can remain stable for a long time and will not affect the test result due to chemical reaction.
-
Extend the service life of the equipment: Due to its corrosion-resistant properties, the salt spray tester with PVC liner can still maintain good performance under the harsh test environment, reduce the frequency of maintenance and replacement of the equipment, thus extending the service life of the equipment and saving the cost for the users.
2. Light weight and easy processing
-Easy to install and move: PVC material is easy to install and move.
Easy to install and move: PVC material is relatively lightweight, making the salt spray test chamber overall weight reduction, easy to install and move. For the laboratory space is limited or need to change the test site frequently, this feature is particularly important, can be flexibly adapted to different working environments.
-Easy to fabricate and customize: PVC material is easy to fabricate and customize.
Easy to process and customize: PVC material has good processing performance and can be customized according to the user's needs. Whether it is the size, shape or internal structure of the test chamber, can be flexibly adjusted to meet the individual needs of different users, to provide users with more intimate solutions.
3. Cost-effective
-
Lower equipment cost: Compared with other materials such as stainless steel, PVC material is less expensive, which reduces the manufacturing cost of salt spray test chamber. This makes the salt spray tester with PVC liner more competitive in price, providing an affordable option for users with limited budgets and making professional corrosion resistance test equipment affordable for more companies and laboratories.
-Reduced Maintenance Costs
Reduced Maintenance Costs: The corrosion resistance and stability of PVC material reduces the need for maintenance of the equipment and lowers maintenance costs. Users do not need to frequently replace parts or carry out complex repairs, only need to carry out routine cleaning and maintenance, you can keep the equipment in good operating condition, further saving the cost of use.
Second, the product features and characteristics
1. Precise salt spray system
-
Uniform spraying: The salt spray tester with PVC liner is equipped with an efficient spraying system, which can evenly spray the saline solution on the test samples. The spraying system adopts specially designed nozzles to ensure that the salt spray particles are fine and evenly distributed, simulating the real marine salt spray environment and providing accurate conditions for the corrosion resistance test of materials.
-
Adjustable Spray Volume: The spray volume of the spray system can be adjusted according to the test requirements to meet the test requirements of different standards and materials. Users can accurately set the spray volume through the control panel to ensure the accuracy and reliability of the test results, providing strong support for the evaluation of the corrosion resistance of materials.
2. Stable temperature and humidity control
-Precise temperature control: the test chamber adopts the advanced technology of temperature and humidity control.

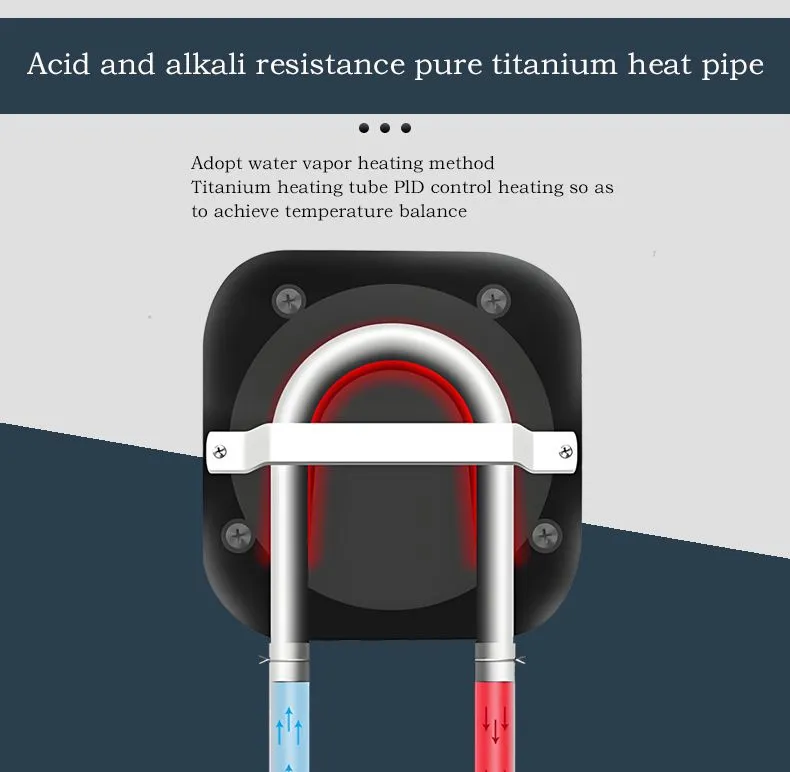

Precise temperature control: The tester adopts an advanced temperature control system, which can precisely control the temperature inside the tester. The temperature range is usually between room temperature and 60℃ with low temperature fluctuation to ensure the stability of the test environment. The stable temperature environment helps the corrosion reaction of materials under salt spray conditions to be more realistic and reliable, and guarantees the accuracy of the test results.
-
Humidity Adjustment: In addition to temperature control, the tester also has a humidity adjustment function that can simulate different humidity environments. Humidity control is particularly important for corrosion testing of certain materials, as humidity affects the moisture content on the surface of the material, which in turn affects the rate and extent of the corrosion reaction. By accurately adjusting the humidity level, the user can more comprehensively assess the corrosion resistance of materials in different environmental conditions.
