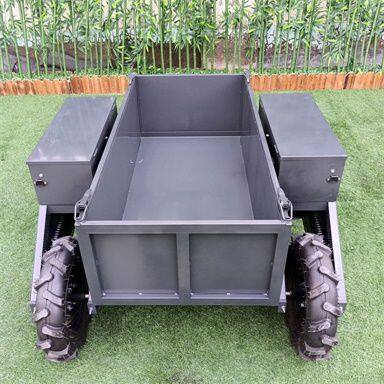

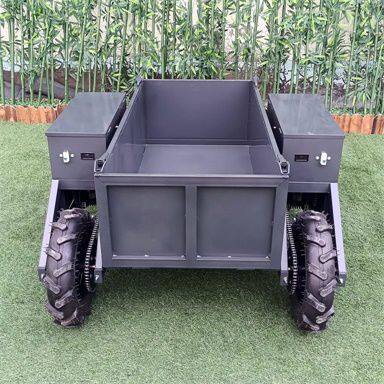

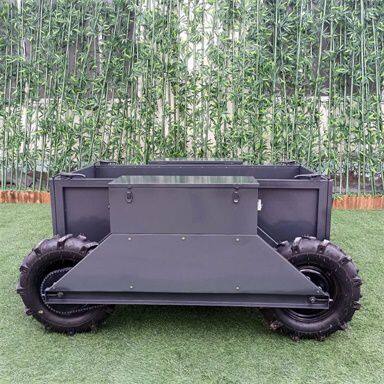

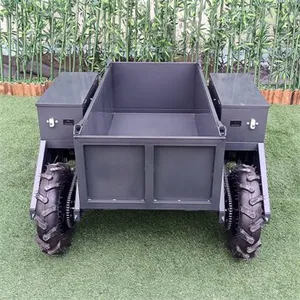

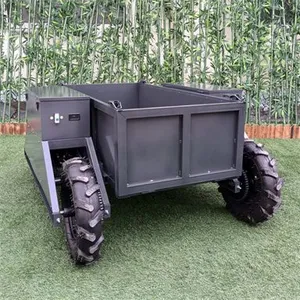

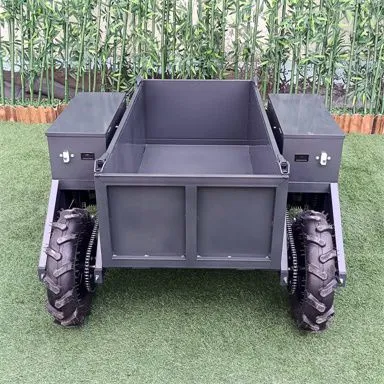

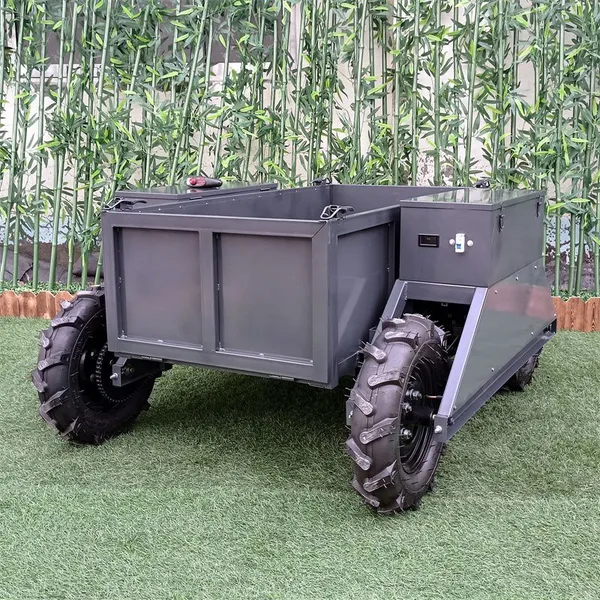

All Terrain Remote Control Transport Vehicle (RAT460)

All Terrain Remote Control Transport Vehicle (RAT460)

Official website:

Email: 816@ssrbot.com/ vigoruntech16@gmail.com

WhatsApp/WeChat: +86 19563012862

Features:

1) Designed for rugged terrain transportation, with four wheels that automatically level according to the terrain.

2) 400-10 herringbone tires enhance traction, with tall wheels providing high ground clearance (28cm) for excellent cross-country performance.

3) Equipped with TianNeng batteries, a renowned Chinese brand, with two sets of 48V 20Ah for long-lasting endurance.

4) Powered by a 1000W full copper brushless motor, offering robust performance. Features electromagnetic brakes and anti-rollback functionality. The RV063 gearbox delivers high torque output.

5) Reinforced body for strong load-bearing capacity.

6) High safety with wireless remote control.

7) 360-degree rotation for easy maneuvering in tight spaces.

8) Chain drive system for simple maintenance.

9) Suitable for various terrains: mountains, orchards, farmland, uneven grounds, and slopes for loading and transportation.

Specification:

Walking Speed: 0~6km/h

Working Temperature: -20~55°

Working Degree: 0~45°

Min Ground Clearance: 280mm

Remote Control Range: 200m

Walking Motor

Motor Type: Brushless electric traction

Voltage / Power: 48V / 1000W

Wheel: 400-10 tire

Battery: 48V 20Ah * 2

Rated Payload: 460kg

Wheelbase: 1090mm

Track: 960mm

Bed Dimension: 1300*600*400mm

Machine Size: 1500*1200*700mm

Machine Weight: 200kg

Package Size: 1690*1300*900mm

Gross Weight: 240kg

Volumetric Weight: 330kg
