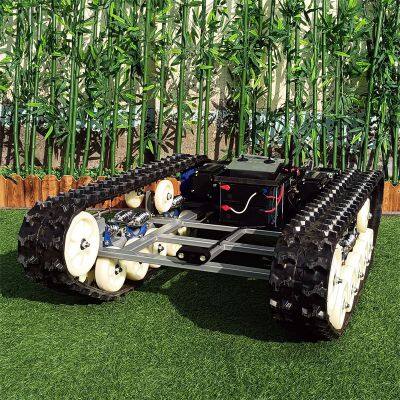

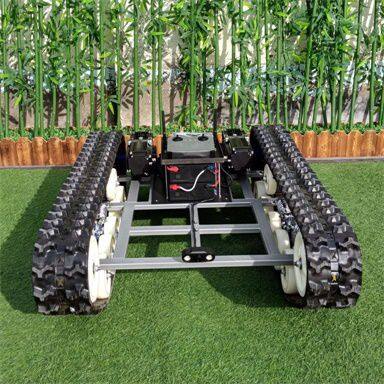

Shock-absorbing Suspension Remote Control Tank Robot Chassis (RTC300)

Shock-absorbing Suspension Remote Control Tank Robot Chassis (RTC300)

Official website:

Email: 816@ssrbot.com/ vigoruntech16@gmail.com

WhatsApp/WeChat: +86 19563012862

Features:

1) Stylish Design

The external profile and lines of the chassis are professionally designed, simple yet stylish, suitable for direct use or modification into other high-end vehicles.

2) FPV Capability(optional)

The remote controller comes with a built-in camera and LED lights, allowing users to observe the front view of the vehicle on the controller’s screen and fulfill nighttime operational needs.

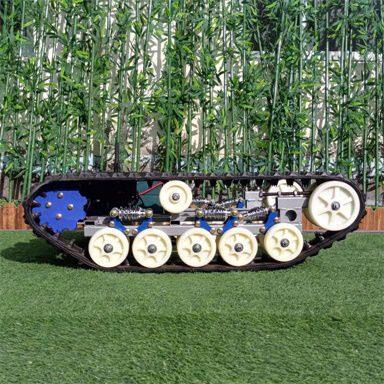

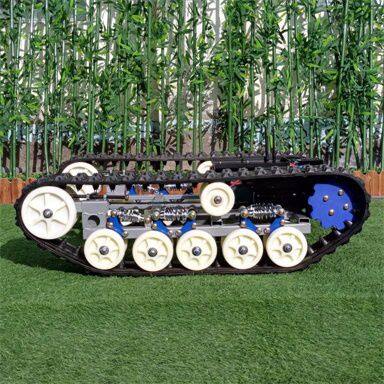

3) Enhanced Suspension

Equipped with eight shock absorber springs, providing excellent shock absorption capabilities. Allows for easy navigation over ditches, swamps, steep slopes, wastelands, and more.

4) Lightweight and Durable Construction:

The drive wheels, suspension wheels, and driven wheels are all made of nylon, ensuring a lightweight yet sturdy and durable build. The frame is designed for strength, aesthetics, durability, and high expandability.

5) Servo Motors

Servo motors ensure high torque output, high-temperature resistance, and precise synchronization on both sides with a professional controller. Features electronic brake function for slope stops, preventing slippage.

6) Worm Gear Mechanism

Capable of withstanding high torque and offering high reduction ratios. Automatically holds position on slopes to prevent slippage.

7) Expandable Functionality

Equipped with a standard function expansion module that can control an additional 4 channels, allowing for the addition of other functional modules to create a customized vehicle.

Specification:

Walking Speed: 0~2.5km/h

Working Temperature: -20~55°

Min Ground Clearance: 170mm

Remote Control Range: 200m

Walking Motor

Motor Type: Brushless electric traction

Voltage / Power: 48V / 1000W

Reduction Ratio：30:1

Rotating Speed: 70RPM

Output Torque: 138Nm

Rubber Track

Width: 150mm

Pitch: 60mm

Links: 47

Driving Wheel

Pitch: 60mm

Tooth Number: 10

Battery: 48V 20Ah(optional)

Remote Control Channel: 7

Extended Controllable Channel: 4

Rated Payload: 300kg

Machine Size: 1280*900*480mm

Machine Weight: 165kg

Package Size: 1360*980*630mm

Gross Weight: 190kg
