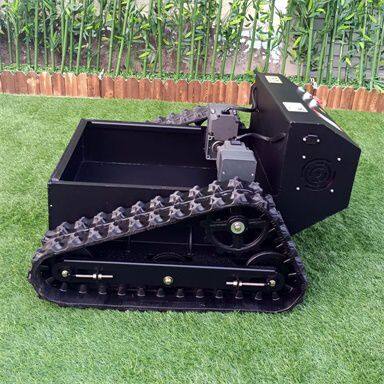

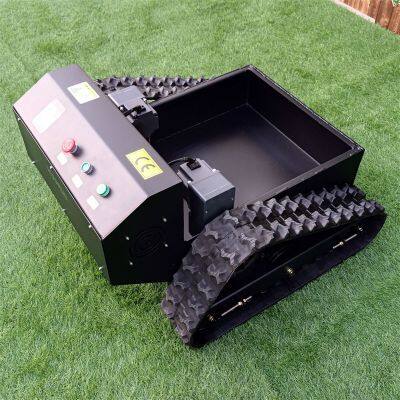

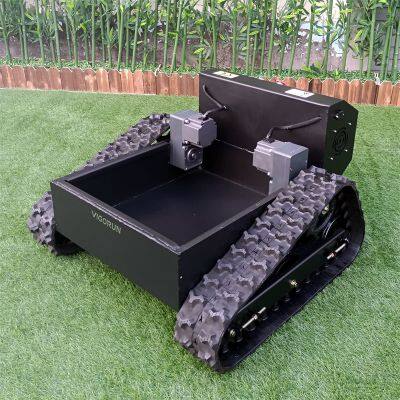

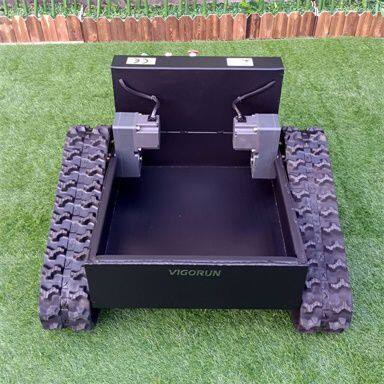

Remote Control Track Chassis (RTC100)

Remote control track chassis (RTC100)

Official website:

Email: 816@ssrbot.com/ vigoruntech16@gmail.com

WhatsApp/WeChat: +86 19563012862

Features:

1) Enhanced Safety

Our remote control tool carrier eliminates the need for staff to work in hazardous environments, keeping them away from dangers such as snakes, spiders, insects, and unsafe terrain.

2) User-Friendly Design

Enjoy the convenience of a one-key electric start. Easily adjust the cutting height quickly and precisely using the remote control.

3) Powerful Walking Motor & Reducer

Equipped with two brushless 48V 1500W motors featuring 110mm diameter coils, the tool carrier delivers strong and efficient power with minimal heat generation. It is engineered for extended hours of continuous operation, ensuring reliability in demanding tasks.

4) Worm Gear & Reducer for Safety

The walking motor is integrated with an RV063 worm gear and worm reducer. This design includes a self-locking mechanism that prevents the motor from moving when power is cut off. The high friction between the worm and worm wheel ensures the motor remains stationary, offering enhanced safety by eliminating unintended sliding or rolling on slopes.

5) High Efficiency and Labor Savings

With a travel speed of up to 4 km/h and a cutting width of 1000mm, our mower delivers exceptional efficiency. While operation is managed remotely by staff, the wide cutting width significantly reduces labor costs, making it a highly cost-effective solution.

6) Multifunctionality

The front of the tools carrier supports interchangeable attachments such as a flail mower, brush, or snow auger. This versatility enables the machine to perform various tasks, including mowing grass, clearing shrubs, and removing snow, all with one robust device.

Specification:

Model: MTSK1000

Cutting Width: 1000mm

Walking Speed: 0-4km/h

Working Degree: 0-50°

Adjustable Cutting Height: 10~165mm

Min Ground Clearance: 45mm

Remote Control Range: 200m

Engine

Brand: Loncin

Fuel Type: Gasoline

Engine Type: Twin cylinder, air cooled, 4-stroke, OHV

Power / Emission: 18Kw / 764cc

Start Method: Electric start

Lubrication System: Splash + pressure

Emission Standard: Euro5/EPA

Fuel Tank: 13L

Engine Oil Capacity: 1.6L

Working Time: 3h (full fuel)

Walking Motor

Motor Type: Servo control

Voltage / Power: 48V / 1500W

Dynamo: 56V 6000W

Battery: 48V 45Ah

Machine Size: 2000*1200*880mm

Machine Weight: 600kg

Package Size: 2070*1250*1030mm

Gross Weight: 680kg
