Home > Manufacturing & Processing Machinery > Mining Machinery > Dredger > ISO9001 Pontoon Transport Solution by Hengpeng - China Origin
US$ 150,000 - 650,000
MOQ: 1 Combo
Key Specifications
Get Latest Price
Brand Name:
HengPeng
Place of Origin:
China
Model Number:
HP- DTB 300
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
30 days
Related Products
-
Self-Propelling Anchor Boat/Tug Boat/Service Boat/Dredger Service Boat for SaleUS$ 53,000 - 73,000MOQ: 1 Combo -
Efficient 18-Inch Suction Dredger With Superior Performance FeaturesUS$ 500,000 - 1,600,000MOQ: 1 Combo
-
High Efficiency Hengpeng 200t Chain Bucket Dredger for Gold MiningUS$ 40,000 - 300,000MOQ: 1 Combo
-
China Origin Advanced Booster Pump Set for 1000m-3000m DredgingUS$ 20,000 - 300,000MOQ: 1 Set
-
Heavy Sand Washing Machine /Spiral Sand WasherUS$ 1,000 - 20,000MOQ: 1 Set
Brand Name
HengPeng
Place of Origin
China
Model Number
HP- DTB 300
Type
Other, barge
Certification
CCS BV ISO9001 ZC DNV
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 Months Free Warranty, Free Repair
Power Type
Diesel
Condition
New
Basic Info.
Model NO.
HP- DTB 300
Hull Material
Steel
Customized
Customized
Certification
PTI, CSC, ABS, CE, ISO
Max Pay Load
300ton
Self Propelled
Yes
Type
Cargo Barge
Condition
New
Service
Free Assembly, Training, Testing,on-Site Debugging
Hull Specification
Steel (Solid Steel Materials), in Modular Pontoon
Device Configuration
2 Set Marine Engine, 2 Sets Propeller
Operattion
Hydraulic PLC Control System
Application Scenarios
River, Lake, Reservoir, Offshore, Shadow Water,
Application Transport
Cars, Heavy Equipment, Excavator, Staff,
Certified Models
MP300dtb
Sailng Speed
15km/H
Fuselage Weight
Other
Transport Package
Container or in Bulk
Specification
Steel (solid steel materials)
Trademark
Hengpeng
Origin
China, Shandong
HS Code
89051000
Production Capacity
200 Sets/Year
Product Description

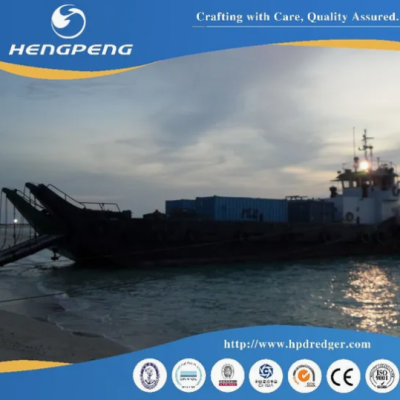

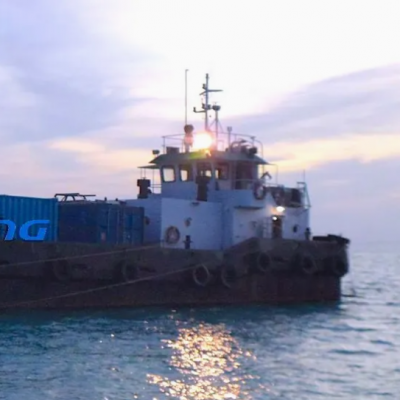

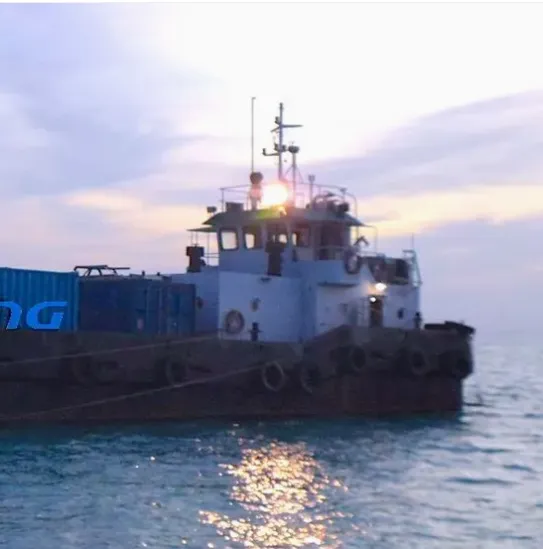

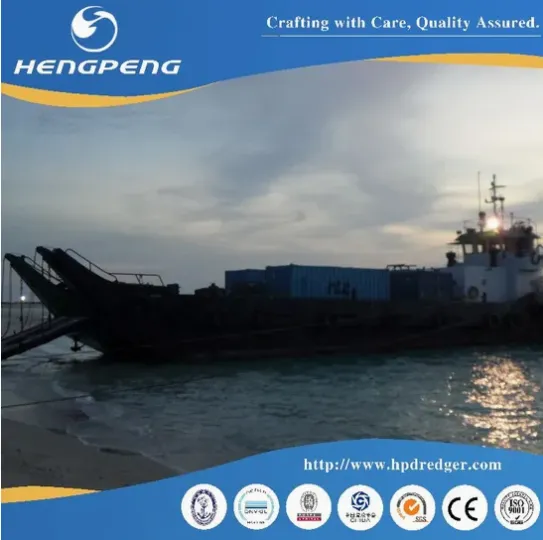

Hengpeng HP- DTB300 Self-Propelled Deck Transportation Cargo Barge
River Ferry /Flatbed Carrier
Modular Pontoon design with Dual power 6m Front Ramp Humanized design Full hydraulic drive
applicable to many scenarios transportation,all excellent, On-site debugging, customized production on demand
Load capacity of 300 ton, cargo hold of 150 square meters, 1 set of new high-efficiency hydraulic control operation system, all-welded solid steel structure, positioning anchor device. 2 set diesel engine power systems, 2 propeller machine propulsion systems, Modular design, quick assembly on the jobsite, Assist in all-scene transportation,all excellent. There are also GPS navigation and safety equipment to protect everything. Fast speed, large carrying capacity, stable transportation, easy operation, flexible steering, convenient disassembly and assembly. |
| 300 ton Large load, large platform Designed and built to meet customer's needs, carry large loads in water transportation. Deck has a large enough area to carry a large number of cargo, containers, equipment or other materials, capable of carrying 300 tons, equipment such as automobiles, equipment, excavators, bulldozers | Power system, highly efficient 2 sets of marine engines & 2 sets of propellers, to ensure adequate propulsion in all sea conditions. The power system chosen to take into account fuel efficiency and environmental requirements, but also to meet the needs of speed and range. | Hydraulic driven PLC-Controlled Hydraulic Steering System, all work can be done easily in an enclosed cab. High reliability, High-efficiency. |
Navigation and safety equipment Advanced navigation systems, including GPS ensure the accuracy and safety of navigation. Life-saving equipment and fire-fighting equipment ensure the safety of personnel. | Adaptable design in a variety of water environments, rivers, canals, inland waterways. Shallow water ability and navigational stability, adapt changes in water levels and complex watercourse conditions. 6-meter ramp, support wheeled equipment directly diven on/off (roll-on/roll-off), making it easier to load & unload . | Hull structure All-welded steel construction, high strength and durability. Hull alignment and weight distribution, ensure stability during sailing. The internal layout of the hull is reasonable, including cargo holds, personnel living quarters and mechanical equipment areas , meet the needs of personnel and materials. |
Wide Range of Operating Scenarios |
Comprehensive Performance,
Unlimited Transportation
| Technical Parameters | Description | Remark |
|---|---|---|
| Modular Pontoon Deck Barge | ||
| Total Length | 20M | |
| Side Pontoon Length | 20M | |
| Width | 10M( 3M + 4M + 3M) | Modular Pontoon design support road transportation |
| Depth | 1.6M | |
| Connection Method | Flange | 6 piece by strong connection method |

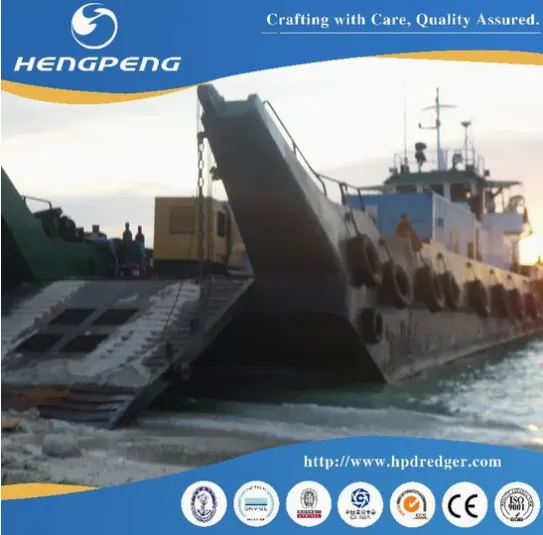

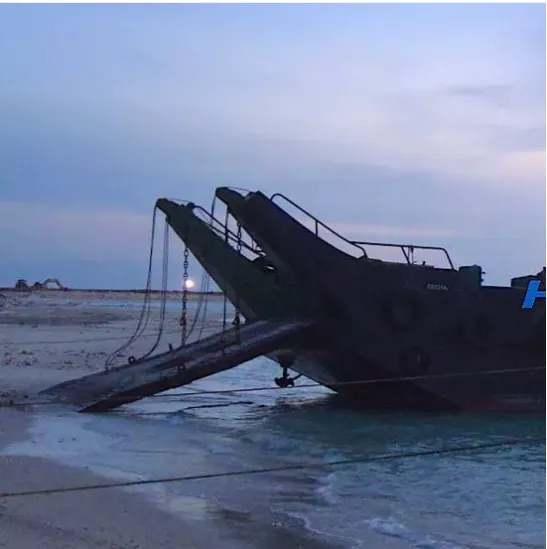

| Front Ramp | 6M | Easier to load equipment |
| Max PayLoad | 300Ton | |
| Operation System | 1 set of Humanized Hydraulic PLC Control System | Smooth operation |
| Power System | ||
| Engine | 2 Set Weichai | CCS approved |
| Propeller | 2 Set | |
| GPS System | Equipped | |
| Living Area design | Bedroom,Pilot Cabin,Kitchen ,Bathroom,window,door | |
| Specification | ||
| Body Type | Modular Pontoon Self-Propelled Deck Barge | |
| Application Scenarios | Logistics, agriculture,Industrial,Use of daily material necessities transport | |
| Sailng Speed | 15km/h | |
Tips-
Equipment features:
1. simple assembly: This equipment is a split assembled steel deck barge, which can be transported to the port by road by flatbed truck after disassembly, loaded into a bulk carrier for long-distance shipping to to Africa, Southeast Asia and other countries's and regions's overseas workplaces, and can be put into transportation operations after simple assembly.
2. engine power: The equipment is equipped with a diesel engine or electric motor (when equipped with an electric motor, it can be equipped with a diesel generator set to provide the power of the whole ship), with simple structure, easy operation and high degree of automation, which is an ideal tool for transporting sand and gravel, engineering vehicles and engineering personnel in inland waters or offshore waters.
3.customized design : The specific tonnage can be customized according to customer requirements. It can also be designed and produced according to the local waterway conditions and specific working conditions.
Why Choose HengPeng Dredgers
30 years' dredger manufacture workmanship
Fortune 500 Company chosen supplier
Large production, ISO 9001 quality system
Manufacture shops, R&D center
10 series of dredging equipment
More Products and Accessories Recommended
Cutter suction dredger
Amphibious dredger
Modular Pontoon Platform-Excavator/Crane transportation carrier
Work boat with crane tugs boat
Key components -HDPE pipe
Key components -Floating rubber hose
Key components -Dredge Sand Pump/Engine/Gearbox
Key components -Floater
1. Lifetime Technical Support, provide technical guidance on engineers usage and other aspects according to consumer requirements
2. 24-hour service response mechanism
3. Making an excellent filing of customers for long-term following-up service.
4. All the dredgers can be Customized.
5. Field Installation,commissioning,and training by our engineers
6. Provide professional service and provide solution in a timely manner.
7. 12 months free warranty, free repair services,.
8. Sending engineers to assemble and test the machine within theperiod as agreed in the contract.
9. Ensure the supply of maintenance spare parts, and shipyard warehouse inventory of dredger/barge parts can quick and efficient supply in a short period of time;
