High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

Name: High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC
Brand: HengPeng
Availability: InStock

FOB Price

USD $700,000 - $850,000 / Combo

1 Combo(Min.Order)

Supply Ability 100 Combo / Combos per Month
Port qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HengPeng	Place of Origin	China
Model Number	HP-CSD6014	Type	Cutter Suction Dredger
Certification	CCS, BV, ISO9001, CE, Zc, Dnv, Patent	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	a year	Dimension(LWH)	20 inch
Power Type	Diesel	Condition	New
Dredging Depth	14m-22m

Product Description

Basic Info.

Model NO.

HP-CSD6014

Cyclone Type

Hydrocyclone

Slot Type

CTS

Customized

Condition

New

Warranty

1 Year

After-sales Service

Lifetime Technical Support

Mining Project Object

Sand, Mud, Slurry, Silt, Slush, Sludge, Salt

Water Flow

5000-7000m3/H

Certification

CCS, BV, ISO9001, CE, Zc, Dnv, Patent

Dredging Depth

14m-22m

Control System

PLC and 100% Full Hydraulic System

Discharge Distance

1500m-400m

Pump

Warm Technology

Engine

Weichai/Jichai/Cummin

Delivery Time

Stock Available in Workshop, Within 7 Days

Transport

in Bulk

Transport Package

Yes

Specification

20 inch

Trademark

HengPeng

Origin

Huanglou, Qingzhou City, Shandong Province, China

HS Code

89051000

Production Capacity

100 Set

Product Description

Cutter Head Suction Dredger Made in Heng Peng Shipyard

Siemens PLC Heavy Duty Dredger with Dredging Pump Water Flow Capacity 5000-7000m3/H

The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China.

The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China.

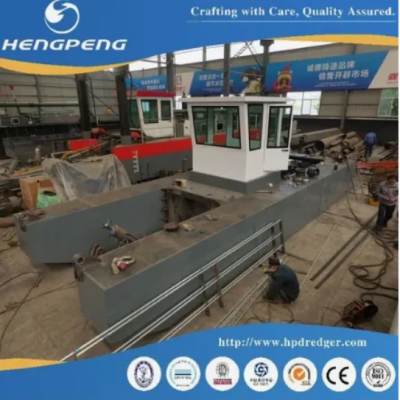

The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, hull front and rear, and hooks at the bottom. Further features of the dredger are the dredger is powered by a Marine engine. The main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments such as cutter, swing and ladder winches, and the spud rams etc.

The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon by means of bolts.
The hull steel plate used is CCSB (shipbuilding steel plate ).

Hull decomposition:

	Cutter Suction Dredger Specs HP-CSD 6014
No.	Item	Parameter	Remark
1	Product Name	HP-CSD6014
2	Total Length	39.0m
3	Hull Length	29.0m
4	Hull Width	9.2m
5	Hull Depth	2.4m
6	Average Draft	1.5m
7	Main Engine	1650kw (2211HP); 1 set
8	Auxiliary Engine	KW; Generating unit; 1 set
9	Dredging Depth	14~16m
10	Pump Water Flow Capacity	50003/h
11	Discharge Distance	1500m
12	Cutterhead Dia	m
13	Pump Discharge Dia	mm	SHIJIAZHUANG
14	Pump Suction Dia	mm
15	Solid Capacity	1000-1400m3/h
16	Working Weight of machine	300Ton
17	Spud Pile
18	Hydraulic Winch
19	Navigation Ability
20	Operation System	PLC Control System and 100% Full Hydraulic system
21	Spare Part	Diesel engine tools,oliseal,eletric,welder and so on

1. One-man operation. The most advanced PLC control system.

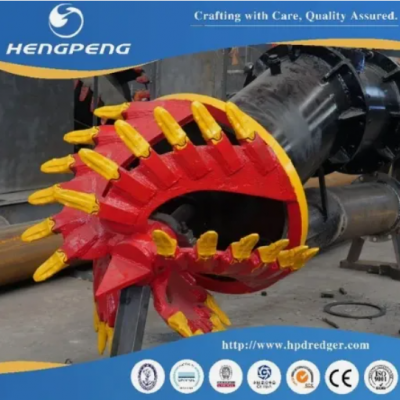

2. New highly effective cutter/wheel drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5.Completely assembled and rigorously tested before delivery, ensuring reliability.
6. Very simple and fast assembly, afloat of onshore
7. Standard design, allowing short delivery times
8. Standard spare parts available from our stock
9. Designed as standard to qualify for Coastal Waters Certificate
10. Optional equipment available

* Smaller size dredger will be transported by container, the dredger is split, each part can be lifted into containers in the warehouse, after the all cargoes be pick uped to jobsite, and our engineers will go to job site to assembly, testing and training.

* Bigger size dredger will be transported by bulk cargo ship in sea, , after the all cargoes be pick uped to jobsite, and our engineers will go to job site to assembly, testing and training.

(1) Lifetime Technical Support
(2) Sending engineers to assemble and test the machine within the period as agreed in the contract.
(3) Making an excellent filing of customers for long-term following-up service.
(4) 24-hour service response
(5) 12-month warranty with free repair services
(6) Imely professional service and solutions
(7) Efficient supply of maintenance spare parts

(8) Dredger Abroad,Dredger Working Case

(9) High Quality Engine, Gearbox and Dredging Pump:

(10) HengPeng High Quality Dredger Accessories:

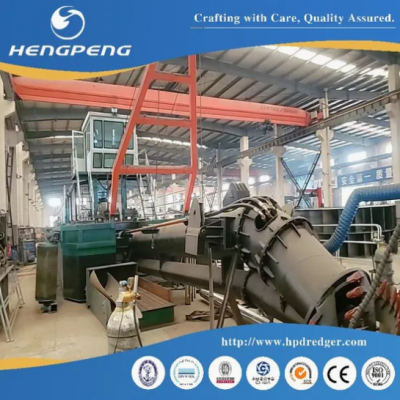

(11) HengPeng Manufacture, Shipping, Assembly :
a. Shipping:

b. Assembly- Working Jobsite Installation:

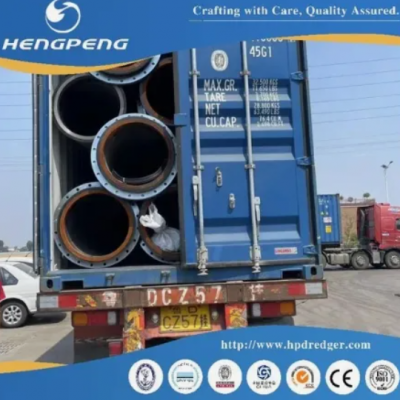

(12) Heng Peng Discharge Pipelines:

Q1, What are the services the HengPeng company is providing?
A: Free dredger consultation, drawing design, customization, on-site visits,  free assembly, training, operation testing, and lifetime technical assistance.

Q2, What are the delivery terms?
A: HengPeng Dredger delivery can be in containers or in bulk depends on the dredger size. HengPeng has in-stock dredgers, and constantly storing dredger parts, pipes, pontoons, to shorten the delivery period for special needs.

Q3, What about the payment terms?
A: Payment can be paid in T/T and L/C, payment terms and financial support can be discussed.

Q4, What are the warranty terms?
A: HengPeng provides a standard 1-year global warranty, free problem solving with lifetime technical assistance.

Q5,  Why you say HengPeng is your trustworthy dredger manufacturer?
A: HengPeng is a trustworthy dredger manufacturer because we have 30 years' manufacturer workmanship, manufactured for many Fortune 500 companies globally. HengPeng continuing to innovate and develop new products such as amphibious dredger, salt mining dredger and more, upgrades existing dredger technology. Our engineers and designers are hired from prestigious dredger institutions in China. Our products are working in more than 30 countries so far and have 6 global offices to better serve our clients.

30 years' dredger manufacture workmanship

Fortune 500 Company chosen supplier
Large production, ISO 9001 quality system
6 manufacture shops, R&D center, testing pool
Presences in 37 countries
10 series of dredging equipment

HENGPENG Shipyard is a pioneering enterprise in the design, construction, and engineering of dredging industries.
Hengpeng offers an unparalleled range of both standardized and tailor-made dredging, working, and support vessels. Our flagship products include Amphibious Dredgers, Cutter Suction Dredgers, Excavator Transportation Carriers, Logistic Transportation Barges, Bucket Wheel Dredgers, Jet Suction Dredgers, Chain Bucket Dredgers, Booster Pump Stations, Mining Dredgers, Iron Sand Boats, Weed Cutting Machines, Multifunction Barges, Tug Boats, Pontoons & Platforms, and Multifunctional Working & Supporting Boats.

Hengpeng takes pride in continually upgrading our solutions by collaborating with premier domestic and international institutes, incorporating cutting-edge technologies from Germany, Holland, Australia, and Japan.

Hengpeng's unmatched products have made a significant impact globally in countries such as UAE, Saudi Arabia, Qatar, Egypt, Spain, Poland, Maldives, Bangladesh, Malaysia, Indonesia, Philippines, and Nigeria, earning high praise and appreciation from our esteemed customers.

Respond to rapid delivery in various regions

Welcome to HengPeng Shipyard ! we are looking forward to providing free consultation for your dredging projects, customize the dredge just for you, manufacture, delivery, assembly, train, operate, and provide lifetime technical assistance to achieve your dredging goal !
