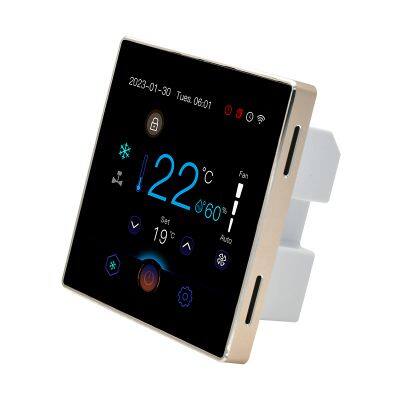

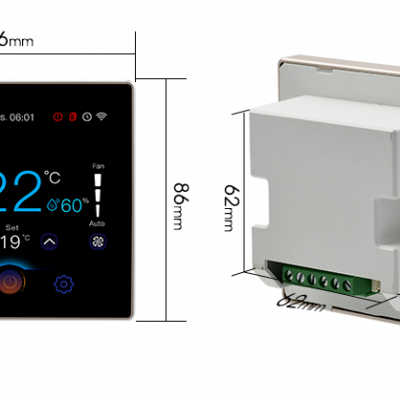

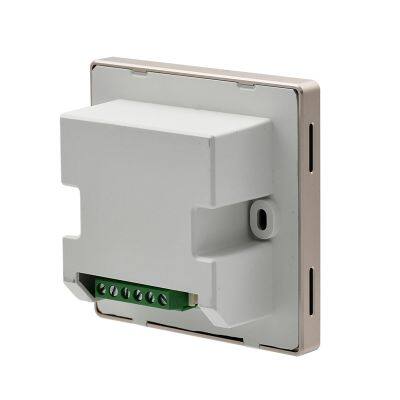

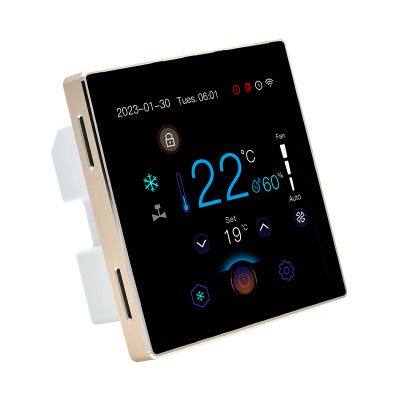

Help CenterHigh-end Design LCD Color Screen RS485 Modbus Thermostat Support WIFI Tuya Remote Control Thermostat
Related Products
-
Newest European Thermostat With CO2 and PM2.5 Real Time Monitoring AC220V/DC24V Smart ControllerNegotiableMOQ: 1 Piece -
Floor Heating Thermostat With Temperature Control Modbus RS485 Thermostat for HVACUS$ 14 - 19MOQ: 1 Piece
-
2 Pipe 4 Pipe Fan Coil Unit Heating Cooling and Ventilation 24V AC Smart Indoor ThermostatUS$ 14 - 19MOQ: 1 Piece
-
FCU Thermostat for EC Fan 0-10V Output Heating and Cooling With WIFI Remote Control Function Smart ControllerUS$ 14 - 19MOQ: 1 Piece
-
Smart Thermostat With Heating and Cooling Used for Central Air Conditioning ControllerUS$ 9.9 - 14MOQ: 1 Piece
Overview
The G6-X-WK temperature controller can monitor indoor temperature in real-time and can be widely used in residential, commercial, and industrial settings. It can effectively improve air quality and create a healthy, comfortable, efficient, environmentally friendly, and energy-saving living and working environment.
Functional logic description
The functional logic indicates that there are manual low speed, medium speed, high speed wind speeds, as well as automatic wind speeds (ventilation mode does not have automatic wind speeds). In automatic wind speed mode, the wind speed automatically shifts, that is, when the room temperature differs by 1 ℃ from the set temperature, low wind speed is automatically selected; When the room temperature differs by 2 ℃ from the set temperature, the middle wind speed is automatically selected; When the room temperature differs by 3 ℃ from the set temperature, high wind speed is automatically selected. The underfloor heating mode fan is turned off.
Functional logic description
2-1 Ventilation mode
Ventilation mode, manual wind speed for fan operation, fan coil off.
2-2 Cooling mode
Refrigeration mode, indoor temperature>(set temperature value+return difference of 1 ℃), fan disc valve open; Indoor temperature
2-3 Heating mode
Heating mode, indoor temperature=set temperature value, fan valve closed; The underfloor heating valve remains closed.
2-4 Underfloor heating mode
Floor heating mode, indoor temperature=set temperature value, floor heating valve closed; The fan valve and fan remain closed.
2-5 Heating+underfloor heating mode
Heating+underfloor heating mode, when (set temperature value - indoor temperature)>=1 ℃&(set temperature value - indoor temperature)=3 ℃, the fan is turned on, the fan valve is turned on, and the floor heating valve is turned on; When the (set temperature value - indoor temperature) is less than 1 ℃, the floor heating valve is closed, the fan disc valve is closed, and the fan mechanism is turned off.
2-6 Other
( a ) Child lock function: After opening, there is no operation for 1 minute to enter the lock screen state, unlock password 6666, default to off
( b ) Automatic screen rest: 1 minute without operation, screen rest.
( c ) Timing on/off function, switch on/off according to the set timing time.
