19-Inch 18kw High-Power Dc Power System With Integrated Mppt Solar
Negotiable
/ Set
1 Set(Min. Order)
- T/T
You May Like
-
Telecom Cabinet 19-Inch Rack Power Distribution Unit With ACDC Module Power Distribution Box Panel
-
Telecom Cabinet High-Efficiency 3000W & 5000W IP55 Outdoor Air Conditioners for Telecom & Electrical Cabinets
-
KDST Telecom Cabinet 48-Volt DCDU Power Systems & Distribution Units for Reliable Infrastructure Power Solutions
-
40U DC Power System Outdoor Cabinet With 2000W Cabinet Air Conditioner
-
28U Outdoor Telecom Cabinet | Outdoor Server Cabinet Of 1500W Air Conditioner
-
Telecom Cabinet 25U Solar Cabinet With Integrated System Capability
Product Details
| Brand Name | KDST | Place of Origin | China | |
| Model Number | K48300F02A |
Product Description
Communication base station: provide stable DC power supply for communication base stations in remote and urban areas to ensure the continuous operation of communication networks.
Remote monitoring and control system: Support monitoring stations in remote areas, such as meteorological monitoring stations and border security monitoring.
Renewable energy project: as a key part of solar power generation system, especially in remote or off-grid areas.
Industrial and commercial facilities: provide backup or main power supply to support key operations, such as data centers and manufacturing plants.
| Specifications | ||
| Type K48300F02A (Support customization) | ||
| System | Dimension：482.0(W)*350.0(D)*5U(H) | |
| Weight: ≤20kg (without rectifiers) | ||
| Cooling mode：Natural cooling | ||
| Installation mode: Installed on 19-inch rack or inside the cabinet | ||
| Cabling mode: Top inlet and top outlet | ||
| Maintenance mode: Front maintenance, support module grade change | ||
| Protection level: IP 20 | ||

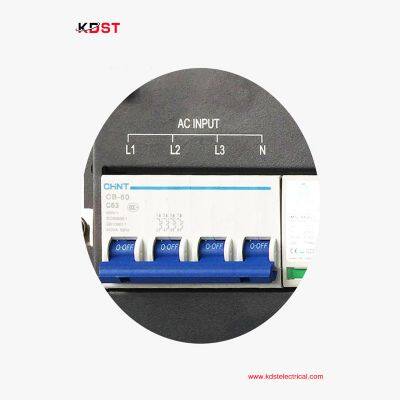

| AC Distribution | Input mode: 220/380VAC three-phase | |
| Input capacity: 1×63A/4P | ||
| Input frequency: 45~65Hz, rated value: 50Hz/60Hz | ||
| AC SPD: 20kA/40kA, 8/20μs | ||
| DC Distribution | Output voltage: -43~-58VDC, rated value: -53.5VDC | |
| Maximum capacity: 18kW | ||
| Battery breakers: 2× 125A/2P | ||
| Load breakers: LLVD: 63A/1P×2, 32A/1P×3, 16A/1P×1 (Customizable), BLVD: 63A/1P×1, 32A/1P×2, 16A/1P×3 (Customizable) | ||
| DC SPD: 10kA/, 8/20μs | ||
| Rectifier | Input voltage: 85VAC～300VAC, rated 220VAC | |
| Efficiency:>96% | ||
| Rated power: 6×3000W (176~300VAC) | ||
| Working temperature: -40℃~+75℃(fully output below 50℃) | ||
| Dimension: 106.5mm(W)×286mm(D)×41.5mm(1U/H) | ||
| Weight: ≤2kg | ||
| Cooling mode: Forced cooling | ||
| Power factor: ≥0.99 | ||
| THD: ≤5% | ||

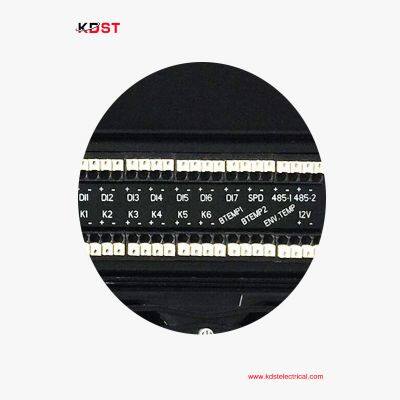

| Controller | Signal input: 4 AI (3 Battery temp., 1 ambient temp), 7 DI (SPD, 6 common DI) | |
| Alarm output: 6 dry contacts | ||

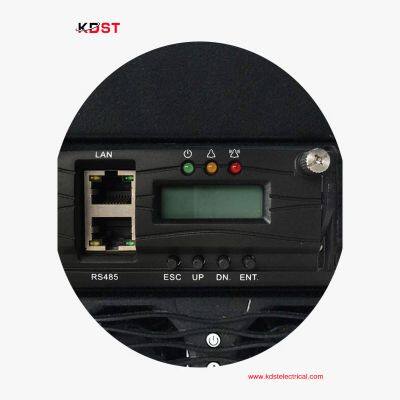

| Communication port: RS485, SNMP | ||
| Display mode: LCD | ||
| Environment | Operating temperature: -40℃~+75℃(fully output below 50℃) | |
| Storage temperature: -40℃~+70℃ | ||
| Operating humidity: 5%~95% (non-condensing) | ||
| Altitude: 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating | ||
| temperature decreases by 1℃ as the altitude increases by 200m.) | ||
