Help CenterPole-mounted Outdoor Electrical Cabinet With Air Conditioning and Distribution Unit
Related Products
-
15U Outdoor Column Cabinet Power Rack Battery Rack With 500W Air Conditioner 100AH Battery BankNegotiableMOQ: 1 Set -
Customizable Telecom Enclosure With 48V Lithium Battery & 1500W DC Air ConditionerNegotiableMOQ: 1 Set
-
KDST 42U Telecom Battery Cabinet With 1500W AC & 200Ah Capacity – Outdoor Electrical EnclosureNegotiableMOQ: 1 Set
-
KDST 18U Outdoor Telecom Cabinet With 500W AC & Battery RackNegotiableMOQ: 1 Set
-
25U Solar Battery Cabinet With 40kWh Energy Storage System Electrical EnclosureNegotiableMOQ: 1 Set

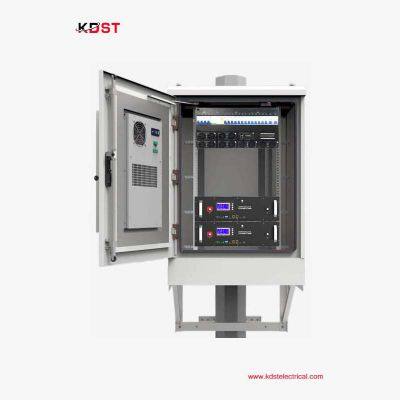

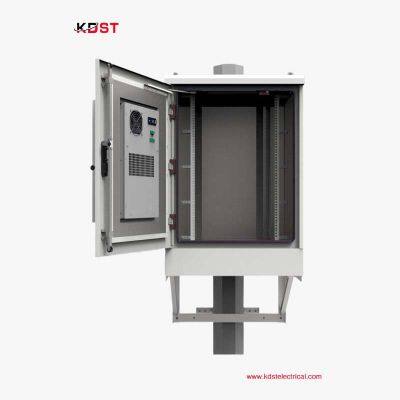

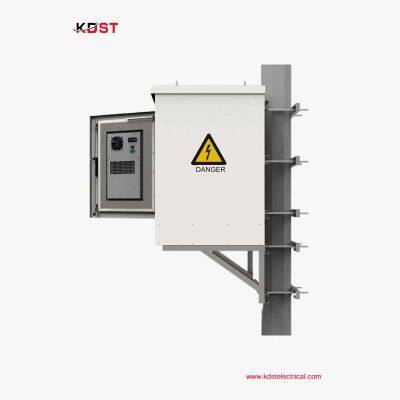

The 12KW battery cabinet features 48V200AH batteries and a pole-mounted installation. This outdoor system, designed as a pole-mounted outdoor electrical cabinet with air conditioning and a distribution unit, is ideal for various applications including telecommunication base stations, renewable energy storage (solar and wind), backup power supplies, and any outdoor equipment requiring high-capacity power support.
Specification parameters:K-ODC7710M01
| Cabinet | Size: W700mm×D700mm×H1000mm (Including base) | |
| Internal space: 19 inch 18U, 4pack L device bracket | ||
| Material: Single layer galvanized steel (optional) | ||
| Insulation: 20mm PEF | ||
| Door：One front door | ||
| Grounding bar：5 hole grounding bar | ||
| Coating: Polyester powder coating | ||
| Color: RAL7035 | ||
| Protection level: IP 55 | ||
| Mounting type:Floor mount | ||
| Cable entry:4 Φ50mm cable waterproof joints | ||
| LED: 48VDC LED (optional) | ||
| Cooling | Cooling capacity: 500W | |
| Power input: 48VDC | ||
| Communication mode: RS485 | ||
| Protection level: IP55 | ||
| Refrigerant: R134a | ||
| DC rectifier system | AC:Input capacity:220VAC,1×63A/2P | |
| AC:Input frequency 45~65Hz, rated value: 50Hz/60Hz | ||
| AC:SPD 20kA/50kA | ||
| DC:Output voltage -43~-58VDC, rated value: -53.5VDC | ||
| DC: Maximum capacity 12KW (4 PSU modules, each 3KW) | ||
| DC:Battery breakers 125A/1P×2 (Customizable) | ||
| DC:LLVD:63A/1P×2, 32A/1P×2, 16A/1P×3 (Customizable) | ||
| DCBLVD: 63A/1P×1, 32A/1P×1, 16A/1P×1 (Customizable) | ||
| Monitoring unit:Signal input:4 AI(3 Battery temp., 1 ambient temp),7 DI(SPD, 6 common DI).Alarm output:6 dry contact,Communication port:RS485, SNMP | ||
| Sensor | Door sensor, Smoke sensor, Water sensor, temperature sensor (optional) | |
| lithium battery | 2 sets of 48VDC 100AH lithium batteries | |
| Environment | Operating Temperature: -40℃~+55℃ (+ Solar radiation) | |
| Storage Temperature：-40℃~+70℃ | ||
| Operating Humidity: 5%~95% (No condensation) | ||
| working altitude: 0~4000m | ||
Applications
Telecommunication Base Stations: Provide uninterrupted power supply to base stations, ensuring the stable operation of communication networks.
Renewable Energy Storage: Store electricity generated from solar or wind energy for various purposes, including supplying power during off-peak periods or serving as an emergency backup power source.
Urban Infrastructure: Support the power needs of city public facilities such as streetlights, surveillance cameras, and traffic signals, especially in remote areas or locations not covered by the electrical grid.
Outdoor Workstations and Equipment: Supply power to outdoor research facilities , mobile workstations, or any remotely operated electronic devices.
