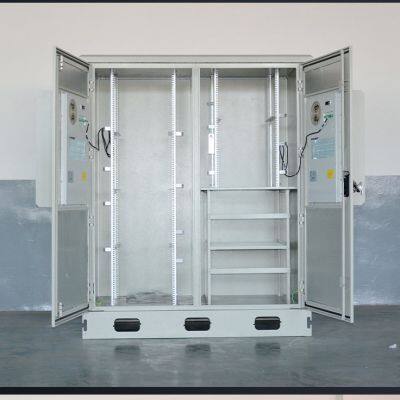

This outdoor cabinet system is designed to provide a safe and clean environment for standby power supply , communication, IT or industrial equipment in harsh or outdoor environment. Typical applications include cellular BTS (base station transceiver), road and rail traffic measurement, data and metering equipment, and industrial process control. It is suitable for any application that needs to install sensitive equipment and standby power supply in a harsh environment.
K-ODC16821P01 Specification parameters (Support customization):
| Cabinet | Size: H2100mm×W1600mm×D800mm | |
| Internal space: One set of 19-inch 42U brackets, one set of 19-inch 20U brackets and two layers of batteries | ||
| Material: Single layer | ||
| Insulation: 20mm PEF | ||
| Door：Two doors | ||
| Grounding bar：10 hole grounding bar | ||
| Coating: Polyester powder coating | ||
| Color: RAL7035 | ||
| Protection level: IP 55 | ||
| Mounting type: Floor mount | ||
| Cable entry: Eight 50-mm diameter cable flying-over sealing rings | ||
| Lighting: 48VDC LED | ||
| Cooling | Cooling capacity: 1500W*2 | |
| Power input: 220VAC 50Hz | ||
| Communication mode: RS485 | ||
| Protection level: IP55 | ||
| Refrigerant: R134a | ||
| Sensor | Door sensor, Smoke sensor, Water sensor, temperature sensor | |
| Power distribution unit | AC:220V single phase | |
| AC:Input capacity: 1×63A/2P | ||
| AC:SPD 40kA AC:32A/1P×2, 16A/1P×3 | ||
| DC:Battery breakers 125A/1P×2 | ||
| Battery | Eight 12V 200AH lead-acid batteries. | |
| Environment | Operating Temperature: -40℃~+55℃ (+ Solar radiation) | |
| Storage Temperature：-40℃~+70℃ | ||
| Operating Humidity: 5%~95% (No condensation) | ||
| working altitude: 0~4000m | ||
* High protection level: IP55
* Strong anti-theft ability, embedded door, inner hinge, three-point lock, supporting additional padlock.
* The air conditioning system is installed on the cupboard door, which is convenient for maintenance and replacement.
* Comprehensive protection: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.
* Support remote management, improve security and minimize customer operating costs.
