Home > Products > Outdoor Cabinet > 32U Power Cabinet Electrical Housing 19-Inch Mounting for 6KW Telecom Equipment

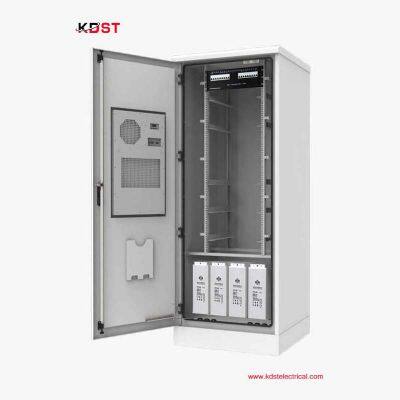

32U Power Cabinet Electrical Housing 19-Inch Mounting for 6KW Telecom Equipment
Negotiable
/ Set
1 Set(Min.Order)
- 2000 Set / Sets per Month
- T/T
You May Like
-
Telecom Cabinet High-Capacity 48V 4 Group 200AH Battery Cabinet | IP55 Outdoor Electrical Protective Enclosure
-
KDST Telecom Cabinet 20U Electrical Enclosure for DC Power Supply & Solar MPPT Installation | Reliable Power Solutions for Telecom & Solar Systems
-
Telecom Cabinet 24U Outdoor Battery Cabinet & Solar Electric Cabinet 1000W Refrigeration System
-
Telecom Cabinet 48V 19-Inch 3KVA DC to AC Inverter 2400W 48VDC to 220VAC for Telecommunication Power Systems
-
Communication And Solar Backup 48v Iron-Lithium Energy Storage Battery Rack
-
19-Inch 18kw High-Power Dc Power System With Integrated Mppt Solar
Product Details
| Brand Name | KDST | Place of Origin | China | |
| Model Number | K-ODC78210B01 |
Product Description
The Electrical Cabinet Housing is designed to accommodate a 19-inch 32U power cabinet, providing a robust solution for managing 6KW telecom equipment. This enclosure is engineered for optimal performance and security in telecom infrastructure settings.
Product Features:
1. High Capacity: With a 32U space, it supports a 19-inch power cabinet, ideal for housing 6KW of telecom equipment, offering ample room for essential components.
2. Durable Construction: Crafted from high-quality materials, this housing is built to withstand the demanding environments of telecom facilities.
3. Optimized for Telecom: Specifically designed to meet the needs of telecom infrastructure, ensuring efficient electrical management and reliability.
K-ODC78210B01 Specification parameters (Support customization)
| Cabinet | Size: W700mm×D800mm×H2150mm (Including base) | |
| Internal space: 19 inch 32U, One layer battery rack | ||
| Material: Single layer galvanized steel (optional) | ||
| Insulation: 20mm PEF | ||
| Door：One front door | ||
| Grounding bar：10 hole grounding bar | ||
| Coating: Polyester powder coating | ||
| Cable entry: 4 PG29 cable waterproof joints | ||
| Lighting: 48VDC LED (optional) | ||
| Fan: Two 48VDC 12038 180CFM and one fan temperature controller (optional) | ||
| Color: RAL7035 | ||
| Protection level: IP55 | ||
| Mounting type: Floor mount | ||
| Cooling | Cooling capacity: 1500W | |
| Power input: 220VAC 50Hz | ||
| Communication mode: RS485 | ||
| Protection level: IP55 | ||
| Refrigerant: R134a | ||
| Sensor (optional) | Door sensor, Smoke sensor, Water sensor, temperature sensor | |
| Power distribution unit | AC:220V single phase | |
| (optional) | AC: Input capacity: 1×63A/2P | |
| AC:SPD 40kA AC:32A/1P×2, 16A/1P×3 (Customizable) | ||
| DC:Battery breakers 125A/1P×1 (Customizable) | ||
| Battery (optional) | 4* 12V200AH lead-acid batteries | |
| Environment | Operating Temperature: -40℃~+55℃ (+ Solar radiation) | |
| Storage Temperature：-40℃~+70℃ | ||
| Operating Humidity: 5%~95% (No condensation) | ||
| working altitude: 0~4000m | ||
