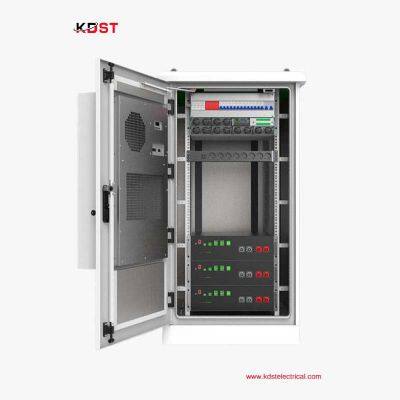

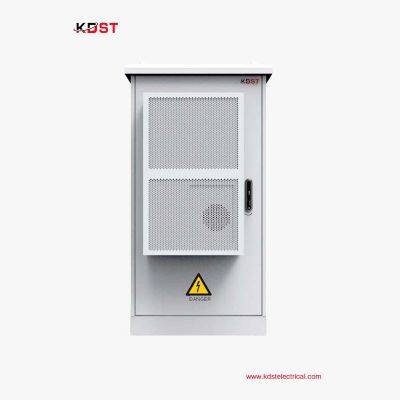

28U Outdoor Telecom Cabinet | Outdoor Server Cabinet Of 1500W Air Conditioner
- 2000 Set / Sets per Month
- T/T
You May Like
-
Telecom Cabinet 25U Solar Cabinet with Integrated System Capability
-
Pole-mounted Outdoor Electrical Cabinet with Air Conditioning and Distribution Unit
-
15U outdoor column cabinet power rack battery rack with 500W air conditioner 100AH battery bank
-
Customizable Telecom Enclosure with 48V Lithium Battery & 1500W DC Air Conditioner
-
KDST 42U Telecom Battery Cabinet with 1500W AC & 200Ah Capacity – Outdoor Electrical Enclosure
-
KDST 18U Outdoor Telecom Cabinet with 500W AC & Battery Rack
Product Details
Brand Name | KDST | Place of Origin | China | |
Model Number | K-ODC77155B02 |
Product Description
Introduction: The 28U Outdoor Telecom Cabinet is meticulously engineered for outdoor environments, offering robust storage solutions with an 18 kW capacity for solar batteries. This cabinet is designed to ensure a consistent and reliable power supply, particularly in remote and harsh conditions, making it an essential component for telecom operators seeking sustainability and efficiency.
Specification parameters:K-ODC77155B02
Cabinet | Size: W750mm×D750mm×H1550mm | |
Internal space: 19 inch 28U, 5pack L device bracket | ||
Material: Single layer galvanized steel (optional) | ||
Insulation: 20mm PEF | ||
Door:One front door | ||
Grounding bar:10 hole grounding bar | ||
Coating: Polyester powder coating | ||
Color: RAL7035 | ||
Protection level:IP55 | ||
Mounting type:Floor mount | ||
Cable entry:4 PG29 cable waterproof joints | ||
Lighting:48VDC LED (optional) | ||
Cooling | Cooling capacity: 1500W | |
Power input: 48VDC | ||
Communication mode: RS485 | ||
Protection level: IP55 | ||
Refrigerant: R134a | ||
Power distribution unit | DC Input capacity: 1×63A/2P | |
DC rated value: 48VDC | ||
DC SPD 40kADC | ||
Output:32A/1P×2, 16A/1P×3 | ||
Battery:100A/1P×3 | ||
Sensor | Door sensor, Smoke sensor, Water sensor, temperature sensor (optional) | |
lithium battery | 3 sets of 48VDC 100AH lithium batteries | |
Environment | Operating Temperature:-40℃~+60℃ (+ Solar radiation) | |
Storage Temperature:-40℃~+70℃ | ||
Operating Humidity:5%~95% (No condensation) | ||
working altitude:0~4000m |
Product Features
1. High Capacity
18 kW Power Storage: Designed to accommodate significant energy storage needs, this cabinet is suitable for demanding telecom applications, ensuring that your communication systems remain operational even under extreme conditions.
2. Solar Battery Compatibility
Eco-Friendly Power Solution: Optimized for use with solar batteries, the cabinet harnesses renewable energy, reducing dependency on traditional power sources and promoting sustainability.
3. Durable Outdoor Design
Weather-Resilient Construction: Built to withstand adverse weather conditions, including rain, dust, and extreme temperatures, ensuring reliable performance in all environments.
4. Secure & Accessible
Enhanced Security Features: Equipped with secure locks and structured cable management, it facilitates easy access and maintenance while protecting components from unauthorized access.
5. Energy Efficiency
Operational Cost Reduction: Incorporates features designed to minimize energy loss and maximize efficiency, contributing to lower operational costs and a smaller carbon footprint for your telecom operations.
6. Versatile Installation
Flexible Configuration Options: The cabinet is designed for easy installation in various outdoor locations and telecom infrastructure setups, adapting to the diverse needs of your operations.
7. Smart Cooling System
Optimal Temperature Maintenance: It includes an efficient cooling system to maintain optimal temperatures, ensuring the longevity and reliability of stored batteries and electronics.
Why Choose the 28U Outdoor Telecom Cabinet?
This cabinet is ideal for telecom operators looking to enhance the sustainability and operational efficiency of their communications networks. With its solar power capabilities, durable design, and secure features, the 28U Outdoor Telecom Cabinet is a critical component in maintaining uninterrupted communication in today’s demanding environments.
Conclusion
If you’re in the telecom industry and require a robust, environmentally friendly solution for your power needs, KDST Electrical’s 28U Outdoor Telecom Cabinet is the perfect choice. Leverage renewable energy through solar power, meet high energy demands, and ensure your operations are both secure and efficient.
Contact KDST Electrical today to learn more about our innovative outdoor telecom solutions!
