Summary
l Deep Drawing Parts for Auto Industries, Made of Progressive Die Sheet metal workmanship
l Deep drawing /stamping /rivet welding /painting /pressure testing
l Very high producing rate
l Professional team & exquisite workmanship
l Considerable after sale service
l Excellent dimension rate
l Very competitive price
l Excellent repeatability
Application
Adhesive products, backlight, dust screen, copper foil, aluminum foil, protective film, PE, pet, optical film, black-and-white adhesive, frame adhesive, single and double-sided adhesive, Mylar, foam and other materials.
Features

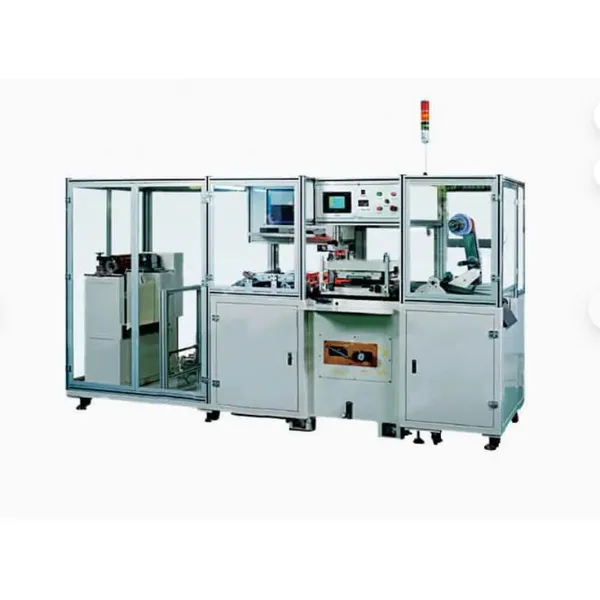

1 The Automatic shear cutting machine is mainly used for lithium battery big electrode cutting after coating process or after continuous rolling press process. Cutting big electrode is easier to slit or punch small pieces for battery making.
2 ZYD140 model battery electrode cutting machine has a 500mm cutting width with set cutting length, it can be used for lithium battery lab research and production line.
Parameters
Source voltage | AC 220V/110V, 50HZ/60HZ |
Power | 500W |
Warranty | Two Years limited warranty with lifetime support |
Max electrode width | 500mm |
Cutting material | Battery continuous or clearance cathode and anode electrode |
Cutting speed | 0-12m/min, adjustable |
Cutting accuracy | ≤±0.3mm |
Dimension(L*W*H) | 1450*1250*1050mm |
Advantage | 1 Driven by stepper motor feed, fixed-length precision is high 2 PLC control, set length, easy to operate, intuitive 3 With digital set fixed-length cutting, clearance trace length shearing 4 Pneumatic drive shear, little noise |
