4xA53+M0 1TOPS NPU RS485 CAN 12DI Smart Linux IoT Industrial Computer for Smart Station

^{The ARMxy series ARM embedded computer BL370 series is an industrial-grade ARM contr oller with flexible I/O. It is designed with the Rockchip RK3562/RK3562J processor, featuring a quad-core ARM Cortex-A53 and a single-core ARM Cortex-M0, with a clock speed of up to 1.8GHz/2.0GHz. The BL370 series comes with 8/16/32GB eMMC, and various RAM and ROM combinations of 1/2/4GB LPDDR4X. It supports a rich set of I/O interfaces and is equi pped with a built-in 1TOPS NPU for deep learning. The BL370 series is widely used in indu stries such as industrial control, edge computing, AIoT, artificial intelligence, communication management, AGV, machine vision inspection, robotics, industrial IoT gateways, energy stora ge systems, automation control, and transportation rail systems.}

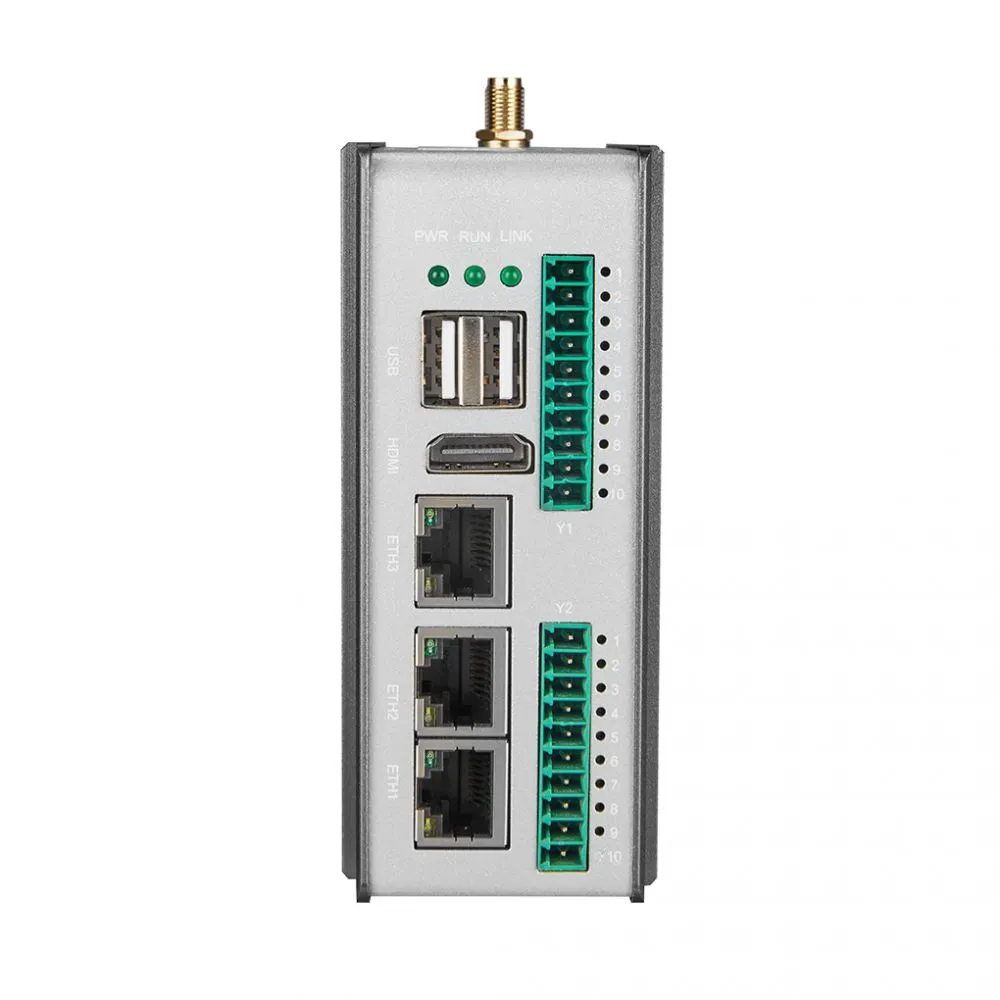

The BL370 series ARM embedded computer offers a variety of interfaces, including 3x100M Hz Ethernet ports, 2xUSB 2.0, 1xHDMI 2.0, 1 X-series I/O board, and 2 Y-series I/O boards. These interfaces can be used for communication, PWM output, pulse counting, and other da ta acquisition and control tasks. The device supports 1080P@60fps H.264 video encoding a nd 4K@30fps H.265 video decoding. It also features a built-in Mini PCIe interface, supportin g communication via Bluetooth, WiFi, 4G, and 5G modules.

The BL370 series ARM embedded computer supports various operating systems, including Li nux-5.10.198, Linux-RT-5.10.198 kernel, Ubuntu 20.04, Debian 11 (bullseye) (planned), and A ndroid 13 (planned). It also supports Docker containers, Node-RED, and Qt-5.15.2 for graphi c interface development. Additionally, the device is compatible with the BLIoTLink industrial p rotocol conversion software for industrial data acquisition and conversion, enabling fast acces s to mainstream IoT cloud platforms and industrial SCADA configuration software. Remote a ccess and maintenance can be performed through the BLRAT remote access tool, and Nod e-RED supports the rapid development of IoT applications.

Product Selection Guide

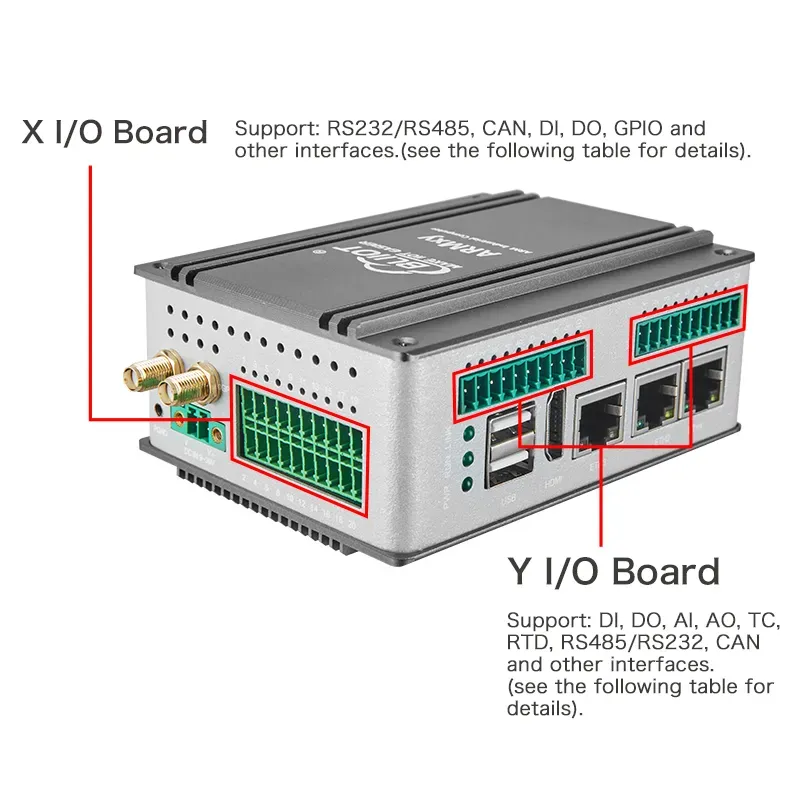

The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Modul e(SOM) boards as needed. Additionally, various X and Y boards can be selected to ach ieve diverse IO configurations, catering to the requirements of different application scena rios. Product naming convention Product Series Model Number - SOM Model Number - X Board Model Number - Y1 Bo ard Model Number - Y2 Board Model Number For example, if we had a specific product configuration:

BL370-SOM370-X10 Indicates 1 Ethernet port, 8GB eMMC, 1GB LPDDR4X, and 2 RS485 ports.

If WiFi is required, add "W" to the product series model number, e.g., BL370W-SOM370-X10.

If a 4G module is required, add "L" to the product series model number, e.g., BL370L-SOM370- X10. A

ARMxy BL370 Model List

ARMxy BL370 SOM Model List

X Series IO Board Model List

Y Series IO Board Model List
