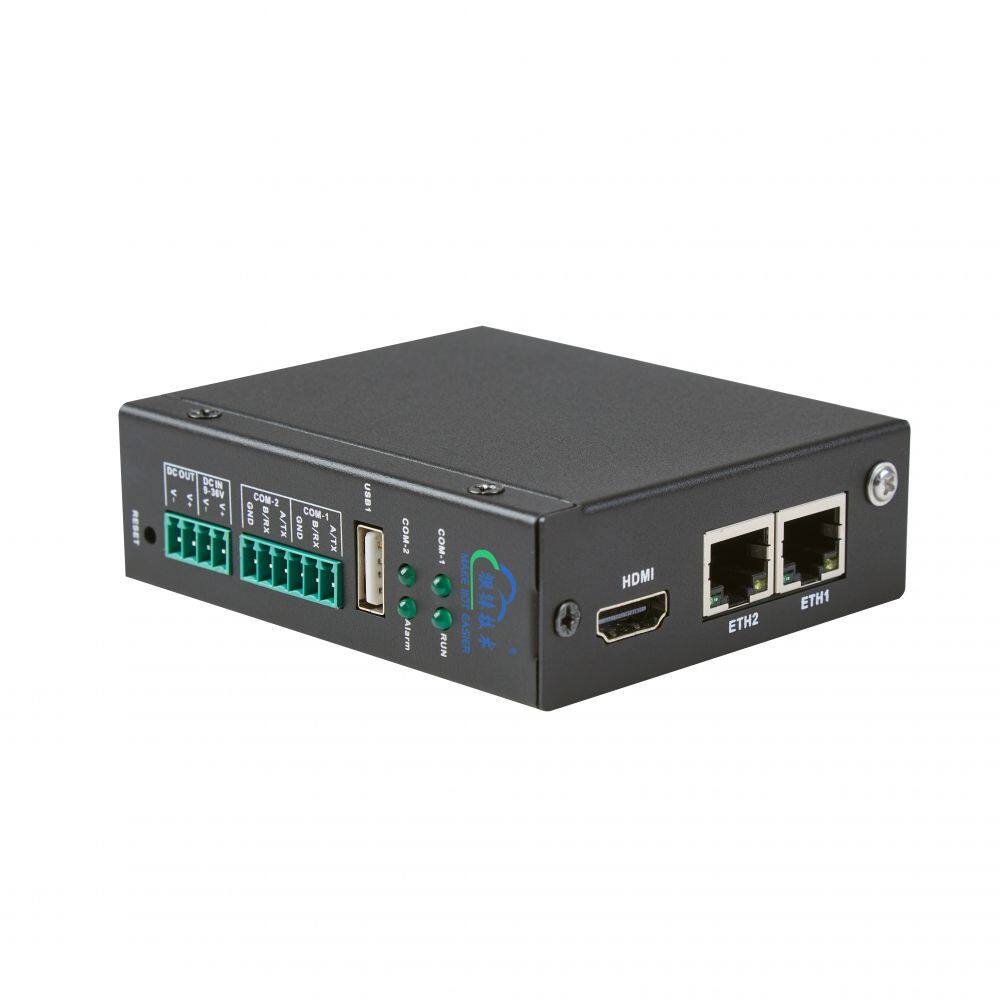

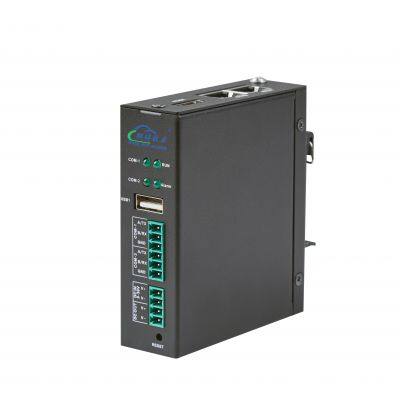

The BL301 series Embedded ARM Computer use NXP I.MX6ULL processor, with advanced ARM Cortex-A7 architecture, running speed up to 800MHz. BL301 comes with 4 RS485 or RS232, 1 CAN port, 2 Ethernet ports, 2 DI, 2 PWM output and 1 USB port, 1 power input/output port, 1 HDMI, 1 Mini PCIe expansion slot for a wireless module. The computer supports LINUX, Ubuntu, Debian and other OS; Node-Red, QT, Python, C++; MySQL, InfluxDB, SQLite and other databases. This tiny embedded computer is widely applicable to a variety of industrial solutions.
NXP I.MX6ULL processor, ARM Cortex-A7 architecture
Dual 10/100 Mbps Ethernet ports; RS485 or RS232 serial ports
1 Mini PCIe expansion slot for 4G/5G/WiFi module
Supports LINUX, Ubuntu, Debian; Node-Red, QT, Python, C++; MySQL, InfluxDB, SQLite
Automatic frequency reduction or restart when the chip is overheated
Chip frequency can be adjusted manually
Multiple sleep modes, with timing wake-up function
IP30 protection; metal shell and system are safely isolated; DIN rail installation
| Model | BL301 | BL301T | BL302 | BL302T |
| Feature | Without DI DO MINIPCIE | With DI DO MINIPCIE | ||
| Processor | i.MX6ULL | i.MX6ULL | i.MX6ULL | i.MX6ULL |
| CPU Frequency | 800MHz | 800MHz | 800MHz | 800MHz |
| RAM | 512MB | 256MB | 512MB | 256MB |
| Flash | 8G eMMC | 256MB | 8G eMMC | 256MB |
| ETH | 2 x 100M | 2x 100M | 2 x 100M | 2x 100M |
| USB | 1 | 1 | 1 | 1 |
| RS232/RS485 | 2 | 2 | 4 | 4 |
| CAN | x | x | 1 | 1 |
| SD slot | 1 | 1 | 1 | 1 |
| MINI-PCIe | x | x | 1 | 1 |
| 4G(GPS)/WIFI(BLE) | x | x | √ | √ |
| SIM slot | x | x | 2 | 2 |
| HDMI | 1 | 1 | 1 | 1 |
| Audio | x | x | x | x |
| DI | x | x | 2 | 2 |
| DO | x | x | 2 | 2 |
| House | Metal | Metal | Metal | Metal |
| Temperature(°C) | -25~85 | -40~85 | -25~85 | -40~85 |
