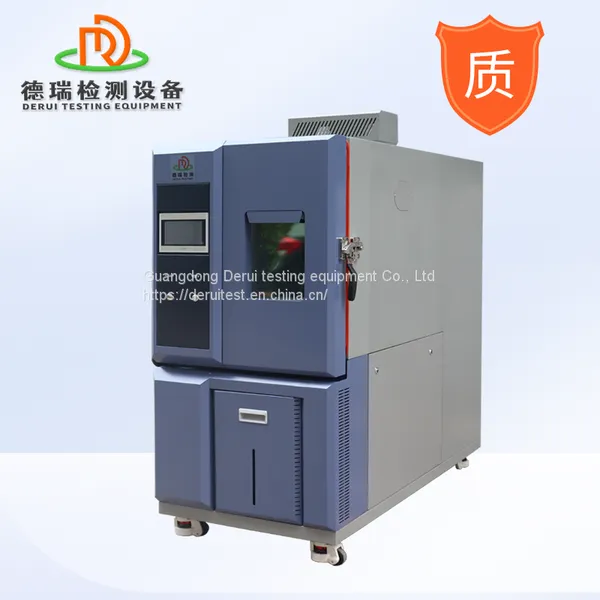

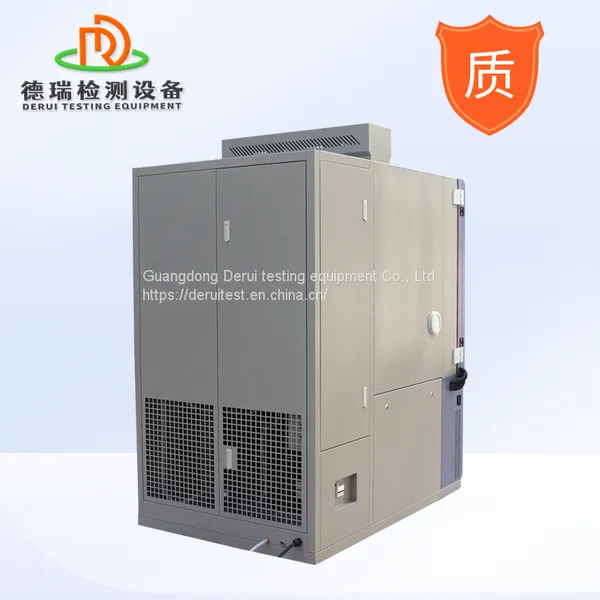

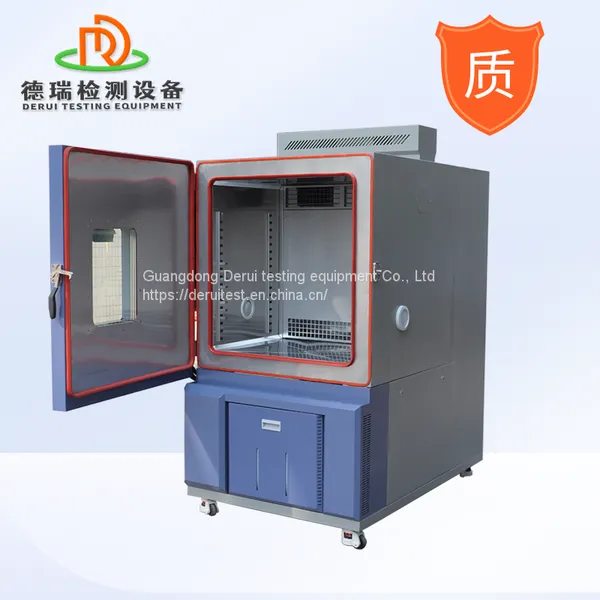

Help CenterRapid Temperature Change, Constant Temperature and Humidity Test Chamber
Related Products
-
Customizable Humidity Variation Range, Constant Temperature and Humidity Test ChamberUS$ 3999 - 9999MOQ: 1 Set -
LED Display Constant Temperature and Humidity Test ChamberUS$ 3999 - 9999MOQ: 1 Set
-
Backlight Module Reliability Constant Temperature and Humidity Test ChamberUS$ 3999 - 9999MOQ: 1 Set
-
Low Temperature and Low Humidity Complex Alternating Constant Temperature and Humidity Test ChamberUS$ 3999 - 9999MOQ: 1 Set
-
Energy Saving Constant Temperature and Humidity Test ChamberUS$ 3999 - 9999MOQ: 1 Set
Temperature and Humidity Test Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals,food, chemicals, building materials, medical care, aerospace, etc.
TEST CHAMBER APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
The rapid temperature change constant temperature and humidity test chamber is an advanced environmental simulation device specifically designed to test the performance of samples under extreme temperature changes in a short period of time. This type of device can quickly adjust the internal temperature and humidity conditions to simulate the rapid climate change situations that products may encounter in the real world. They are widely used in multiple industries, including but not limited to aerospace, aviation, electronics, automotive, batteries, etc., to evaluate the performance of materials or finished products in different environments.
###Working principle
The core of the rapid temperature change constant temperature and humidity test chamber lies in its efficient heating and cooling system, which allows it to complete the transition from low temperature to high temperature or in the opposite direction in a very short time. According to different designs, there are two main types of temperature change rates: one is the linear heating and cooling rate (i.e. the average speed every 5 minutes), and the other is the average heating and cooling rate throughout the entire process. For example, in some applications, the linear heating and cooling rate refers to the average temperature change rate within any continuous 5-minute period, which is crucial for ensuring consistency and repeatability of testing conditions.
In addition, in order to maintain a stable humidity level, the test chamber is also equipped with humidification and dehumidification devices. By installing a rotating fan at the top of the box, air is discharged into the box to achieve gas circulation and balance the temperature and humidity inside the box. The data collected by the built-in sensor is fed back to the control system for adjustment. This design ensures a relatively constant humidity environment even during rapid temperature changes, which is crucial for many applications that require strict humidity control.
###Application scenarios
####Reliability testing of electronic products
In the electronics industry, changes in temperature and humidity are often key factors affecting product performance and service life. The rapid temperature change constant temperature and humidity test chamber can accurately control the environmental temperature and humidity, simulate the extreme working environment that electronic products may encounter, such as stability testing under high temperature and high humidity, start-up performance testing under low temperature and low humidity, etc., in order to evaluate the environmental adaptability and reliability of the product.
####Aging testing of materials in the automotive industry
Automotive components such as plastic and rubber parts can age due to changes in temperature and humidity during long-term use. The use of a rapid temperature and constant temperature and humidity test chamber can accelerate this aging process, evaluate the durability of materials under different environmental conditions, and provide important basis for automotive design and material selection.
####Aerospace material performance testing
The aerospace industry has extremely strict requirements for materials. This type of test chamber can simulate extreme environments such as high altitude, low temperature, and low pressure, and perform stress testing and fatigue life analysis on materials to ensure their safety and reliability under extreme conditions.
###Special Features
In addition to basic temperature and humidity control, some advanced models of rapid temperature and constant temperature and humidity test chambers also support multi-mode testing functions, such as temperature shock, wet heat cycle, rapid temperature change, and other testing modes, to more comprehensively simulate various complex environments that products may encounter and improve the comprehensiveness and effectiveness of testing. Meanwhile, the intelligent control system allows users to easily set test parameters, monitor the testing process, record and analyze test data through touch screens or remote computers, greatly improving testing efficiency and convenience.
In summary, the rapid temperature change constant temperature and humidity test chamber is not only crucial for product quality control, but also plays an irreplaceable role in the development of new products. It can effectively help manufacturers identify potential issues and take measures to improve them, ensuring that the final product launched to the market has excellent quality and a long service life. If you are looking for a fast temperature change constant temperature and humidity test chamber that meets your needs, it is recommended to contact a professional supplier for detailed information and technical support.
