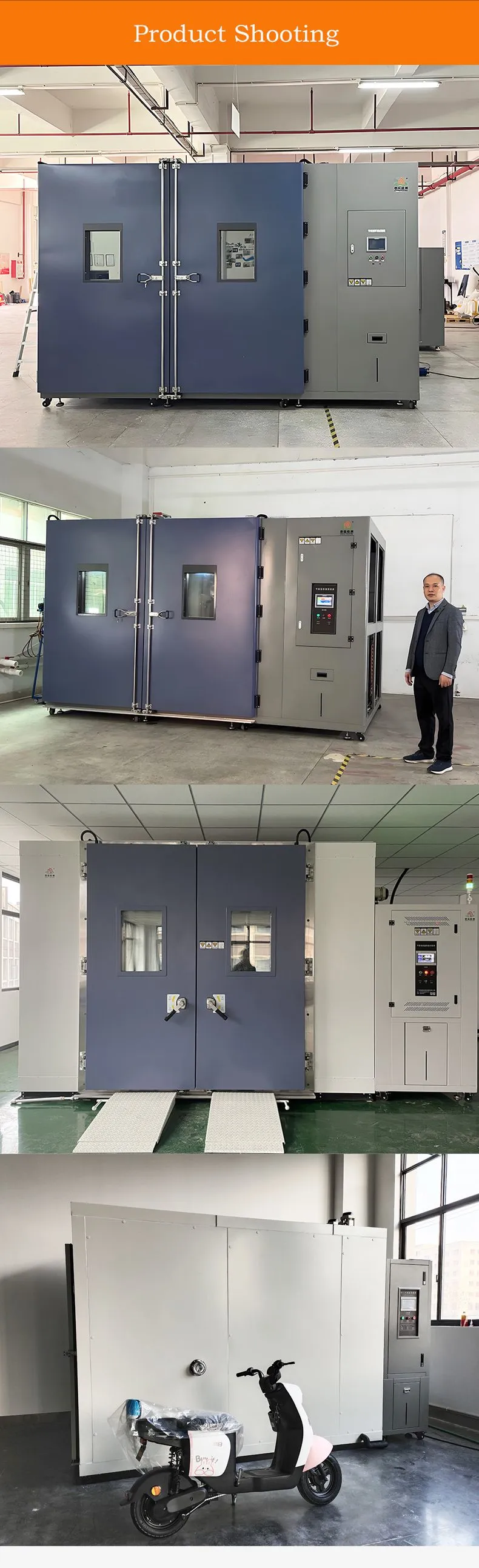

walk-in environmental test chamber ,as a climatic test chamber that may be configured to almost any large components . this walk in chamber can do Temperature/Humidity Cycling,Constant Temperature/Humidity,Extreme Temp / Humidity Testing, Fast Ramp Rate,Storage Testing,Altitude Testing,Vibration Integration,Solar Simulation etc.

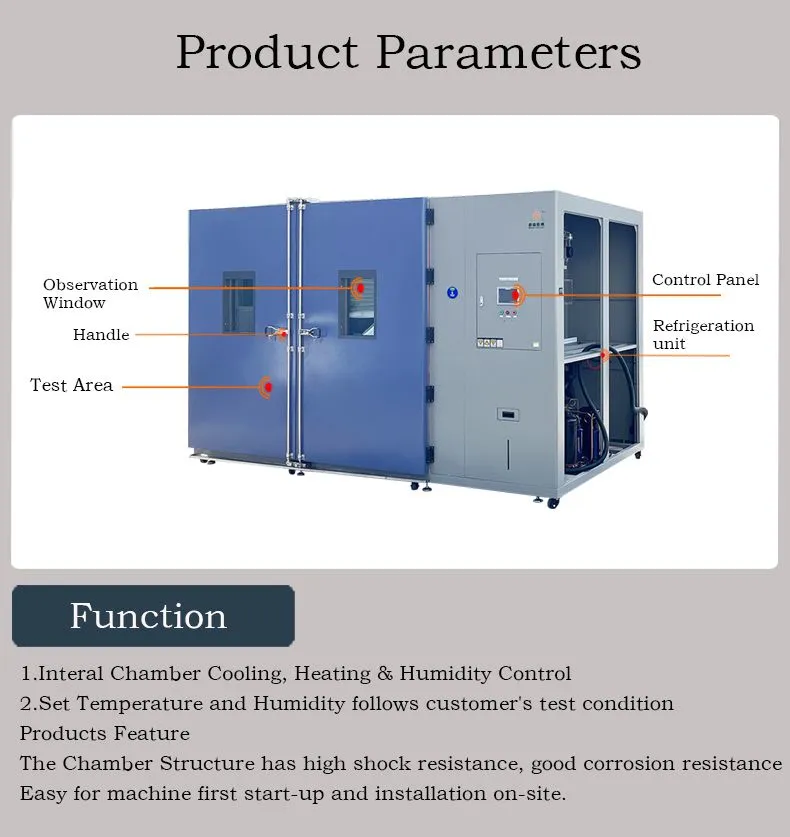

walk-in environmental test chamber main for the industry of large parts, semi-finished and finished products of the temperature and humidity testing, such as computer terminals, auto parts. Room temperature and humidity is mainly composed of a control panel, distribution plate, base plate, wet blower, heater, humidifier, refrigerator and.
FEATURES
1.Walk-in chamber has a big temperature / humidity range and can meet user’s entire requirement. It adapts to unique balance thermoregulation & humidifying way and can get a safety, precise temperature humidity environment. It has stability, balance heating, humidifying function and also can proceed in high precision, high stability temperature humidity control.
2.Walk-in test room is equipped with high precision intelligentized thermoregulator, temperature and humidity adapt LCD display control 7551 program instrument ( it also can use OYO-5461 according to user requirement), can choose the temperature humidity recode instrument.
3.Walk-in test room can choose computer for remote control according to the function.
4.Automatic select the refrigerating circuit, the automatic control instrument can automatic choose operate refrigerating circuit’s function according to the temperature set value, and direct-on line starting refrigerating machine in high temperature condition which can cooling directly.

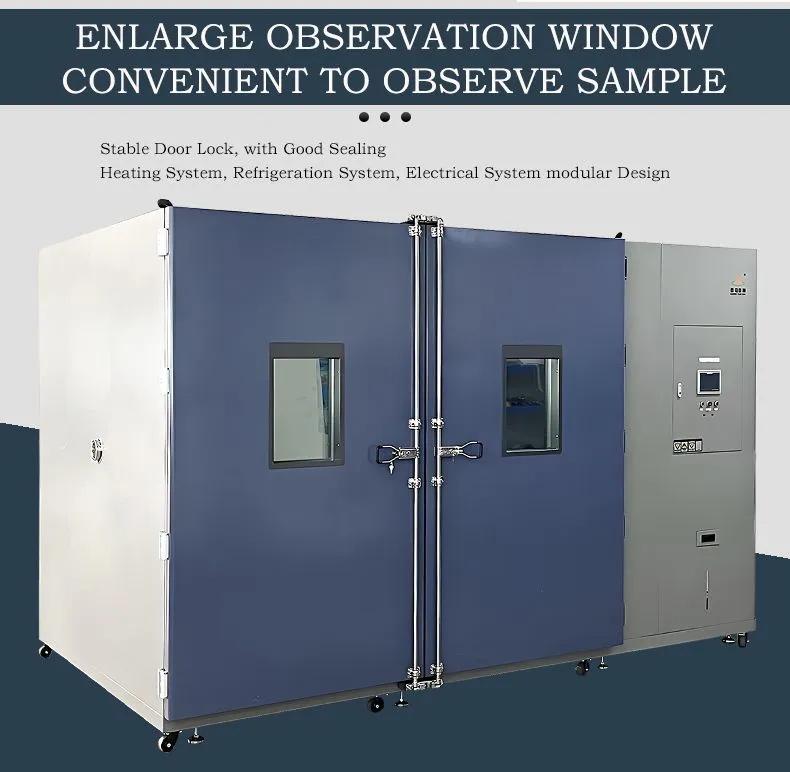

5.The interior door is equipped with big observation window which convenient for viewing the test status of specimen.
6.Walk-in room is equipped with advanced safety protection device --- residual current device; overheat protector, phase failure protector, water-break protector.
SPECIFICATION
Model |
DR-H202 |
System |
Balanced Temperature & Humidity Control System |
Temp. range |
-70°C~150°C |
Humid. range |
20 ~ 98 percent R.H. |
Temp. & Humid. accuracy |
± 0.3°C; ± 2 percent R.H |
Temp. & Humid. regularity |
± 1°C; ± 3 percent RH |
Resolution |
0.1°C, 1 percent, P.I.D control |
Heating up |
-40°C ~ +100°C within 45 min |
Heating down |
20°C~ -20°Cwithin 40min |
Interior dimension(W×D×H) |
1500×1200×1500mm |
Exterior dimension(W×D×H) |
1700×2703×2085mm |
Interior material |
Stainless steel plate(SUS304) |
Exterior material |
Stainless steel plate(SUS304) |
Insulation |
Rigid foam |
Refrigeration system |

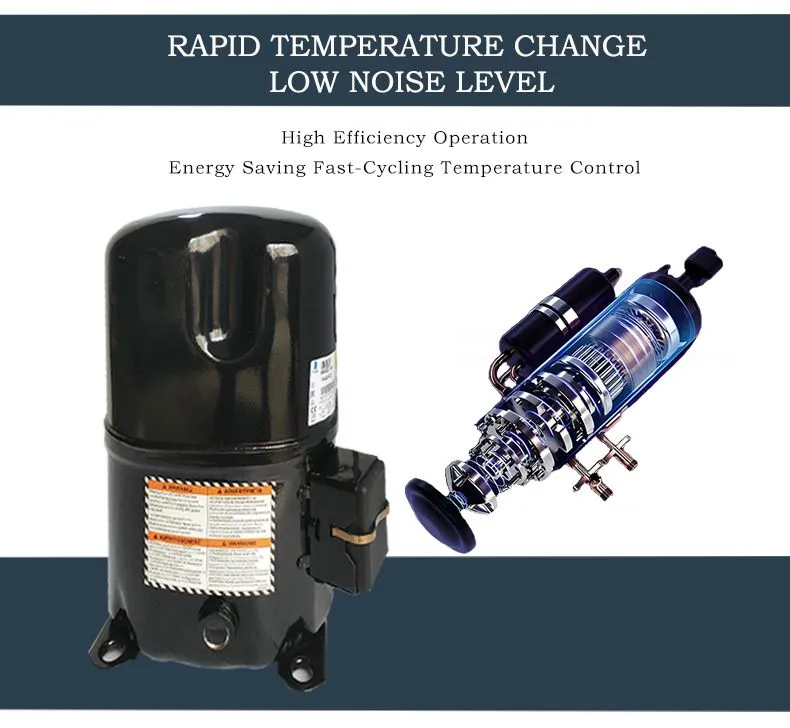

Air cooled, Hermetic compressor, single stage refrigeration system. |
Display |
LCD |
Safety devices |
No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
Accessories |
Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
Weight |
Approx. 1200kg |
Power |
AC380V±10 percent 50/60Hz |
Walk-In Temperature and Humidity Test Chamber with Automatic Data Statistics is an advanced environmental testing device widely used for testing large or complex products under varying temperature and humidity conditions. This test chamber integrates temperature and humidity control, data recording, and statistical analysis capabilities to simulate a variety of extreme environmental conditions, assessing the performance, stability, and durability of products under different temperature and humidity scenarios.
Key Features:Walk-In Design:
The walk-in temperature and humidity test chamber is typically large enough to allow users to enter the chamber for operation or to place large items for testing. It is suitable for testing large-sized products, such as electronic devices, battery packs, automotive parts, etc.
Automatic Data Statistics:
The chamber comes equipped with an advanced data acquisition system that automatically records environmental data such as temperature and humidity during testing. It enables real-time monitoring and automatic statistical analysis, ensuring accurate tracking of the data changes throughout the testing process.
The data is automatically stored, analyzed, and can generate reports, reducing manual operation and improving testing efficiency and data accuracy.
Precise Temperature and Humidity Control:
The test chamber uses a precise temperature and humidity control system to maintain stable environmental conditions. It can simulate a wide range of temperature and humidity, ensuring optimal testing environments for various scenarios.
Temperature ranges typically from -70°C to +150°C, and humidity can be controlled from 10% RH to 98% RH, accommodating various testing needs.
Multi-Stage Testing Capability:
The chamber supports multi-stage temperature and humidity cycling tests, allowing users to define different temperature and humidity conditions for each stage. Multiple stages can be set to simulate real-life environmental changes during the testing process.
For example, the test can be programmed with different temperature cycles (high, low, and ambient temperature) and humidity variations (humidity increase or decrease) for long-term aging or accelerated aging tests.
Automatic Alarm and Fault Detection:
The chamber is equipped with a fault detection system and multiple alarm functions. If the temperature or humidity exceeds the set range, or if a fault occurs in the system, it will automatically trigger an alarm.
This feature helps detect problems in real-time, preventing data deviations or equipment damage, ensuring safety and reliability during testing.
High-Precision Sensors and Control System:
The chamber is equipped with high-precision temperature and humidity sensors and a control system that ensures the testing environment meets the required conditions. The temperature and humidity control accuracy typically reaches ±0.1°C and ±1% RH, ensuring high accuracy of the test data.
Remote Monitoring and Data Access:
Some advanced walk-in temperature and humidity test chambers support remote monitoring. Users can access test data via a network, enabling real-time monitoring and operation for remote management of experiments.
Remote control allows users to adjust test parameters and view progress without being physically present in the chamber.
Electronics and Electrical Product Testing:
It is used for testing the performance of electronic products, mobile phones, computer accessories, circuit boards, etc., under different temperature and humidity conditions, simulating various extreme environments to assess their stability, durability, and functionality.
Battery and New Energy Equipment:
It is used for testing the environmental adaptability of battery packs, lithium batteries, electric vehicle batteries, and other new energy devices, particularly their charge-discharge performance and cycle life under different temperature and humidity conditions.
Automotive Parts and Materials:
This chamber is used for testing the environmental adaptability of automotive electronic parts, materials, and onboard equipment in high and low temperatures and varying humidity, such as automotive sensors, navigation systems, and interior materials.
Biopharmaceutical and Medical Device Testing:
It is used in the pharmaceutical industry to test the storage stability and quality of pharmaceuticals, medical devices, and vaccines under specific temperature and humidity conditions.
Solar and Wind Energy Equipment:
It is used for reliability testing of solar panels, wind turbines, and other energy products, ensuring their stability and performance under extreme environmental conditions.
Packaging Materials and Consumer Goods:
This chamber is used to test the durability and sealing properties of various packaging materials and also to evaluate the impact of environmental changes on consumer goods, such as food and cosmetics, during storage and transportation.
