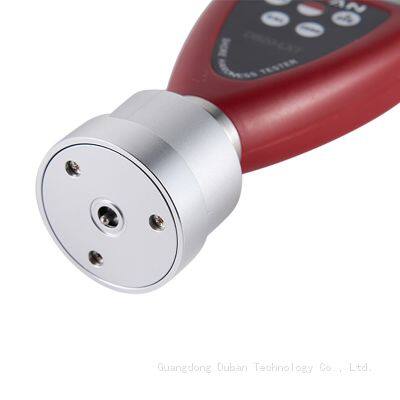

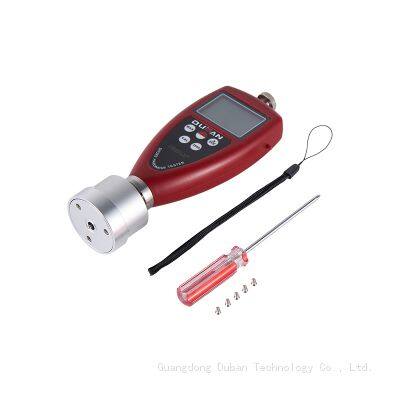

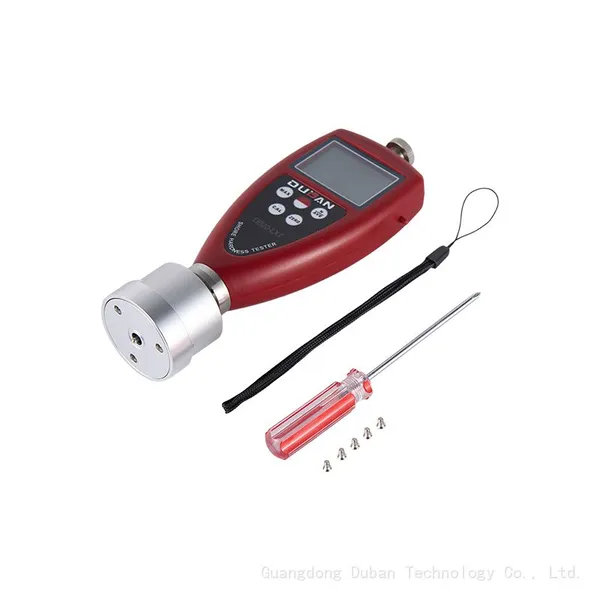

TEXTILE HARDNESS TESTER DB20-LX-T
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DUBAN
Place of Origin:
China
Model Number:
DB20-LX-T
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
3 days
Related Products
-
Paint Hardness Tester /Instrument and Meter Manufacturer/OEMNegotiableMOQ: 1 Piece -
Shore Hardness Tester Test Stand AMNegotiableMOQ: 1 Piece
-
Wood Density Meter DB20-LX-DENNegotiableMOQ: 1 Piece
-
TEXTILE HARDNESS TESTER DB20-LX-TNegotiableMOQ: 1 Piece
-
Webster Hardness Tester DB17-20/20+NegotiableMOQ: 1 Piece
Brand Name
DUBAN
Place of Origin
China
Model Number
DB20-LX-T
-
【Product Descriptions】
Textile Hardness Tester DB20-LX-T is used to measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye
packages etc. The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the
spool under a known spring load.
【Product Features】
-
Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal
to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.
-
With average calculate, peak value deposit function.
-
Use USB data output to connect with PC.
Provide Bluetooth data output choice.
【Product Specifications】
Model DB20-L X-T2.5 DB20-L X-T5 DB20-L X-T10 Area Of Application For closely wound bobbins of synthetic,
finished fibers and filamentsFor loosely wound bobbins of synthetic
fibers and closely wound natural fibers,
yarns and threadsFor very loosely wound bobbins of thick
yarns, such as carpet yarnsIndenter Ball φ2. 5mm Ball φ5mm Ball φ10mm Parameters Tested Result/ Mean Value / Max. Value Convertible Probe The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the planeend of the probe is suitable for the bobbin with a diameter greater than 400mm Display Range 0~ 100H (hardness graduation marks) Testing Range 10~90H (hardness graduation marks) Accuracy ≤+1H Battery Indicator Low Battery Indicator Resolution 0.1H Auto Switch Off √ Depth Of Indentation 0~2.5mm Test Pressure Approx. 12. 5N Measuring Spring Force 0. 55~8.065N Scale Diameter 51mm Working Face Radius 55mm (when using the curved end of the probe) Working Face Flat φ45mm(when using the plane end of the probe) Operating Temperature 0~40°C Operating Humidity Power Supply 2x1.5vAAA (UM-4)Battery Size 178x65x45 mm Weight 290 g (Not included Batteries)

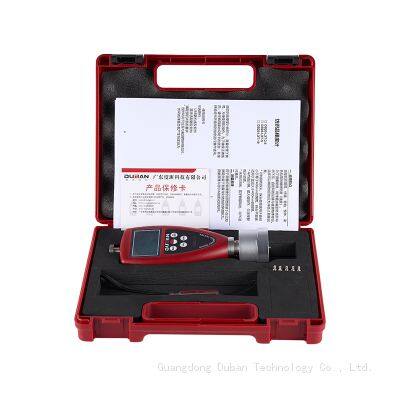

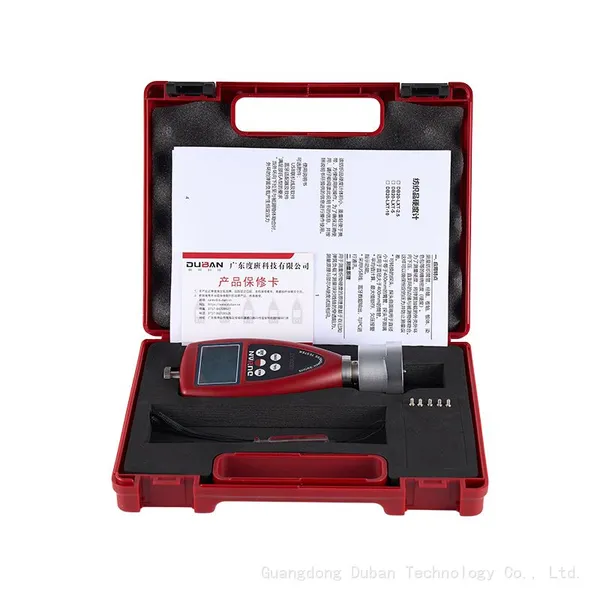

Standard AccessoriesMain Unit Carrying Case Operation Manual
Optional AccessoriesUSB Data Cable with Software Bluetooth Data Adapter with Software Meets requirement of ShoreA Spring load of outer ring to create constant pressure when outer ring is pulled down to red marking
