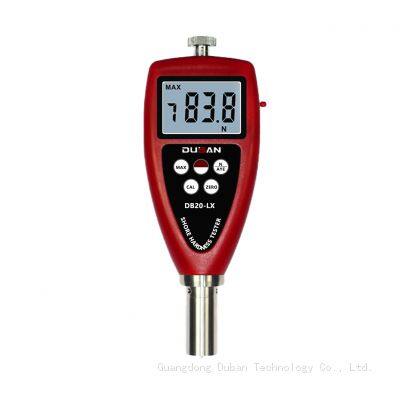

Shore Hardness Tester Series DB20-LX

• 【Product Description】

  Shore Hardness Tester DB20-LX series including type(A, B, C, D, E,AO, O, DO, OO,OOO),Model complete,with different probe size,

  Use for different measured objects and Hardness value, to meet different request for kinds of material hardness measure.







  【product feature】

  *Integrated design, small volume, light weight, simple structure, easy to use, Intuitive readings and automatic shutdown function.

  *With low battery alarm indicator & average value calculation function.

  *With metric and imperial conversion.

  * Auto switch off and manual shutdown.

  * Brovide “Bluetooth ™ data output” choice.




  【Product Parameter】


  Display		LCD Display
  Resolution		1 µm (0 . 1 mils)
  Relative Humidity		No more than 85%
  Range		0 µm ~ 750µm/(0mils to 29 .5mils)
  Measurement Speed		>30 (readings per minute)
  Accuracy		±5% or ±5 µm (whichever is the greater)
  Operating Temperature		0 ° C~ 50 ° C
  Operating Humidity		＜ 80%RH
  Power Supply		2x1 .5vAAA
  Size		176x63x25 mm
  Weight		310 g   ( Not included Batteries)




  Standard Accessories			Host
  			Test block
  			Carrying Case
  			Operation Manual
  Optional Accessories			USB Data Output
  			RS-232 Data Output
  			Bluetooth   Data Output
  			Shore Hardness Tester Test Rack




  【Product Model Information】

  Model

  Indenter

  Typical Examples Of Materials Tested

  Hardness   Values

  A

  0 .79 Truncated (frustum) cone

  Soft vulcanized rubber, natural rubber,nitriles ,thermoplastic elastomers , flexible polyacrylics and thermosets , wax , felt , and leathers .

  20~90A

  B

  R0 . 1Cone

  Moderately hard rubber, thermoplastic elastomers, paper products , and fibrous materials .

  Above 90 A Below 20 D

  C

  0 .79 Truncated (frustum) cone

  Medium-hard rubber, thermoplastic elastomers , medium-hard plastics and thermoplastics .

  Above 90 B Below 20 D

  D

  R0 . 1Cone

  Hard Rubber,thermoplastic elastomers , harder plastics , and rigid thermoplastics .

  Above 90 A

  DO

  R1 .2 Spherical radius

  Moderately hard rubber, thermoplastic elastomers , and very dense textile windings .

  Above 90 C Below 20 D

  E/AO

  R2 .5 Spherical radius

  Hard sponge , EVA

  Above 90 DO Below 20 A

  O

  R1 .2 Spherical radius

  Soft rubber, thermoplastic elastomers , very soft plastics and thermoplastics , medium-density textile windings .

  Below 20 DO

  OO

  R1 .2 Spherical radius

  Extremely soft rubber, thermoplastic elastomers , sponge , extremely soft plastics and thermoplastics , foams , low-density textile windings .

  Below 20 O

  OOO

  R6 .35 Spherical radius

  Extremely soft rubber, thermoplastic elastomers , sponge , extremely soft plastics and thermoplastics , foams , low-density textile windings .

  Below 20 OO

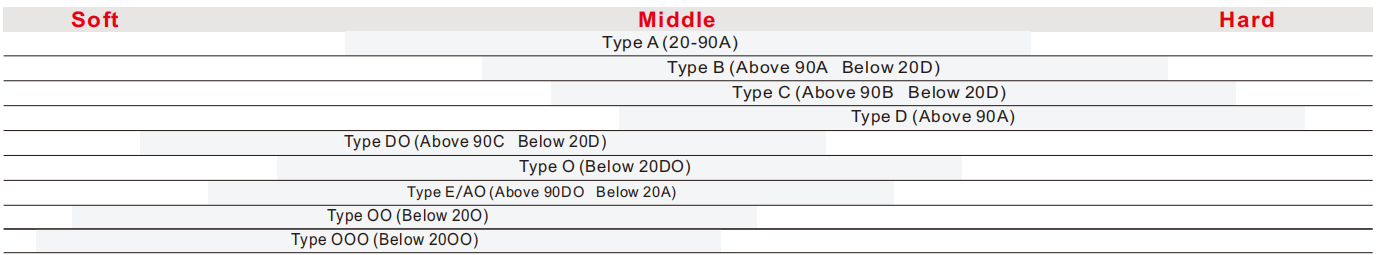

   【 Product Durometer Selection】

【Product Accessories】
