Help CenterChina Super Sheng Multi Layer Ultra Large Size Circuit Board PCB
Related Products
-
FR-4 Ultra-thin Transparent Single Double Multi-layer Circuit Board, Transparent Circuit Board, Transparent PCB, Transparent FPCNegotiableMOQ: 1 Blade -
Multi Layer Transparent FR-4 Circuit Board,Double Layer Transparent Circuit Board PCB,NegotiableMOQ: 1 Blade
-
Thick Copper PCB for New Energy Vehicles,Thick Copper PCB for Energy Storage Power SupplyUS$ 12.5 - 25MOQ: 50000 Sets
-
Double-layer Copper Based PCB,Thick Copper PCB for Energy Storage Power SupplyUS$ 12.5 - 25MOQ: 50000 Sets
-
Thick Copper Aluminum Based Circuit Board PCB,Thick Copper PCB for Energy Storage Power SupplyUS$ 12.5 - 25MOQ: 50000 Sets

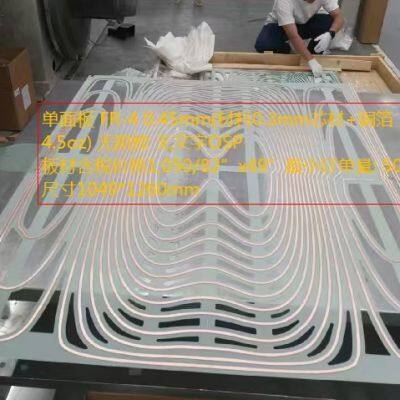

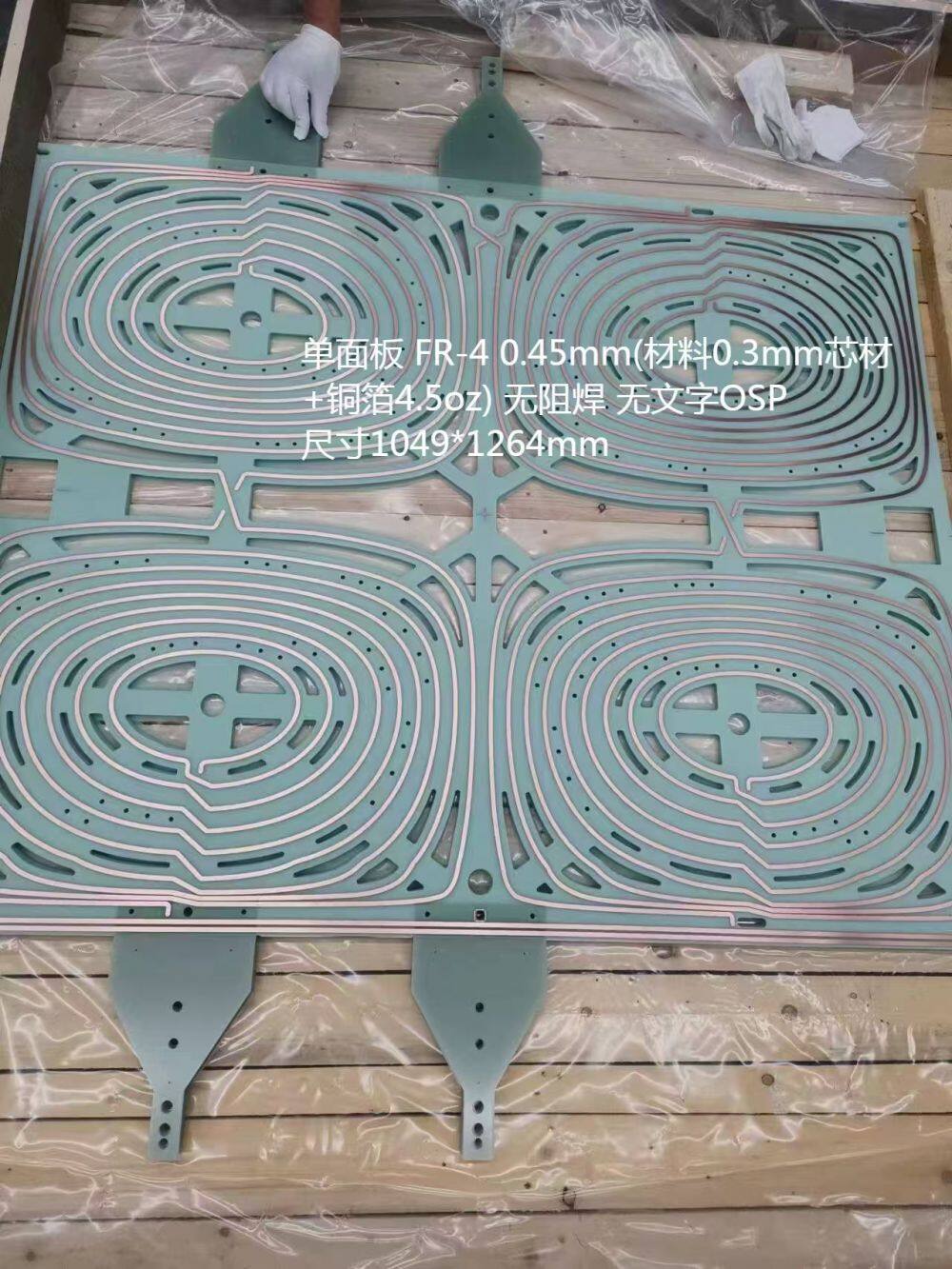

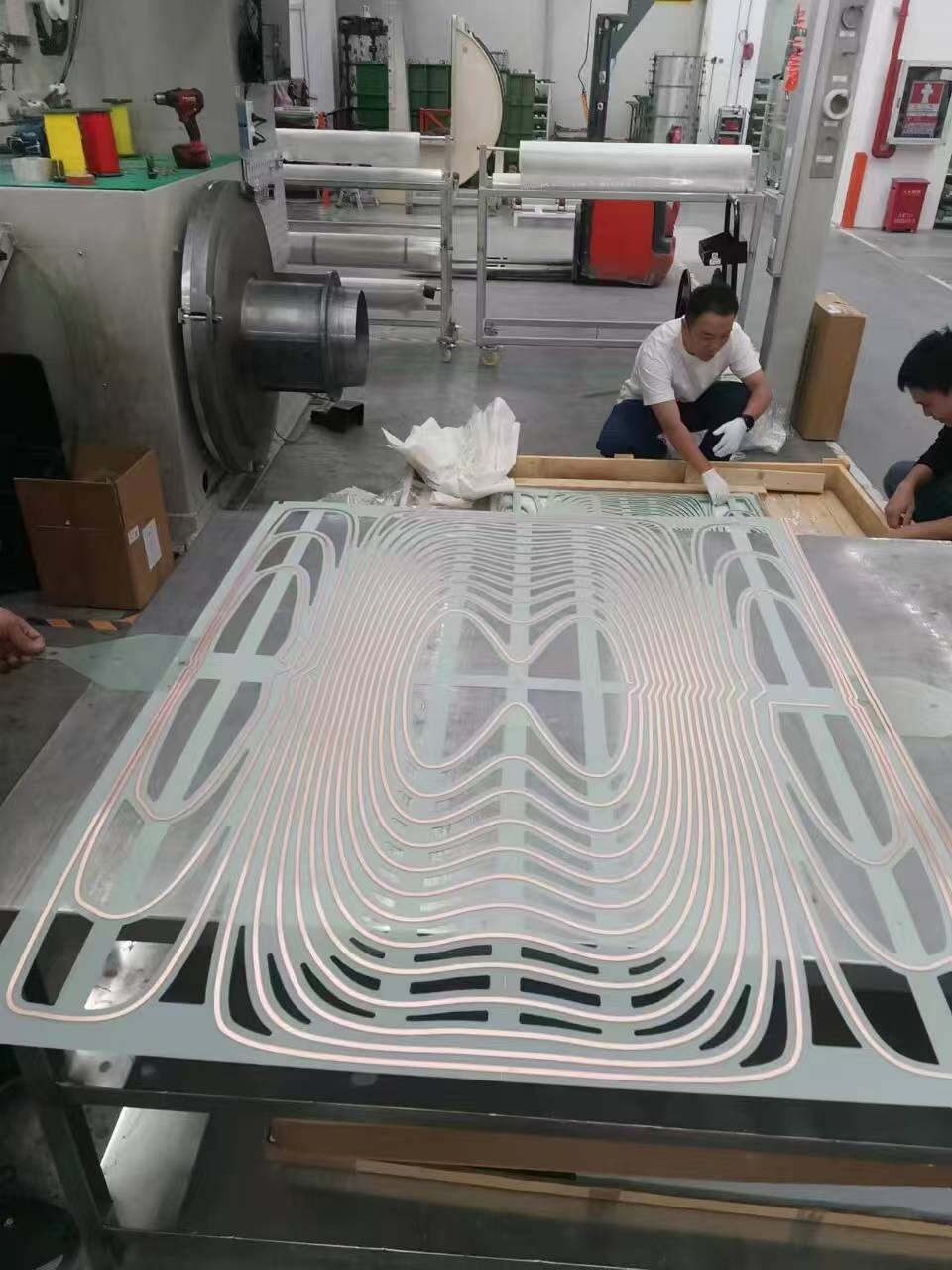

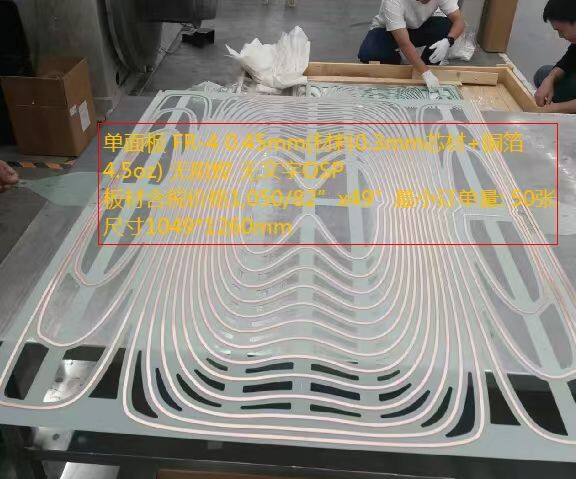

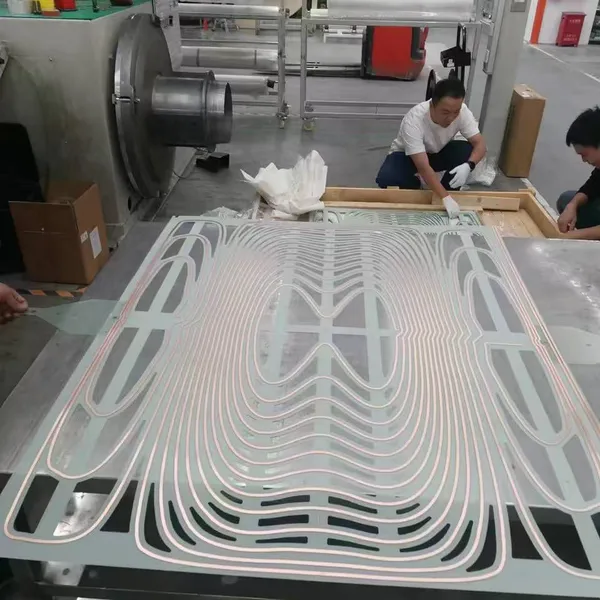

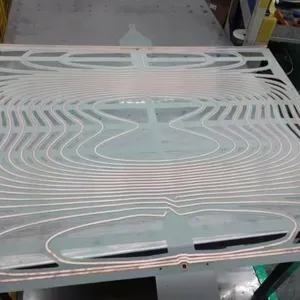

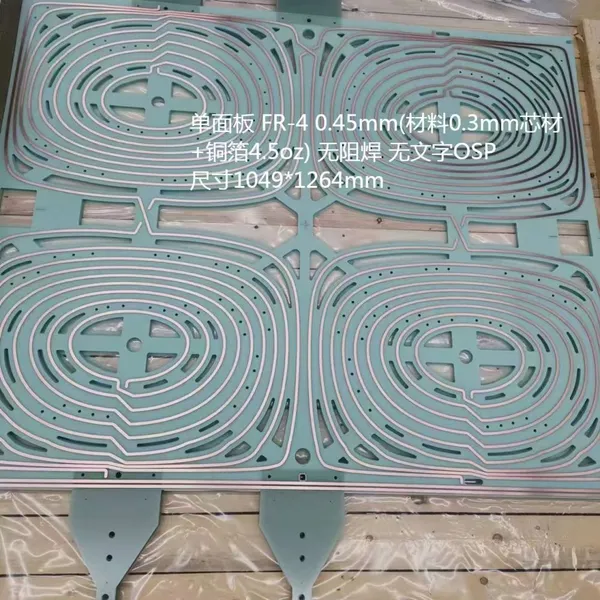

Single layer large-size measuring 3 meters in length and 1.1 meters in width, without holes, with a minimum line width and spacing of 0.25mm or more
Single layer large-size with a length of 2.5 meters, a width of 1.1 meters, a minimum hole of 0.50mm, and a minimum line width and spacing of 0.25mm or more
Double layered large-size with a length of 2.2 meters, a width of 1.1 meters, a minimum hole of 0.50mm, and a minimum line width and spacing of 0.15mm or more
Multi layer large-size with a length of 1.8 meters, a width of 1.1 meters, a minimum hole of 0.50mm, and a minimum line width and spacing of 0.15mm or more
1、 Advantages of specialized large-sized equipment
1.1. CNC drilling equipment (2600 * 1500mm)
1.2. Fully automatic screen printing machine: 2600 * 1200mm
1.3. Overall width dimension of the polishing machine: 2600 * 1200mm
1.4. Overall width dimension of electroplating process tank equipment: 2600 * 1350Mm
1.5. Equipment width dimension for etching processing: 1250mm
1.6. Reasonable overall width dimension of compression equipment: 2180 * 1200mm
1.7. Total width dimension of laser detection equipment: 2100mm * 1150Mm
1.8. Total width dimension of AOI equipment: 2600 * 1200mm
1.9. Total width dimension of testing machine equipment: 2600 * 1200mm
1.10, V-cut equipment width dimension "1300mm
1.11. Overall width dimension of OSPF device: 1250mm
1.12. Equipment size for the gold sinking production line: 1650 * 1150mm
1.13. Equipment size for electric nickel gold production line: 1350 * 1230Mm
1.14. Raw packaging equipment: 1600 * 1150Mm
1.15. Welding paste printing and packaging equipment size: 2500 * 1200mm
1.16. SMT equipment width dimensions: 1700 * 1170mm;
1.17. Reflow soldering furnace equipment size: 1700 * 1150 meters
1.18. Roll to roll punching, roll to roll punching machine, roll to roll glass film, roll to roll polishing, roll to roll reinforcement machine, roll to roll electroplating process, roll to roll copier, roll to roll etching processing line, AO1 on roll to roll line, roll to roll fully automatic punching, roll to roll automatic SMT (finished roll to roll guarantee 100 meters * special size width 1100mm, normal width 250mm, 500mm)
2.15: Equipment size for electric nickel gold production line: 1400 * 1200mm
2.16: Vacuum preservation equipment: 1300 * 1200mm
2.17: Solder paste equipment size: 2100 * 1100mm
2.18: SMT equipment width size: 1600 * 1150Mm
2.19: Reflow soldering furnace equipment size: 1600 * 1150mm
2.20: Finished board thickness 0.12-10.0Mm ± 10% 2.21: Four line inspection value ± 10%, size 1700 * 1200mm2 2.22: E-SET 100% testing
2.23: Laser inkjet printer 2500 * 1200mm
