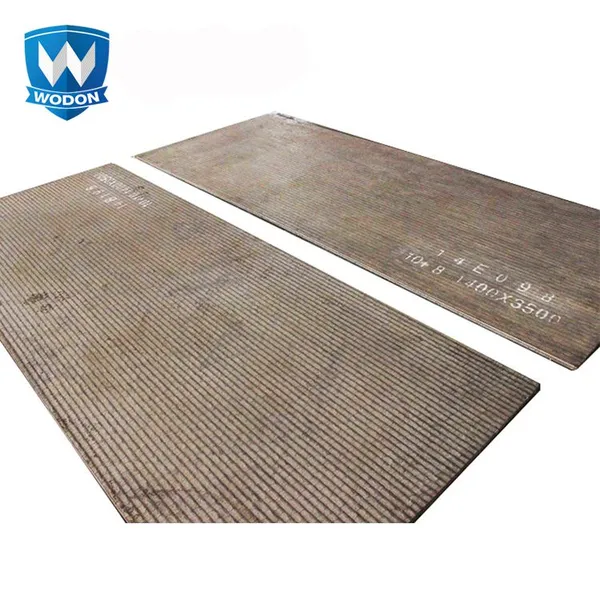

Wodon Wear Resistant Chromium Carbide Hardened Steel Sheet

Wodon chromium carbide hardened steel plate with super wear resistance

1. Wear resistant steel plate:

Medium/low carbon steel+abrasion resistant layers→wear resistant steel plate with metallurgical bonding
(Q235/Q345B+Chromium Carbide overlay→wear resistant composite plate with Submerged arc or Open arc welding)

2. Process:

All kinds of Liner are made of wear resistant steel plate by cutting, bending, punching, bolting and welding.

According to customer's drawings.

3. Standard size: max. 2400*4000 mm without split joint, Customer's Requirement

                            Open arc welding plate : 1.4 m*3.4 m, customized

4. Certification: ISO 9001: 2008

5. Detail:

The overlay alloy has a high amount of chromium carbide hard particles. These particles are distributed evenly throughout the layer, creating a strong microstructure. The hardness is HRC 55~65 and depends on the overlay's thickness.

Jiangsu Wodon Wear Resistant Material Co., Ltd is a company which is specialized in researching and developing wear resistant material. The company was founded in 2014. Now we have more than 200 employees, including more than 50 R&D staffs. Our company's registered capital is 5 million USD with an annual output of 9000 tons welding wires and 90000 square meters wear plate.

With numerous experienced technicians and excellent engineers, our product quality has improved constantly. Since company established, we are adhering to professional development road and win the market with the leading technological level, the excellent product quality and the integrative service concepts. We keep a long-term cooperation with Beijing University of technology, Iron and Steel Research Institute, Beijing Electric Power Equipment Research Institute etc.

Jiangsu Wodon main products: wear plates, wear plate welding wires, coal grinding roller welding wires, vertical cement mill welding wires, squeeze roller welding wires, roller welding wires etc. We have independent intellectual property right, multiple patents, professional team for researching and debugging, providing one-stop services for customers.

Jiangsu Wodon products are widely used in many industries, for example: power, iron and steel, cement, glass, mining, coal processing, metallurgical machinery, engineering machinery, loading machinery, port transportation etc. Wear resistant plate is far ahead of other similar products on the market in many ways, such as chemical composition, microstructure, hardness, wear resistance performance, flatness etc. Our wear plate can greatly extend maintenance time, thereby reducing maintenance cost in the practical application.

1. The overlay chemical composition is the key

The main ingredients of Wodon plates are C: 3.0~5.0% and Cr: 25~40%. This chemical proportion results in a large amount of prime chromium carbide (Cr7C3) hard particles. The micro-hardness (up to HV1800) of these particles throughout the layer will guarantee a super wear resistant surface.

Wear resistance test:

Test equipment: Quartz sand rubber wheel abrasion test machine.

Conditions: a) choosing same dimension specimens for different materials and wear plate producers

                      b) put them under the same wearing working conditions in our testing equipment.

                      c) 45 minutes for each specimen.

The blow Test results show that the life span of Wodon wear plate is 2.5 times higher than domestic wear plates and 1.5 times than imported ones.

2. Chromium carbide microstructure

The wear resistance of wear plate depends mostly on the hardness, shape, size, amount and distribution of the chromium carbide hard particles.

As you can check on the picture, the prime chromium carbide (Cr7C3) volume fraction on the microstructure is above 50%

3. Bonding strength between the overlay and base plate

The overlay and base plate are very well bonding. The overlay will penetrate into base plate about 0.8 mm~ 1.5 mm, reaching up to 350 Mpa in our tests.

We have our own Quality Inspection Technology Department and the team are made of many experience exports with material science bachelor-degree and the leaders with material science master-degree. In the pictures you can also see our equipment in our laboratory. Our inspection team make regular testing on raw material, production process and our products according our company's strict policy.

In our Laboratory there are many equipments to test our products. Portable Spectrum can test easily the chemical composition of wear plate surface . We also bought a new Spectro MAXx (a desktop spark direct reading spectrometer) to read the chemical composition directly from the powder.

We have a series of metallography experiment instruments, so the metallurgical microstructure can be analysed. The chromium carbide volume fraction on the microstructure is above 50%.

We use Rockwell hardness tester to test small sample from our wear plate. The test result are very accurate. We also have portable ultrasonic hardness and thickness testers to test easily the hardness and thickness of wear parts on the scene.

The desktop Rockwell hardness tester can very accurately measure the hardness of small samples

The portable ultrasonic hardness tester can easily measure the surface hardness of wear parts on the scene.

The portable spectrum can easily test the chemical composition on the scene.

The metallurgical microscope can test the mircostructure and calculate the chromium carbide volume fraction easily and  accurately.

The portable ultrasonic thickness meter can easily test the thickness of wear plate or work work piece.

This model of test machine is not any standard, but it is mainly for contrast reference to test the wear resistance.

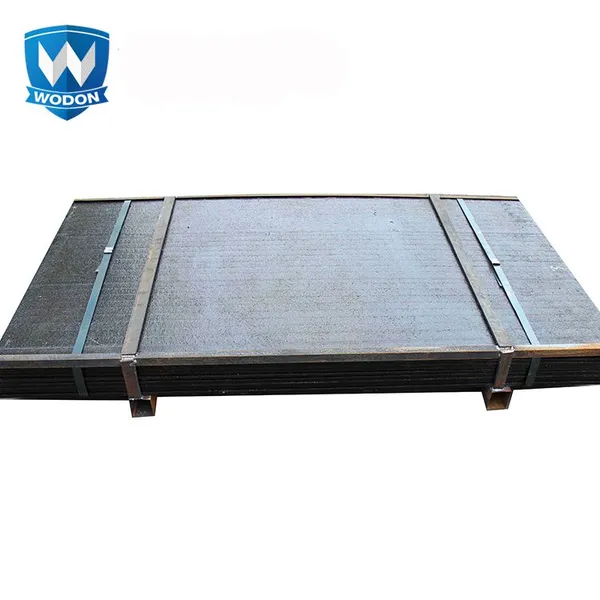

Packaging: Steel pallet, Non fumigation pallets,Customized
Packaging Size: 1.4*3.4, 1.4*.3.0, 1.4*3.5, 2.1*3.5, customized.
Delivery Detail: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Are you trading company or manufacturer ?
A: We are manufacturer with more than 3 factorys, our own sales department and our own inspection technology department.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.

Q: What is your terms of payment ?
A:30% T/T in advance, balance against copy of BL.
    also, FOB, CIF, CFR all are available for your product.

If you have another question, please feel free to contact us as below:
