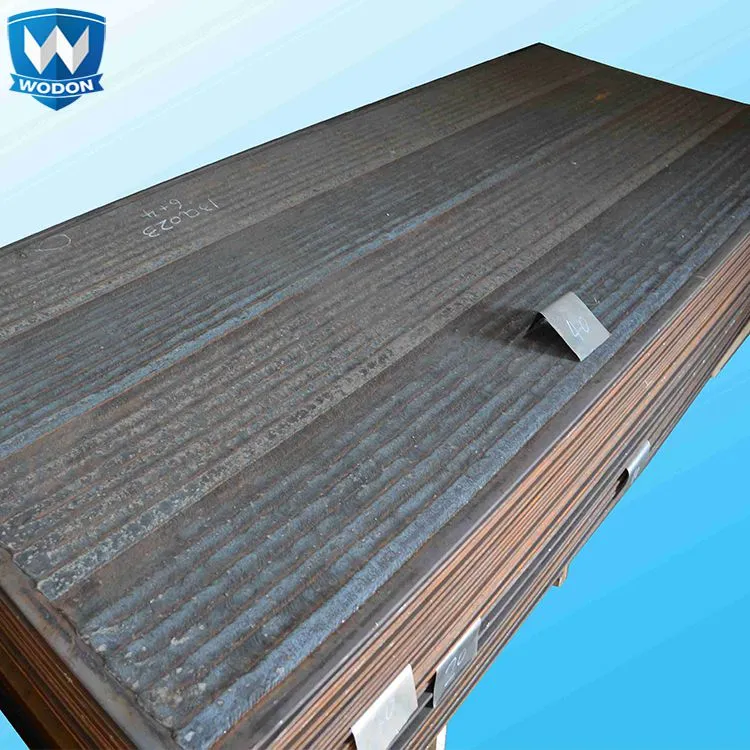

Help CenterWodon Factory Chromium Carbide Overlay With High HRC 58-65 CCO Wear Plate for Mining, Cement Plant or Power Plant
Related Products
-
Factory Manufactured Wheel Excavator Bucket Liners Wear Plate and Cutting Edges Mobile TypeUS$ 500 - 500MOQ: 1 Piece -
10+10 Thickness Wear-Resistant Clad Plates for Mining Excavators Bucket Wheel Excavator With Bosch Rexroth Hydraulic CylinderCHF 500 - 500MOQ: 1 Piece
-
Wodon Super Wear-Resistant Steel Plate With Chromium Carbide Overlay Sheet or Coil Type for Cutting Processing ServicesCHF 300 - 300MOQ: 1 Square Meter
-
Chrome Carbide Wear Resisting Plate High Wear Steel Plate Wear Liner Platebimetallic Wearable Lining Plate Bucket ExcavatorCHF 300 - 300MOQ: 1 Square Meter
-
WODON High Wear Resistance Truck Inner Liner PlateUS$ 150 - 150MOQ: 1 Square Meter

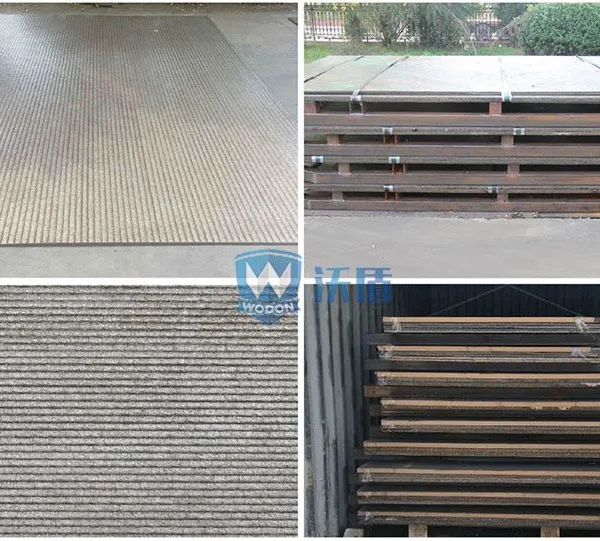

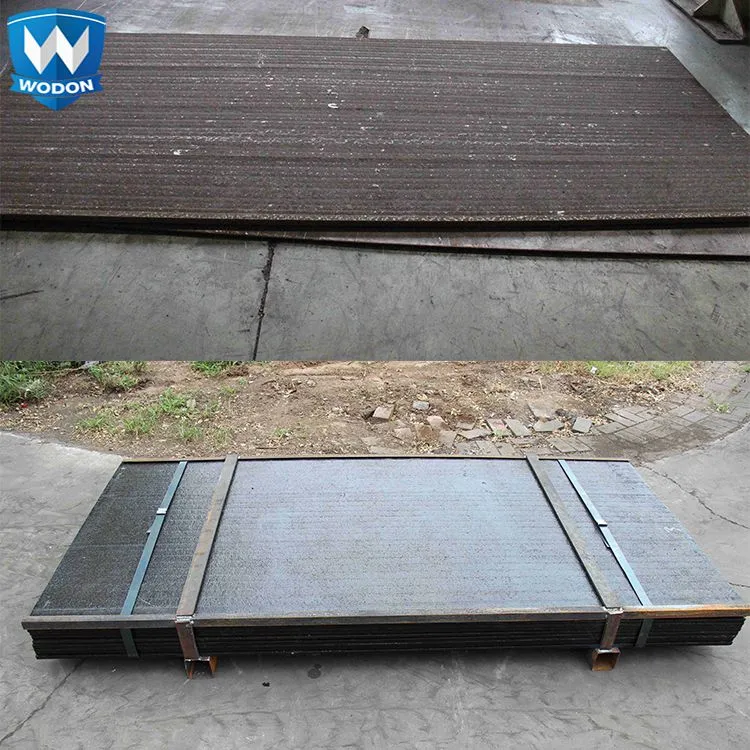

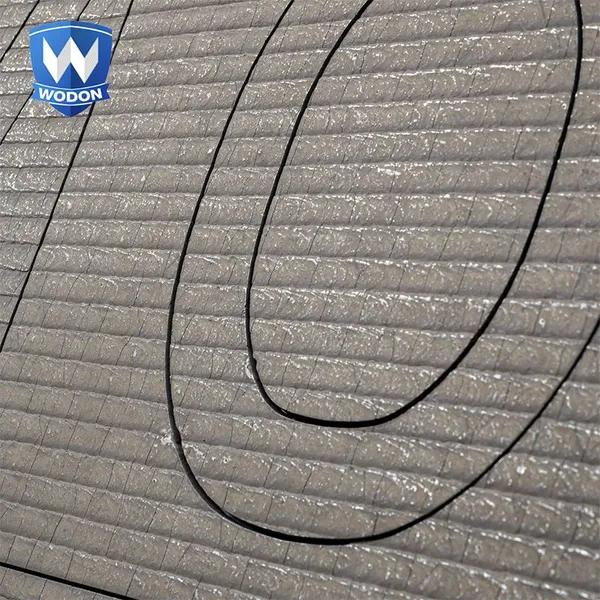

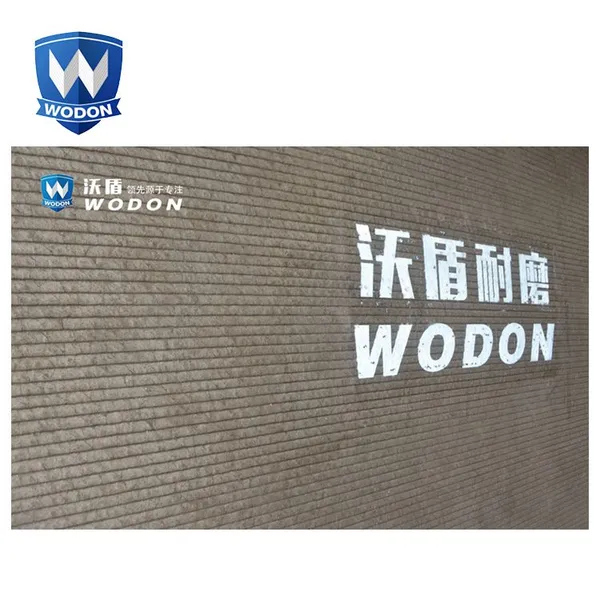

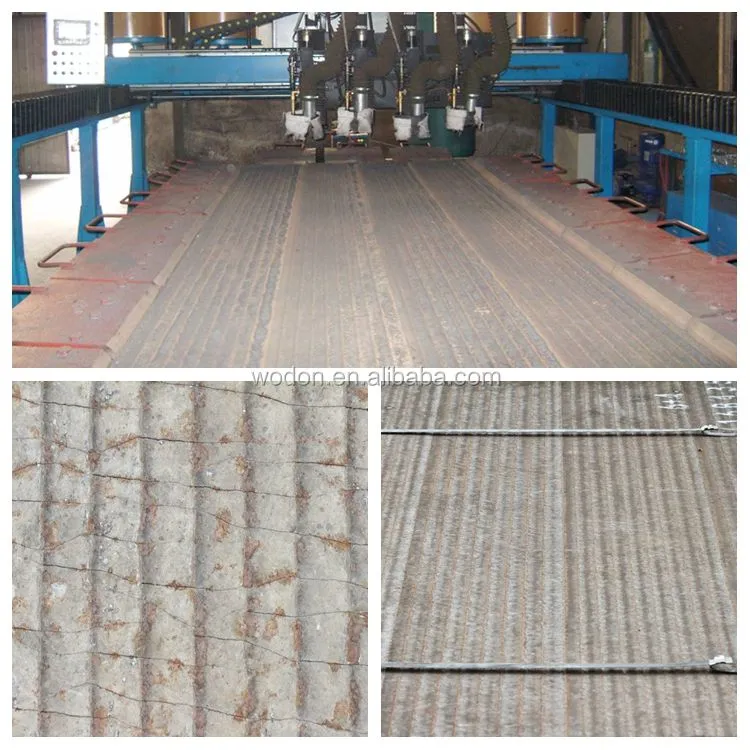

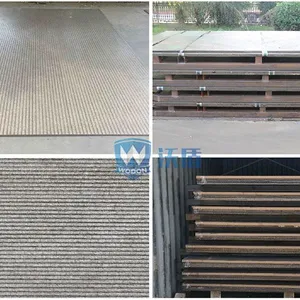

Wodon wear resistant steel plates are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles. These particles are distributed evenly throughout the layer, creating a strong microstructure. The hardness is HRC 58~65 and depends on the overlay's thickness.
The main ingredients of Wodon plate are C (%): 3.0~5.0 and Cr (%): 25~40. This chemical proportion results in a large amount of Cr7C3 chrome carbide hard particles. The micro-hardness (up to HV1800) of these particles thoughout the layer will guarantee a super wear resistant surface.
The overlay and base plate are metallurgical bonding. The overlay will penetrate into base plate about 0.8~1.8 mm, reaching up to 350 Mpa in our tests.

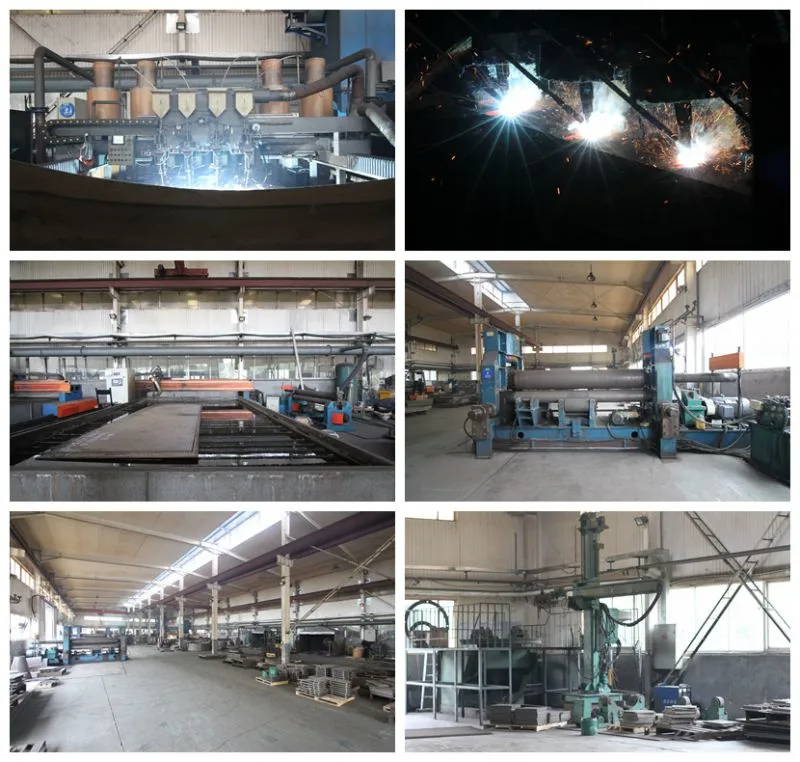

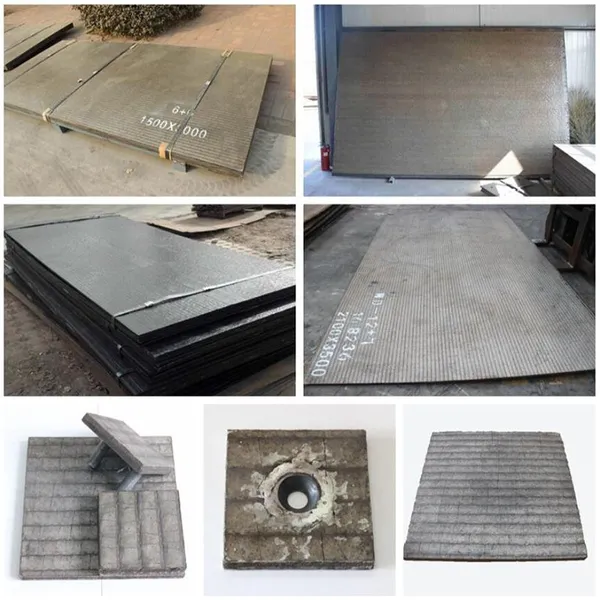

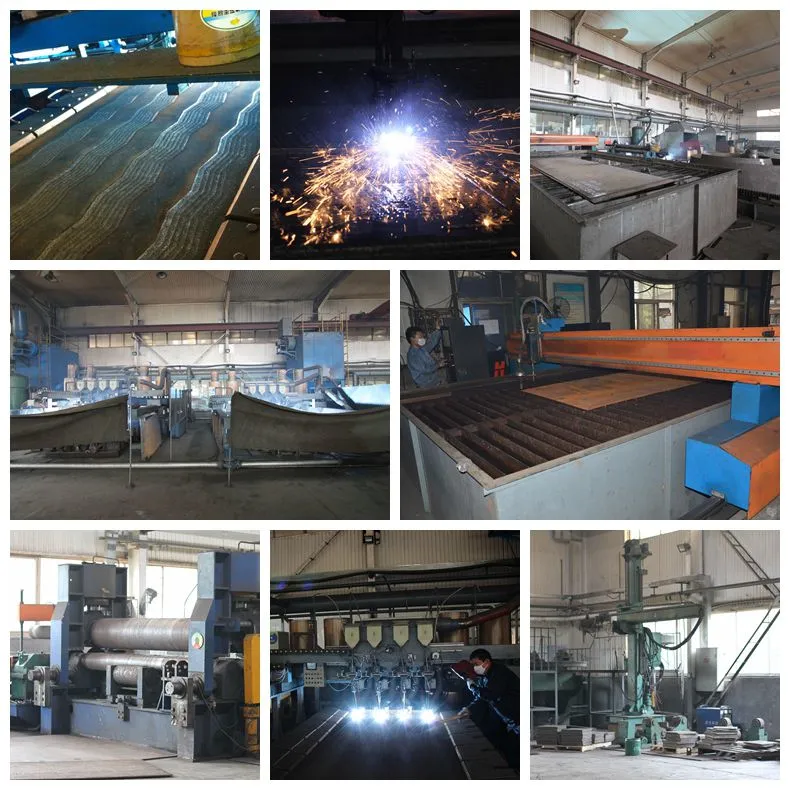

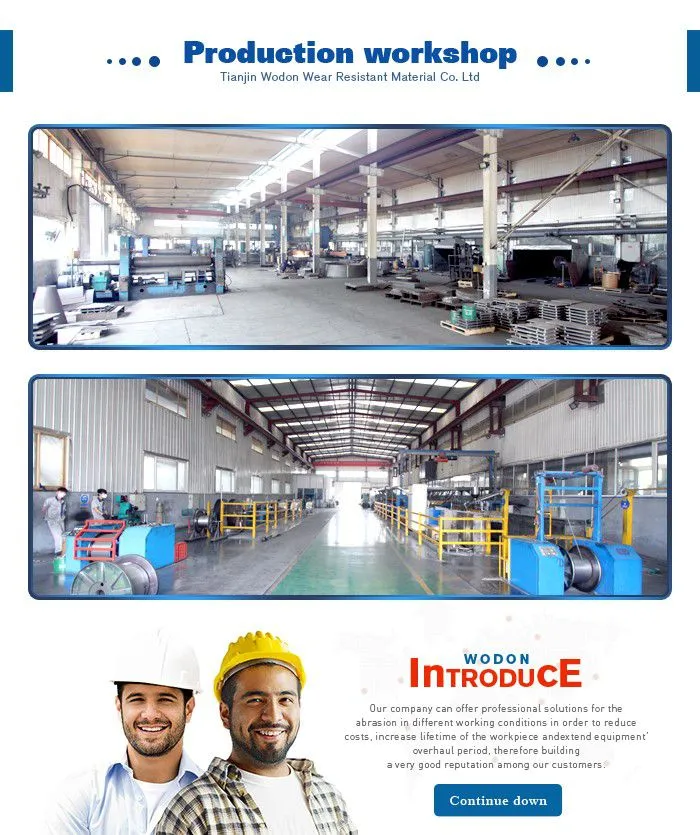

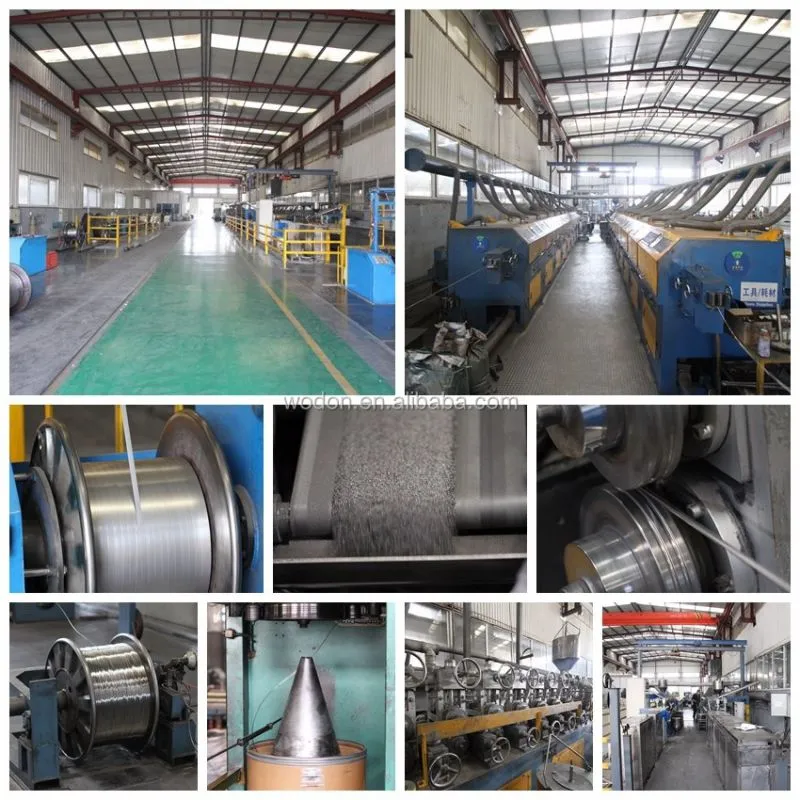

Wodon wear plates are used to make many complex wear parts to be positioned in high wear places. We have several equipment to transform our plates: six of CNC automatic plasma cutting machine, 4 multi functional bending machines and pressing machines, with high processing capacity operated by engineers and technical experts. We can provide wear plate cutting, bending, punching and welding according to customer's drawings.
Wodon wear resistant steel plates are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles. These particles are distributed evenly throughout the layer, creating a strong microstructure. The hardness is HRC 58~65 and depends on the overlay's thickness.
The main ingredients of Wodon plate are C (%): 3.0~5.0 and Cr (%): 25~40. This chemical proportion results in a large amount of Cr7C3 chrome carbide hard particles. The micro-hardness (up to HV1800) of these particles thoughout the layer will guarantee a super wear resistant surface.
The overlay and base plate are metallurgical bonding. The overlay will penetrate into base plate about 0.8~1.8 mm, reaching up to 350 Mpa in our tests.
Wodon wear plates are used to make many complex wear parts to be positioned in high wear places. We have several equipment to transform our plates: six of CNC automatic plasma cutting machine,4 multi functional bending machines and pressing machines, with high processing capacity operated by engineers and technical experts. We can provide wear plate cutting, bending, punching and welding according to customer's drawings.
Wodon wear resistant steel plates are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles. These particles are distributed evenly throughout the layer, creating a strong microstructure. The hardness is HRC 58~65 and depends on the overlay's thickness.
|
Product name |
WODON manufactured bimetallic wear plate with abrasion impact and heat resistance |
|
Material |
Q235/Q345+Chromium carbide overlay alloy |
|

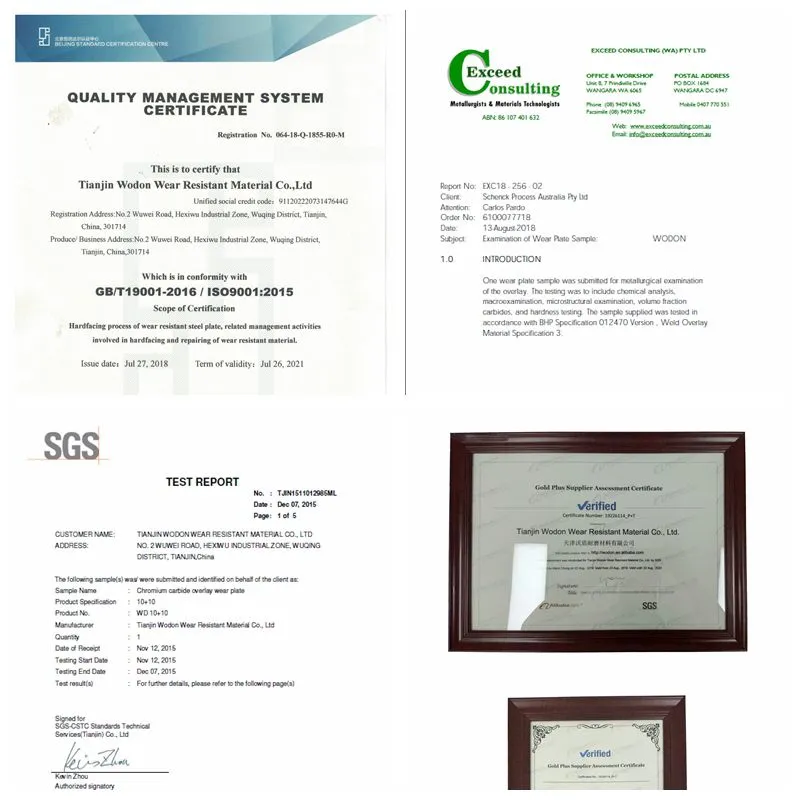

Certificate |
ISO9001:2008 |
|
Chemical composition |
C: 3.0~5.0 % Cr: 25~40 % |
|
Microstructure |
Chromium carbide hard particles volume fraction above 50 % The maximum hardness of chromium carbide is HV 1800 |
|
Wear Resistance |
Our test shows that the wear resistance of Wodon plate is 30 times higher than low carbon stell and 12 times than heat treated steel |
|
Impact resistance |
Wodon wear plates can withstand medium impact |
|
Temperature resistance |
Wodon wear plates can withstand temperatures up to 600 ℃. We can customize high temperature resistance wear plates according to customer's requirements which can withstand maximum terperatures up to 900 ℃ |
|
Flatness tolerance |
± 3 mm/m |
|
Thickness tolerance |
Uniform overlay thickness, with tolerance within 0~0.5 mm |
|
Surface treatment |
hardfacing, cladding, open arc or submerged arc welding |
|
Standard sizes
|

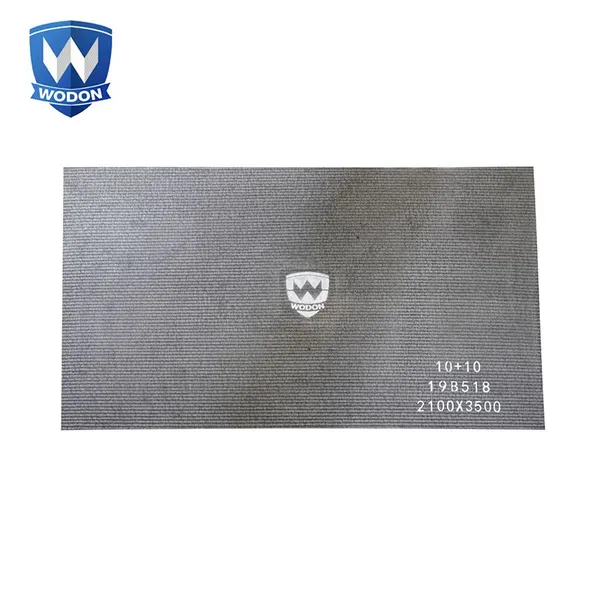

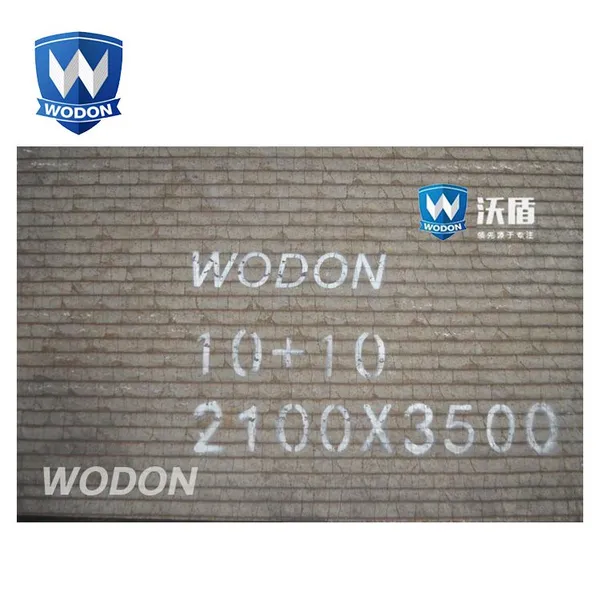

Open arc welding: 1400*3400 mm, customized Submerged arc welding: 1400*3000 mm, 1400*3500 mm, 2100*3500 mm, customized |
|
The main thicknesses(mm)
|

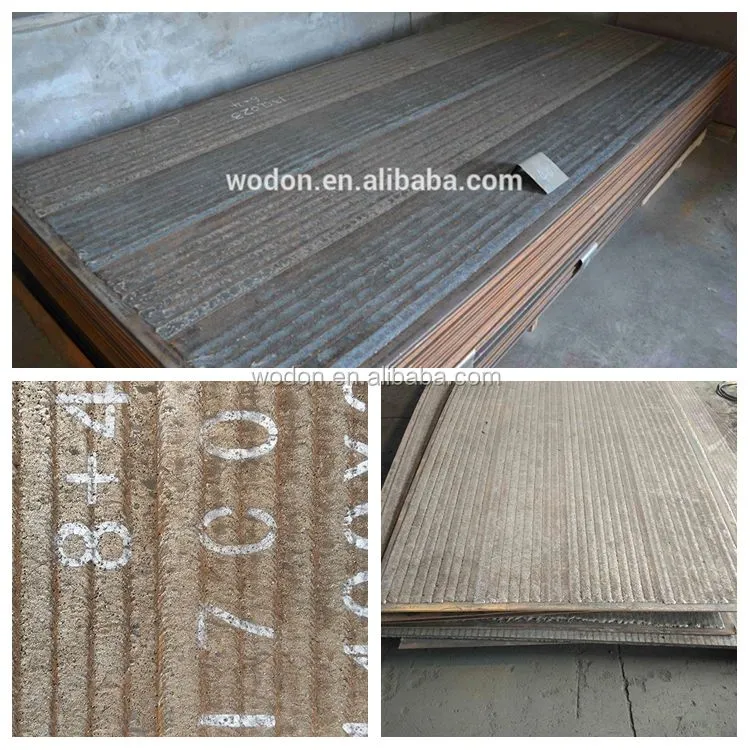

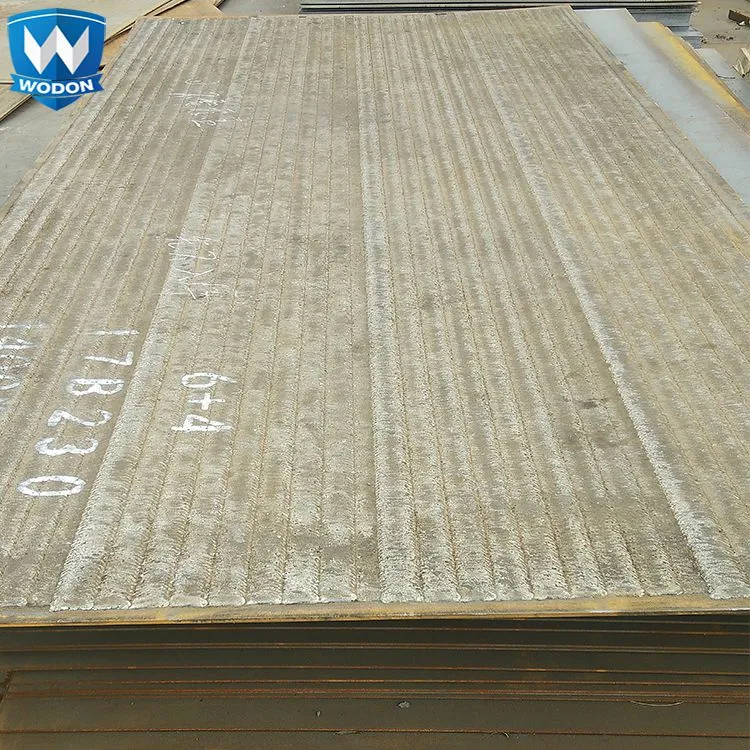

3 on 3, 4 on 4, 5 on 5 4 on 6, 5 on 6, 6 on 6, 8 on 6 4 on 8, 5 on 8, 6 on 8, 7 on 8, 8 on 8 4 on 10, 5 on 10, 6 on 10, 7 on 10, 8 on 10, 9 on 10, 10 on 10, 20 on 10 4 on 12, 5 on 12, 6 on 12, 7 on 12, 8 on 12, 10 on 12, 11 on 12, 12 on 12 6 on 14, 8 on 14, 10 on 14 6 on 16, 8 on 16, 10 on 16 6 on 18, 8 on 18, 10 on 18 5 on 20, 6 on 20, 8 on 20, 10 on 20, 20 on 20, 10 on 30, 10 on 40 Customized |
Q: Are you trading company or manufacturer ?
A: We are manufacturer with more than 3 factories, our own sales department and our own inspection technology department.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance against copy of BL. also, FOB, CIF, CFR all are available for your product.
