High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates

Jiangsu Wodon Wear Resistant New Material Co., Ltd.

1Yr

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates thumbnail-1

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates thumbnail-2

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates thumbnail-3

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates thumbnail-4

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates thumbnail-5

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates thumbnail-6

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates photo-1

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates photo-2

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates photo-3

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates photo-4

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates photo-5

High Hardness 58~65 Hrc Fe-Cr-C Wear Resistance Chromium Carbide Overlaying Steel Plates photo-6

US$ 250 - 250 MOQ: 1 Square Meter

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2014

Annual Export Value:

US$10 Million - US$50 Million

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

product description

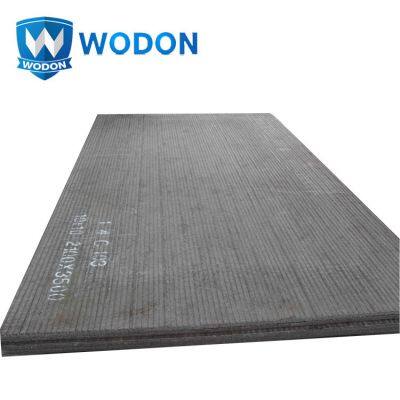

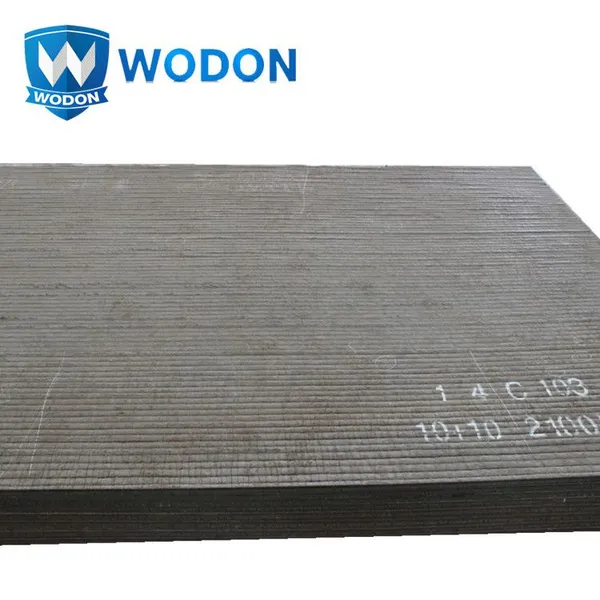

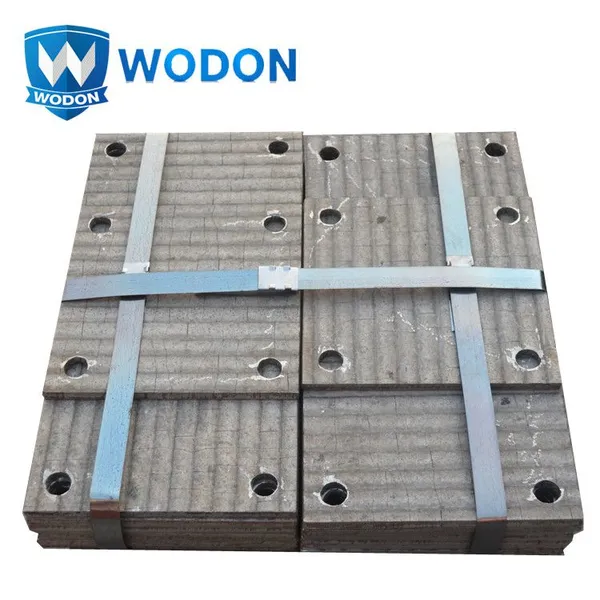

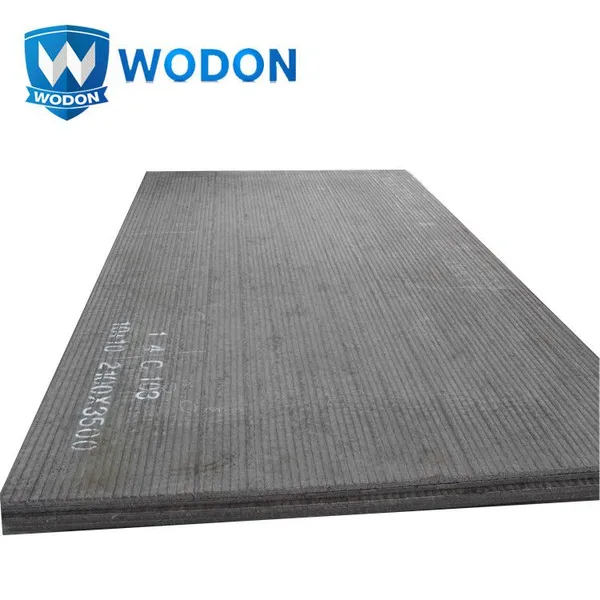

High hardness 58~65hrc Fe-Cr-C wear resistance chromium carbide overlaying steel plates

Product Name	high hardness 58~65hrc Fe-Cr-C wear resistance chromium carbide overlaying steel plates
Material	Q235/Q345+Chromium carbide overlay
Base metal	Q235/Q345 or customized
Hardfacing layer	Chromium carbide overlay
Chemical composition	C: 3.0-5.0% Cr:25-40%
Hardness	HRC56-65
Microstructure	Carbide (Cr7C3)volume fraction above 50%
Wear resistance	High wear/abrasion resistance
Flatness tolerance	±3mm/m
Thickness tolerance	uniform overlay thickness, with tolerance within 0-0.5mm
Impact resistance	Medium
Technology	Hardfacing, open arc welding, submerged arc welding
Plate Size	Open arc welding wear plate: 14003400mm Submerged arc welding wear plate : 14003000mm, 14003500mm, 21003500mm Cusomized sizes
Main thicknesses (base metal+overlayer)	3+3,4+4,5+5,6+4,6+5,6+6,8+4,8+5,8+6,8+7,8+8,10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20,12+4,12+5,12+6,12+7,12+8,12+9,12+1,12+11,12+12, 12+17, 12+25,14+6,14+8,14+10, 14+16,16+6, 16+8,16+10,18+6,18+8,18+10,20+5,20+6, 20+8,20+10,20+20,30+10,40+10, customized thicknesses.
Applications	1. Power Industry: Frozen Coal Cracker, Cyclone Burner Door, Square to Round Transition, Segmented Classifier Cone, Coal Handling Flop Gate, Journal Liner, Turbo Fired Burner, T-Fired Burner Barrel, Split Flame Burner Pant Leg, Raw Coal Mill Feed Pipe, Pressure Frame Wear Plate, Crusher Screen Plate. 2.Mining Industry: Dragline Bucket Liners, Truck Bed Liner Systems, Dozer Blade Liner Systems, Shovel Bucket Liners, Front End Loader Liner Systems, Raw Material Chute, Grader Blade Liner Systems, Rock Crusher Housing, Raw Material Funnel, Square to Round Transition, Classifier Blades, Wheel Loader Liner Systems. 3.Cement Industry: Stationary Classifier Blades, Raw Mill Nozzle, Raw Mill Roller Sweeps, Raw Mill Paddle, Raw Mill Feed Pipe, Raw Mill Classifier Cone, Raw Mill Wall Liners, ID Fan Blade Liners, Replaceable Bucket Liners, Augers, Slurry Transport Pipes, Elevator Bucket Liners. 4.Steel Industry: Coke Injection Line Elbows, Alloy Hopper, Reverse Fan Box, Dust Handling System, High Blast Furnace Coke Screens, Replaceable ID Fan Housing Liners, Wood Pulp Transfer Line, Log Stacker Fork Liners, Auger Flighting, 1/2’’ on 1’’ Mill Feed Chute Liner, Flat Back Elbows, Blow Tank Digester Target Plate.

certificates

Our Certifications

&lt;img style="width: 181.5px; height: 256.64px; margin-top: 0px; margin-left: 0px;" src="///kf/HTB1XEqYNXXXXXaoXFXXq6xXFXXXn/228083755/HTB1XEqYNXXXXXaoXFXXq6xXFXXXn.jpg"&gt;

&lt;img style="width: 181.5px; height: 258.81px; margin-top: 0px; margin-left: 0px;" src="/0/1_625_118466_800_1141.jpg"&gt;

&lt;img style="width: 181.5px; height: 258.81px; margin-top: -3px; margin-left: 0px;" src="///kf/HTB1ypuJNXXXXXX3aXXXq6xXFXXXP/228083755/HTB1ypuJNXXXXXX3aXXXq6xXFXXXP.jpg"&gt;

&lt;img style="width: 181.5px; height: 258.81px; margin-top: -7px; margin-left: 0px;" src="/0/1_764_118082_800_1141.jpg"&gt;

WODON strickly manage and control according ISO management system to assure our products stable performance.

Customer Visits

Comments and feedback:

Good quality and flatness is our first sight. After discussing on their booth, our team think we find a better producer with very good and competitive price and quality. One more important thing is their professional, skilled and young technican team.

The Wodon abrasion and impact wear plate samples consisted of a high chromium white iron deposit on a steel substrate. The hard facing microstructure contained typically a high volume percent of primary carbides. The primary carbide sizes were typically less than 25μm in diameter, which was considered good for hard facings of these types.

La fabrica de Wodon nos ha impresionado por el rigor del control de calidad y la organizacion. Los productos tambien presentaron buena performance en nuestros testes y estamos satisfetchos con la parceria que estamos desarrollando.

Q: Are you able to produce customized chemical composition and dimension?

A: Yes, we could offer special welding wire and wear plate according customers' requirement.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 20~30% T/T in advance, balance against the copy of BOL. Other payment terms are negotiable.

Q: Do you provide after-sales service ?

A: Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer's problems. If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
